599-06619 | 6"FlgN/C SStrimHCO 125# 400cv | Siemens Building Technology

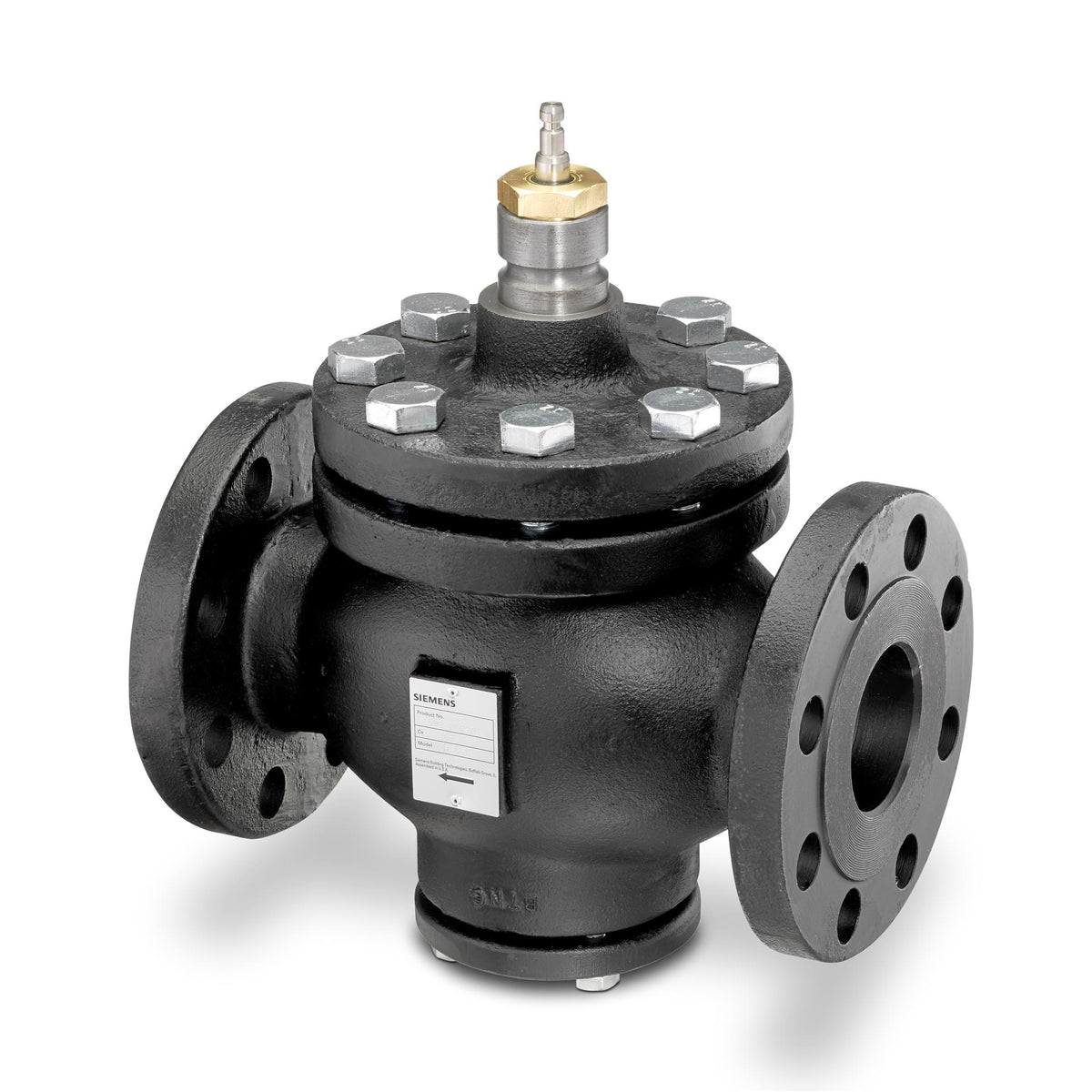

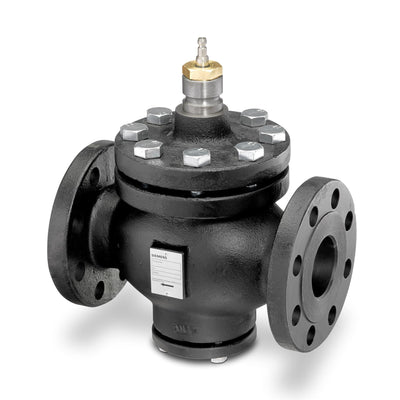

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-06619

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-06619 Documents

Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info

Overview

Details for 599-06619

6"FlgN/C SStrimHCO 125# 400cvThis 6"FlgN/C SStrimHCO 125# 400cv from Siemens Building Technology is a durable and reliable solution for various industrial applications. Crafted with precision, this product ensures optimal performance and efficiency.Shop our HVAC supply store today for unbeatable prices and swift delivery on all your industrial needs!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: Flanged
Connecting thread: Universal bonnet for direct-coupled actuators
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
DN: 150
Leakage rate: ANSI Leakage Class IV
Leakage rate, class: ANSI Leakage Class IV
Rangeability: 100:1
Medium temperature: 20…250 ºF
Stroke: 40 mm, 1.5 " mm
Stroke, mm: 40 mm
Dimensions (W x H x D): 17.76 x 20.43 x 10.98 in
