599-06618 | Flowrite two-way 5-inch high close-off valve. ANSI 125, NC, SS trim. | Siemens Building Technology

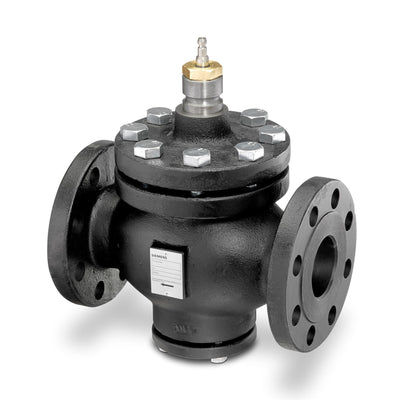

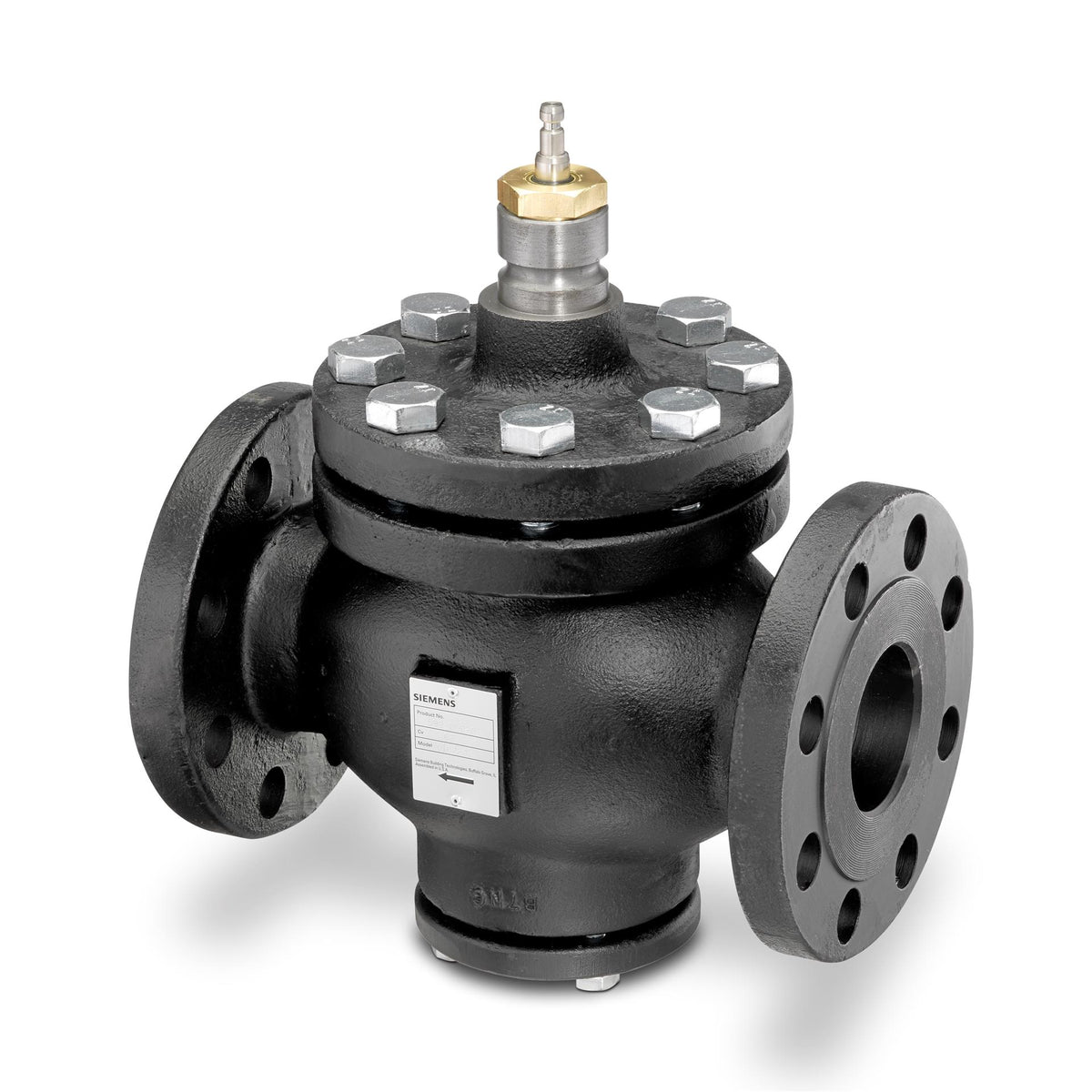

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-06618

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-06618 Documents

Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info

Overview

Details for 599-06618

5" Flg N/C SStrim125# HCO 250cv SIEMENS BUILDING TECHNOLOGY The Siemens Building Technology part with SKU 599-06618 is a 5" Flg N/C SStrim125# HCO 250cv. Our HVAC supply store is the best place to buy Siemens Building Technology products. We offer the best prices and fast shipping on all of our products. Shop now and get the best deals on Siemens Building Technology products!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: Flanged
Connecting thread: Universal bonnet for direct-coupled actuators
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
DN: 125
Leakage rate: ANSI Leakage Class IV
Leakage rate, class: ANSI Leakage Class IV
Rangeability: 100:1
Medium temperature: 20…250 ºF
Stroke: 40 mm, 1.5 " mm
Stroke, mm: 40 mm
Dimensions (W x H x D): 15.75 x 18.66 x 10 in
