Brand: Siemens Building TechnologySKU: 599-06613

List Price
~~$7,293.00~~

Web Price:

$2,430.95

Availability: This product is currently available to purchase

This item ships via FREIGHT

Special Notes

The product is not cancelable or returnable unless found defective

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

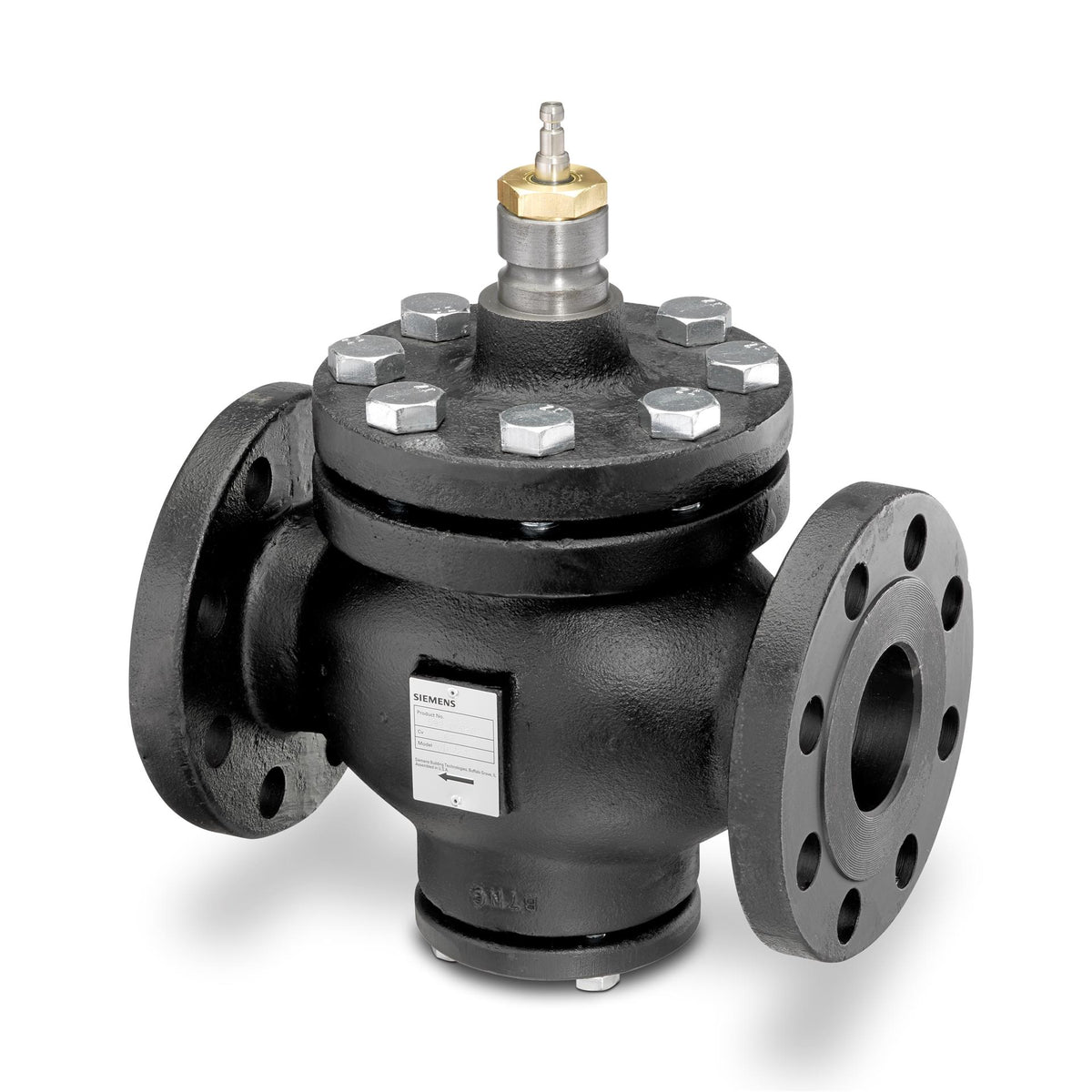

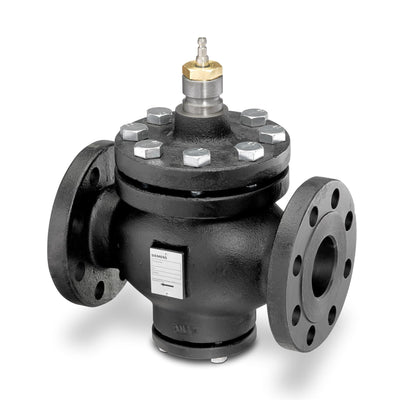

599-06613 | Flowrite two-way 5-inch high close-off valve. ANSI 125, NO, SS trim. | Siemens Building Technology

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-06613

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-06613 Documents

Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info

Overview

Details for 599-06613

Enhance Your Industrial Operations with Siemens Building Technology 599-066135" N/O 125# FlgSStrimHCO 250cvThis Siemens Building Technology 599-06613 5" N/O 125# FlgSStrimHCO 250cv is a robust and reliable product designed specifically for industrial applications. Its durable construction ensures long-lasting performance, while its precise operation guarantees accurate and efficient control.Key Features and Benefits:* 5" N/O design for versatile applications* 125# FlgSStrimHCO construction for enhanced durability and corrosion resistance* 250cv power for handling demanding tasksApplications:This Siemens Building Technology product is ideal for various industrial applications, including:* HVAC systems* Manufacturing equipment* Material handling* Processing machinery* Conveying systemsInvest in Siemens Building Technology 599-06613 5" N/O 125# FlgSStrimHCO 250cv today and experience the difference in industrial control and efficiency. Shop now at our HVAC supply store for the best prices and fast shipping!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: Flanged
Connecting thread: Universal bonnet for direct-coupled actuators
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
DN: 125
Leakage rate: ANSI Leakage Class IV
Leakage rate, class: ANSI Leakage Class IV
Rangeability: 100:1
Medium temperature: 20…250 ºF
Stroke: 40 mm, 1.5 " mm
Stroke, mm: 40 mm
Dimensions (W x H x D): 15.75 x 18.54 x 10 in
