599-06610 | Flowrite two-way 2 1/2 inch high close-off valve. ANSI 125, NO, SS trim. | Siemens Building Technology

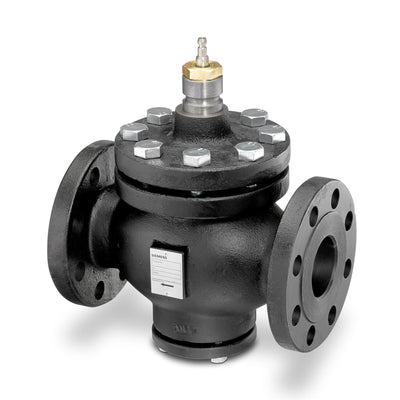

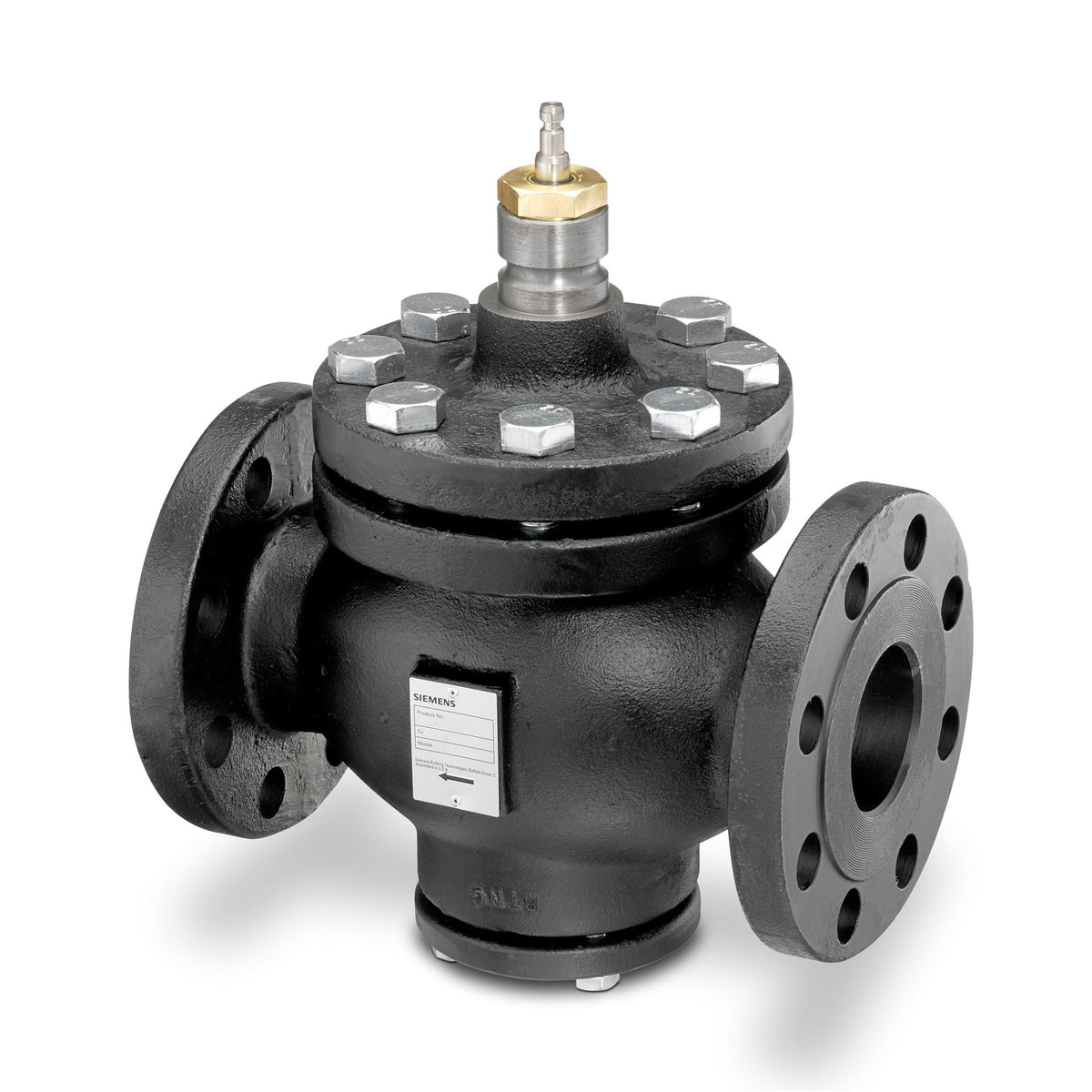

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-06610

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-06610 Documents

Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info

Overview

Details for 599-06610

2.5" FLG N/O SS TRIM 63CV HCO The 2.5" FLG N/O SS TRIM 63CV HCO from Siemens Building Technology is a highly specialized and technical product designed to meet the demanding requirements of industrial engineers and maintenance professionals. This product boasts an array of features and benefits that make it an exceptional choice for various industrial applications. Crafted from premium materials, this 2.5" FLG N/O SS TRIM 63CV HCO ensures exceptional durability and performance in harsh industrial environments. Its robust construction withstands the rigors of demanding applications, providing lasting reliability and minimizing downtime. Our HVAC supply store is your go-to destination for the best prices and fast shipping on industrial products. Trust Our HVAC supply store for all your industrial supply needs.

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: Flanged
Connecting thread: Universal bonnet for direct-coupled actuators
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
DN: 65
Leakage rate: ANSI Leakage Class IV
Leakage rate, class: ANSI Leakage Class IV
Rangeability: 100:1
Medium temperature: 20…250 ºF
Stroke: 20 mm, 0.75 " mm
Stroke, mm: 20 mm
Dimensions (W x H x D): 10.87 x 14.45 x 7.01 in
