599-04322-7 | 599-04322-7, 3/4 PICV, 7 GPM NO | Siemens Building Technology

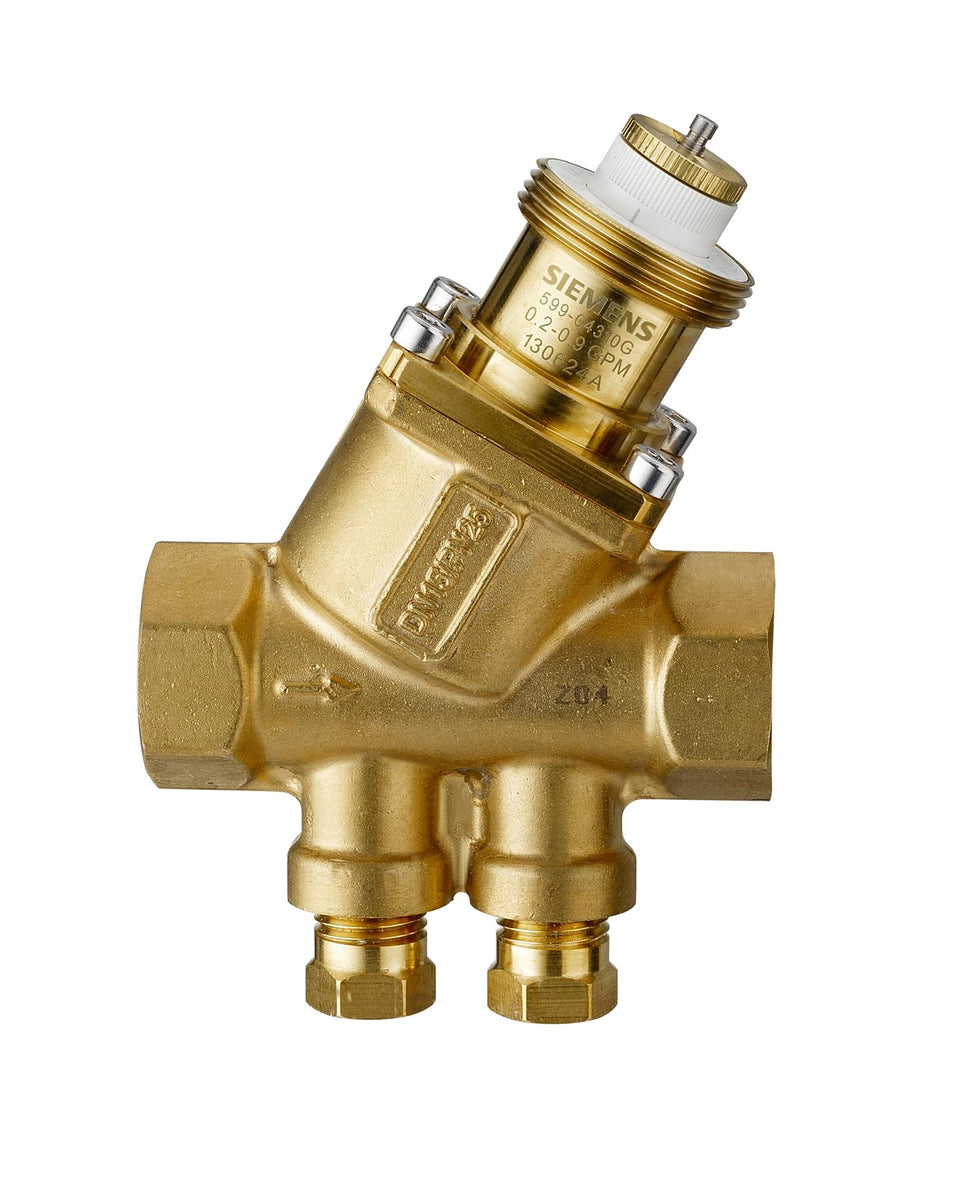

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-04322-7
Documents and manuals
Overview
Details for 599-04322-7
Siemens Building Technology's 3/4" PICV 7 GPM NO (599-04322-7) is an advanced Pressure Independent Control Valve designed to precisely regulate water flow in hydronic systems. Engineered with a robust design, this PICV features a flow capacity of 7 GPM (gallons per minute), ensuring optimal water distribution for various applications. Its pressure independence ensures stable flow rates regardless of system pressure fluctuations, contributing to energy efficiency and system reliability.
Whether you're an industrial engineer or a maintenance professional, our HVAC supply store is your trusted source for high-quality products like this Siemens Building Technology PICV. Our commitment to providing the best prices and fast shipping guarantees that you get the products you need, when you need them. Shop now and experience the difference with our HVAC supply store!
Specifications
- Valve Size
- 0.75 in
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Brass
- Trim Material
- Brass
- Material, inside set
- Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- Max GPM
- 8 gpm
- DN
- 20
- Min GPM
- 1.3 gpm
- Preset GPM
- 7 gpm
- Pressure Class
- ANSI 250
- Leakage rate
- ANSI Class IV (0.01%) @ 100 psi
- Leakage rate, class
- ANSI Class IV
- Rangeability
- ≥ 100:1
- Medium temperature
- 34…248 ºF
- Stroke
- 5.5 mm
- Close-off Pressure
- 200 psi
