599-04322-6.5 | 599-04322-6.5, 3/4 PICV, 6.5 GPM NO | Siemens Building Technology

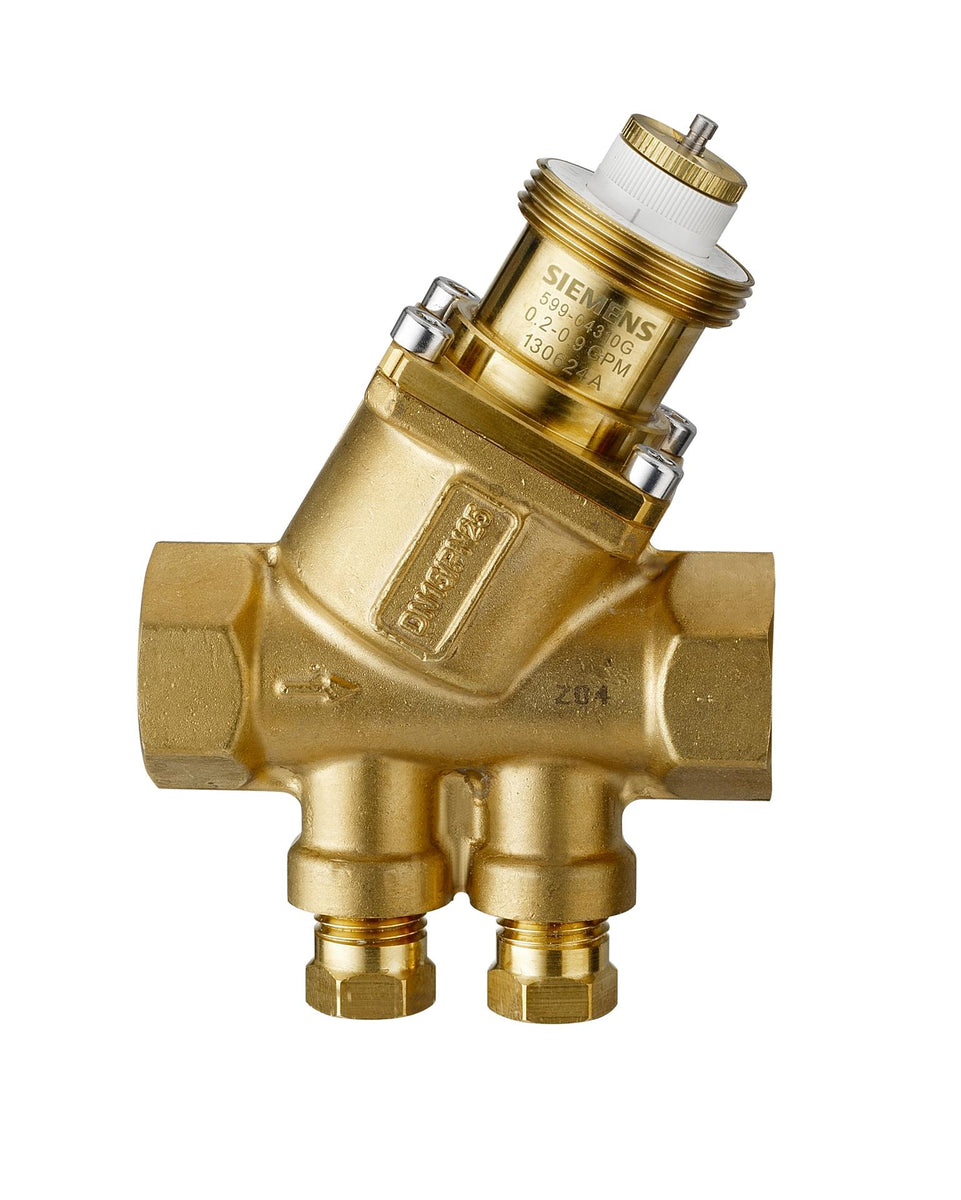

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-04322-6.5
Documents and manuals
Overview
Details for 599-04322-6.5
Siemens Building Technology 3/4" PICV 6.5 GPM NO (599-04322-6.5)
Siemens Building Technology's 599-04322-6.5 is a 3/4" pressure-independent control valve (PICV) with a flow rate of 6.5 GPM. PICVs are used to maintain a constant flow rate of water in hydronic systems, regardless of pressure fluctuations. This PICV is ideal for use in commercial and industrial buildings, and it features a durable construction and a long service life.
Key Features:
- 3/4" size
- Flow rate of 6.5 GPM
- Pressure-independent design
- Durable construction
- Long service life
Benefits:
- Maintains a constant flow rate of water in hydronic systems
- Ideal for use in commercial and industrial buildings
- Durable construction and long service life
Shop our HVAC supply store today for the best prices and fast shipping on all your industrial needs!
Specifications
- Valve Size
- 0.75 in
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Brass
- Trim Material
- Brass
- Material, inside set
- Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- Max GPM
- 8 gpm
- DN
- 20
- Min GPM
- 1.3 gpm
- Preset GPM
- 6.5 gpm
- Pressure Class
- ANSI 250
- Leakage rate
- ANSI Class IV (0.01%) @ 100 psi
- Leakage rate, class
- ANSI Class IV
- Rangeability
- ≥ 100:1
- Medium temperature
- 34…248 ºF
- Stroke
- 5.5 mm
- Close-off Pressure
- 200 psi
