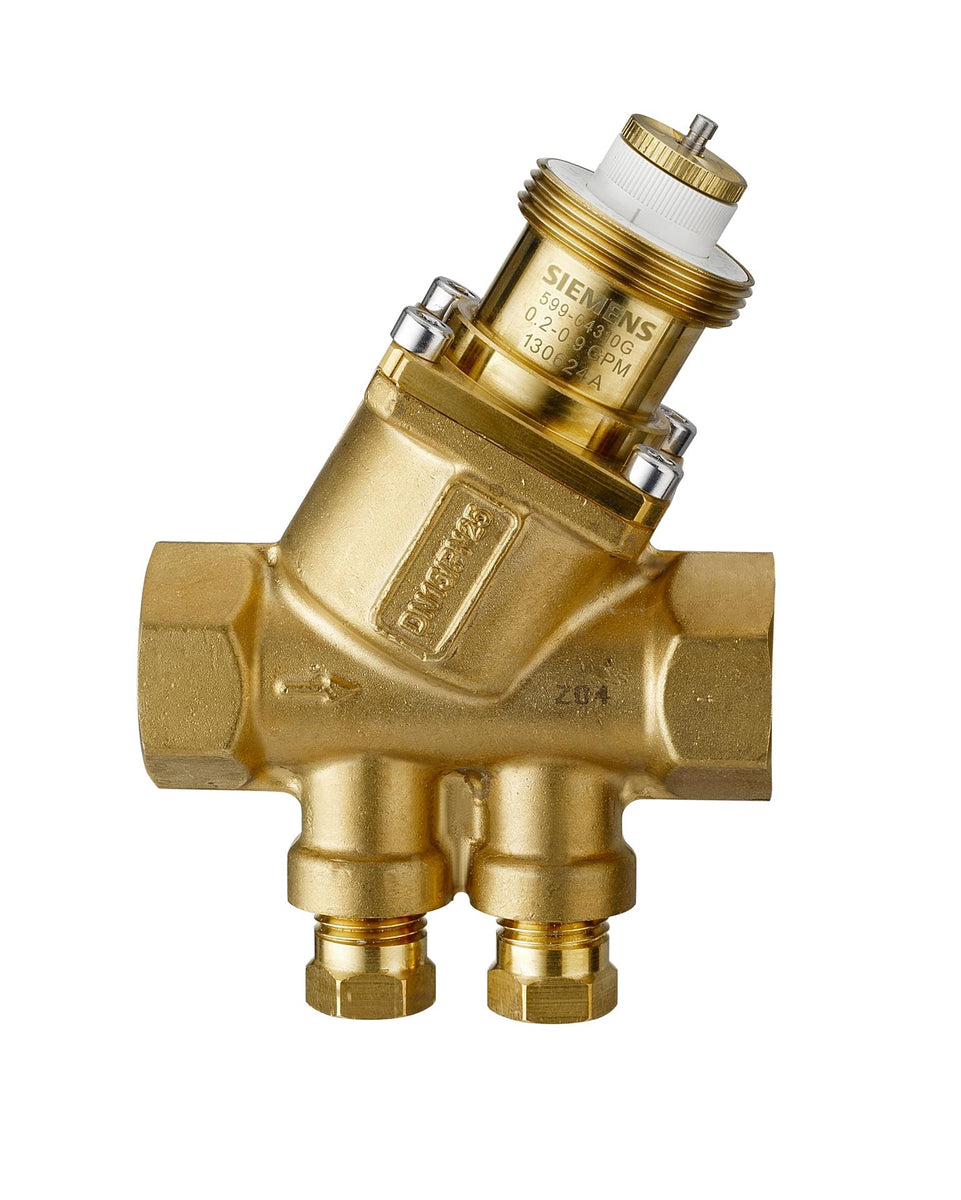

Siemens 599-04322-4.5 Pressure Independent Control Valve (PICV)
The Siemens Building Technology 599-04322-4.5 PICV is a three-quarter-inch Pressure Independent Control Valve designed to regulate flow in HVAC systems, ensuring optimal temperature control while maintaining system efficiency.
Crafted with precision, this PICV features a compact and durable design for reliable operation in demanding industrial environments. With a flow capacity of 4.5 gallons per minute, it effectively balances flow rates, providing consistent and accurate temperature regulation.
Key Features:
• 3/4" PICV
• Flow capacity: 4.5 GPM
• Pressure independent control
• Compact and durable design
Benefits:
• Enhanced temperature control
• Improved system efficiency
• Reduced energy consumption
• Reliable performance
Applications:
• HVAC systems
• Industrial applications
• Commercial buildings
Upgrade your HVAC system with the Siemens Building Technology 599-04322-4.5 PICV and experience exceptional temperature control, efficiency, and reliability.
Our HVAC supply store: Your Trusted Source for Industrial Supplies
Our HVAC supply store is your go-to supplier for top-quality industrial products. With competitive pricing and fast shipping, we cater to the needs of industrial engineers and maintenance professionals. Trust us to provide you with the best products and exceptional service. Order your Siemens 599-04322-4.5 PICV today and elevate your HVAC system's performance!
Specifications
- Valve Size
- 0.75 in
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Brass
- Trim Material
- Brass
- Material, inside set
- Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- Max GPM
- 8 gpm
- DN
- 20
- Min GPM
- 1.3 gpm
- Preset GPM
- 4.5 gpm
- Pressure Class
- ANSI 250
- Leakage rate
- ANSI Class IV (0.01%) @ 100 psi
- Leakage rate, class
- ANSI Class IV
- Rangeability
- ≥ 100:1
- Medium temperature
- 34…248 ºF
- Stroke
- 5.5 mm
- Close-off Pressure
- 200 psi
