599-04322-3 | 599-04322-3, 3/4 PICV, 3 GPM NO | Siemens Building Technology

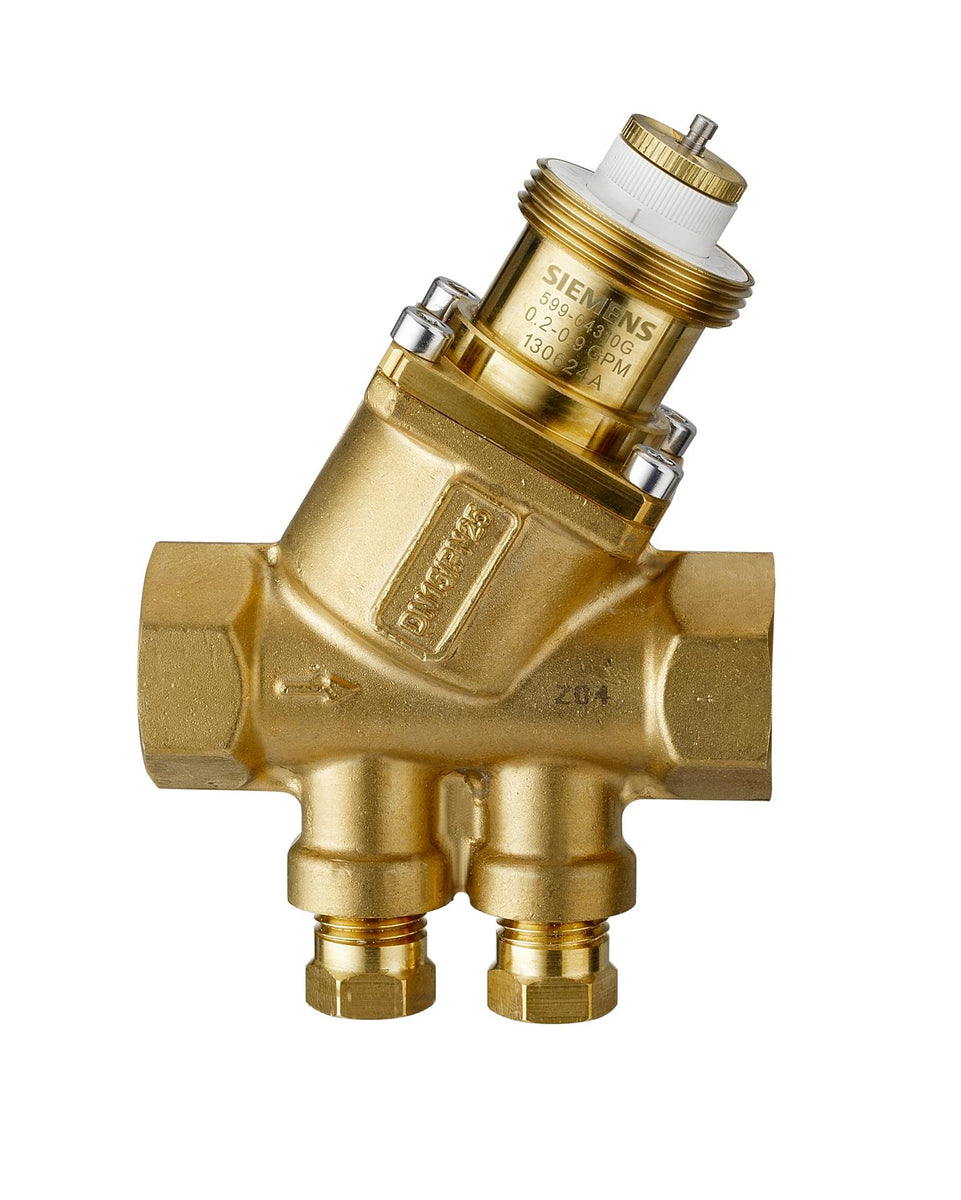

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-04322-3
Documents and manuals
Overview
Details for 599-04322-3
3/4" PICV 3 GPM NO: 599-04322-3 by Siemens Building Technology. The 3/4" PICV 3 GPM NO is a high-performance pressure independent control valve designed to deliver precise flow control in hydronic heating and cooling systems. Its advanced design and construction ensure reliable operation, energy efficiency, and long-lasting performance. Our HVAC supply store carries a comprehensive range of Siemens Building Technology products including control valves like the 3/4" PICV 3 GPM NO. We offer the best prices and fast shipping for your products!
Specifications
- Valve Size
- 0.75 in
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Brass
- Trim Material
- Brass
- Material, inside set
- Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- Max GPM
- 8 gpm
- DN
- 20
- Min GPM
- 1.3 gpm
- Preset GPM
- 3 gpm
- Pressure Class
- ANSI 250
- Leakage rate
- ANSI Class IV (0.01%) @ 100 psi
- Leakage rate, class
- ANSI Class IV
- Rangeability
- ≥ 100:1
- Medium temperature
- 34…248 ºF
- Stroke
- 5.5 mm
- Close-off Pressure
- 200 psi
