599-04322-2.5 | 3/4" PICV 2.5 GPM NO | Siemens Building Technology

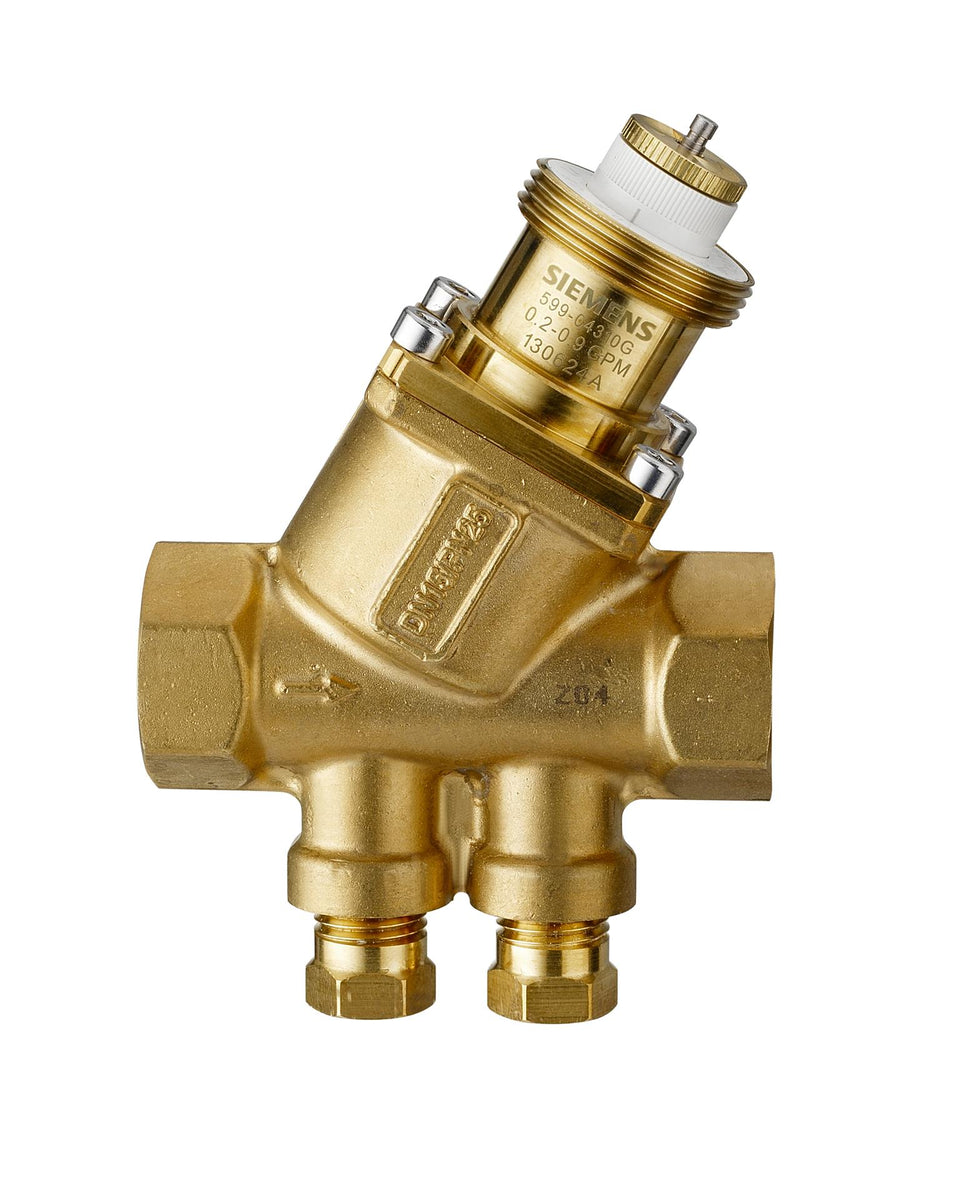

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-04322-2.5
Documents and manuals
Overview
Details for 599-04322-2.5
Siemens Building Technology NCO-599-04322-2.5 PICV 3/4" 2.5 GPM NO
The Siemens Building Technology NCO-599-04322-2.5 PICV 3/4" 2.5 GPM NO is a pressure independent control valve designed to maintain a constant flow rate of 2.5 GPM regardless of pressure fluctuations in the system. It is ideal for use in hydronic heating and cooling systems, as well as other applications where precise flow control is required.
The NCO-599-04322-2.5 PICV features a lead-free brass body, stainless steel trim, and EPDM seals for durability and corrosion resistance. It has a maximum working pressure of 150 PSI and a maximum temperature of 230°F. The valve is also equipped with a tamper-proof adjustment cap to prevent unauthorized changes to the flow setting.
The NCO-599-04322-2.5 PICV is easy to install and maintain. It can be mounted in any orientation and requires no special tools or equipment. The valve is also backed by a 5-year warranty for peace of mind.
Our HVAC supply store is the best place to find Siemens Building Technology NCO-599-04322-2.5 PICV 3/4" 2.5 GPM NO. We offer the best prices and fast shipping for your products.
Specifications
- Valve Size
- 0.75 in
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Brass
- Trim Material
- Brass
- Material, inside set
- Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- Max GPM
- 8 gpm
- DN
- 20
- Min GPM
- 1.3 gpm
- Preset GPM
- 2.5 gpm
- Pressure Class
- ANSI 250
- Leakage rate
- ANSI Class IV (0.01%) @ 100 psi
- Leakage rate, class
- ANSI Class IV
- Rangeability
- ≥ 100:1
- Medium temperature
- 34…248 ºF
- Stroke
- 5.5 mm
- Close-off Pressure
- 200 psi
