599-04316-50 | PICV, 2 inch, Normally Open, 50 GPM max. flow preset | Siemens Building Technology

Siemens Building Technology | 599-04316-50

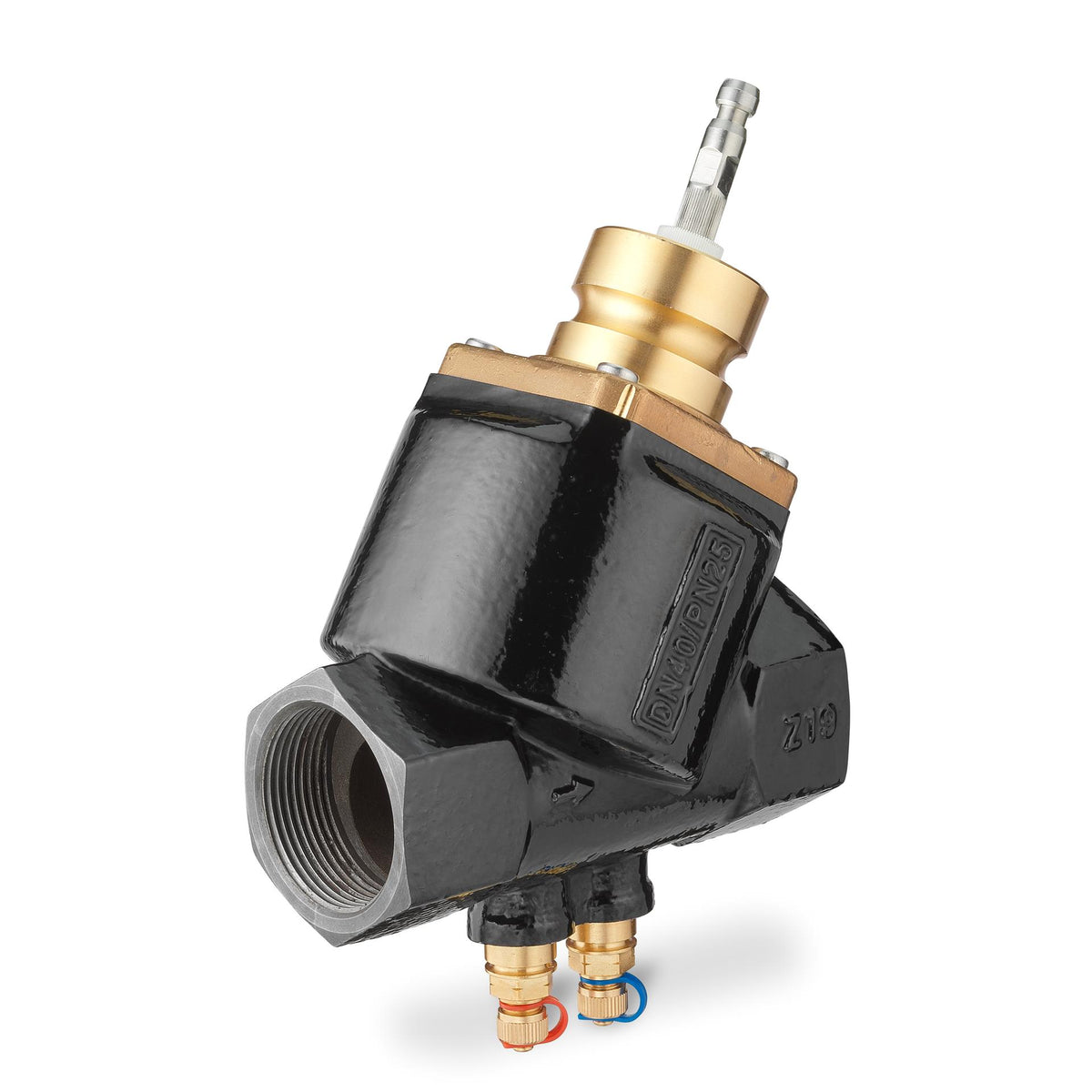

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04316-50

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04316-50 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04316-50

2" PICV 50 GPM NO: This 2-inch Pressure Independent Control Valve (PICV) is manufactured by Siemens Building Technology and has a rated flow capacity of 50 GPM. It features a robust construction designed to withstand demanding industrial environments and is commonly used in hydronic systems to regulate flow and maintain a constant differential pressure, ensuring optimal system performance. The valve's precise control capabilities make it suitable for applications requiring accurate temperature control, such as HVAC systems in commercial buildings, industrial facilities, and data centers. Trust our HVAC supply store for the best prices and fast shipping on your industrial supply needs!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Ductile Iron
Material, inside set: Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
Medium: Water , Water with anti-freeze
Max GPM: 50 gpm
DN: 50
Min GPM: 10 gpm
Preset GPM: 50 gpm
Leakage rate: ANSI Class IV (0.01%) @ 100 psi
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 15 mm
Dimensions (W x H x D): 3.7 x 8.78 x 5.47 in
