599-04316-40 | PICV, 2 inch, Normally Open, 40 GPM max. flow preset | Siemens Building Technology

Siemens Building Technology | 599-04316-40

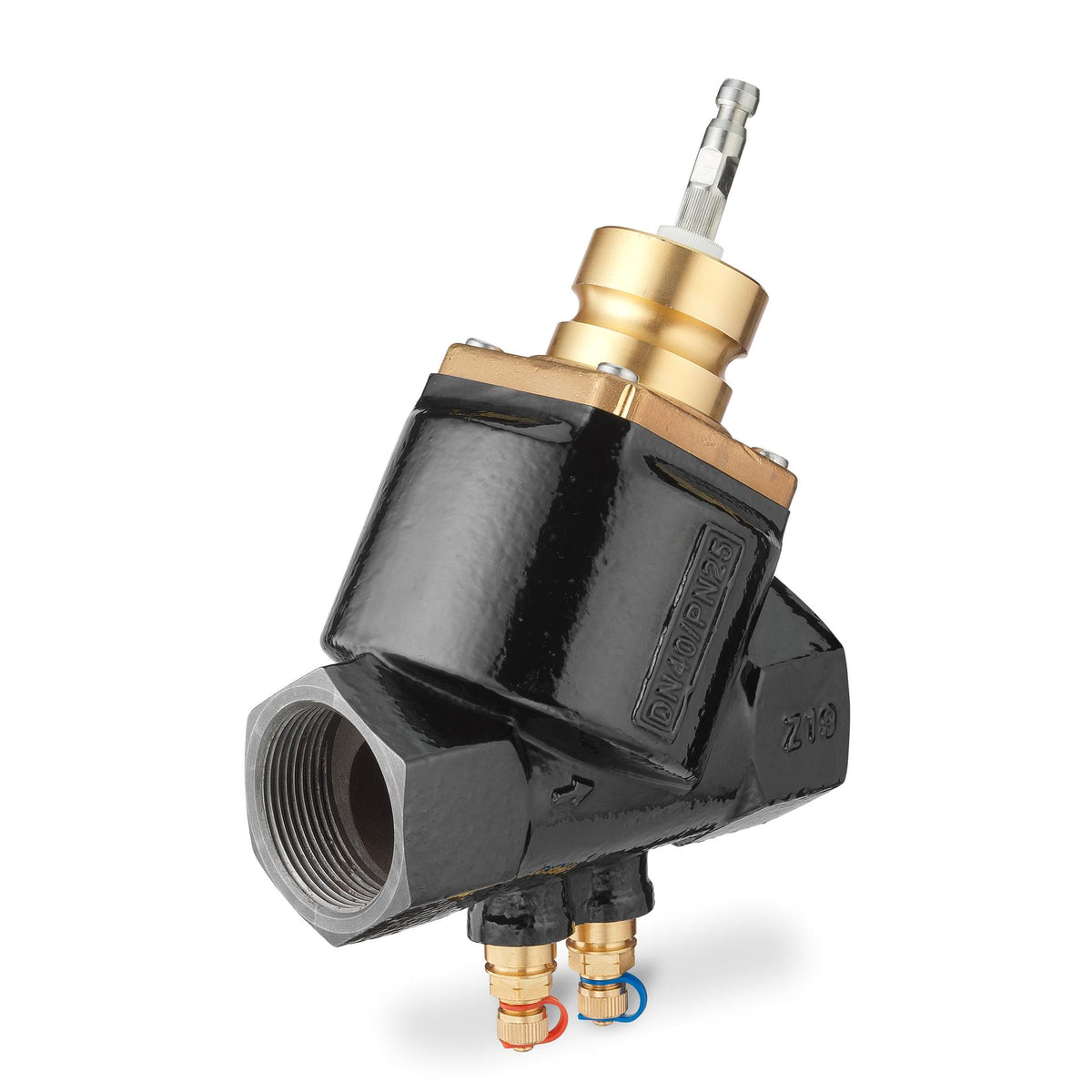

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04316-40

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04316-40 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04316-40

2" PICV 40 GPM NO (599-04316-40) by Siemens Building Technology Control water flow in your building system with the Siemens Building Technology 2" Pressure Independent Control Valve (PICV). This valve features a flow capacity of 40 GPM (gallons per minute) and is designed for use in commercial and industrial applications. The PICV maintains a constant flow rate regardless of pressure fluctuations in the system, ensuring optimal performance and energy efficiency. With its reliable construction and precise flow control, the 2" PICV 40 GPM NO is an essential component for any hydronic system. Trust Siemens Building Technology for your building automation needs. Our HVAC supply store offers the best prices and fast shipping for all your industrial products!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Ductile Iron
Material, inside set: Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
Medium: Water , Water with anti-freeze
Max GPM: 50 gpm
DN: 50
Min GPM: 10 gpm
Preset GPM: 40 gpm
Leakage rate: ANSI Class IV (0.01%) @ 100 psi
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 15 mm
Dimensions (W x H x D): 3.7 x 8.78 x 5.47 in
