599-04315-35 | PICV, 1-1/2 inch, Normally Open, 35 GPM max. flow preset | Siemens Building Technology

Siemens Building Technology | 599-04315-35

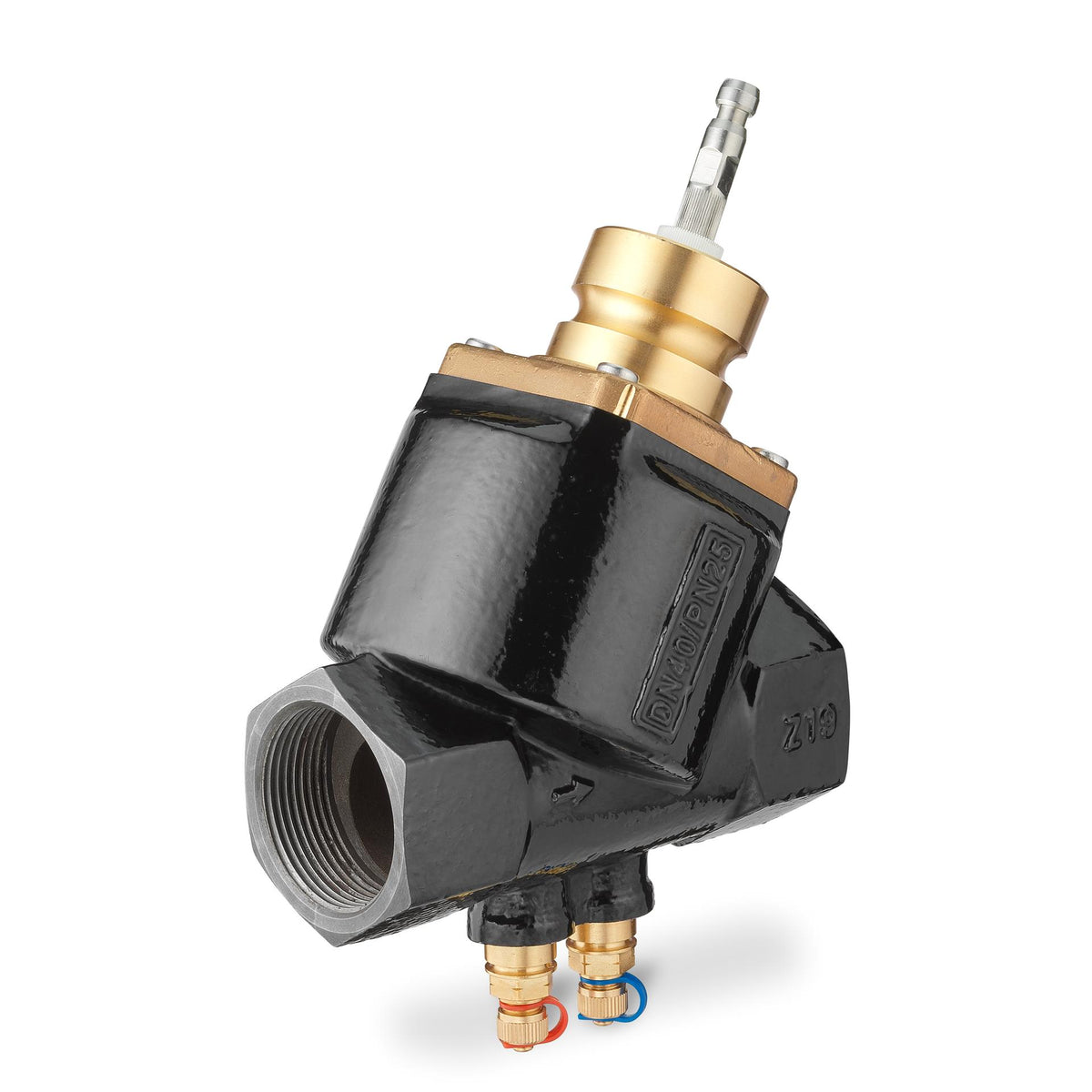

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04315-35

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04315-35 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04315-35

1 1/2" Pressure Independent Control Valve (PICV) with a flow rate of 35 GPM and a Normally Open (NO) design from Siemens Building Technology. PICVs are used in hydronic heating and cooling systems to control the flow of water through a heating or cooling coil. The 599-04315-35 PICV is designed for use with chilled water or hot water systems and features a lead-free bronze body, stainless steel trim, and EPDM seals. It has a maximum operating pressure of 150 psi and a maximum operating temperature of 250Â°F. The 599-04315-35 PICV is a high-quality, durable product that is designed to provide years of trouble-free service. Our HVAC supply store offers the best prices and fast shipping on the 599-04315-35 PICV. Order yours today!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Ductile Iron
Material, inside set: Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
Medium: Water , Water with anti-freeze
Max GPM: 40 gpm
DN: 40
Min GPM: 10 gpm
Preset GPM: 35 gpm
Leakage rate: ANSI Class IV (0.01%)
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 15 mm
Dimensions (W x H x D): 3.7 x 8.54 x 5.47 in
