599-04315-25 | PICV, 1-1/2 inch, Normally Open, 25 GPM max. flow preset | Siemens Building Technology

Siemens Building Technology | 599-04315-25

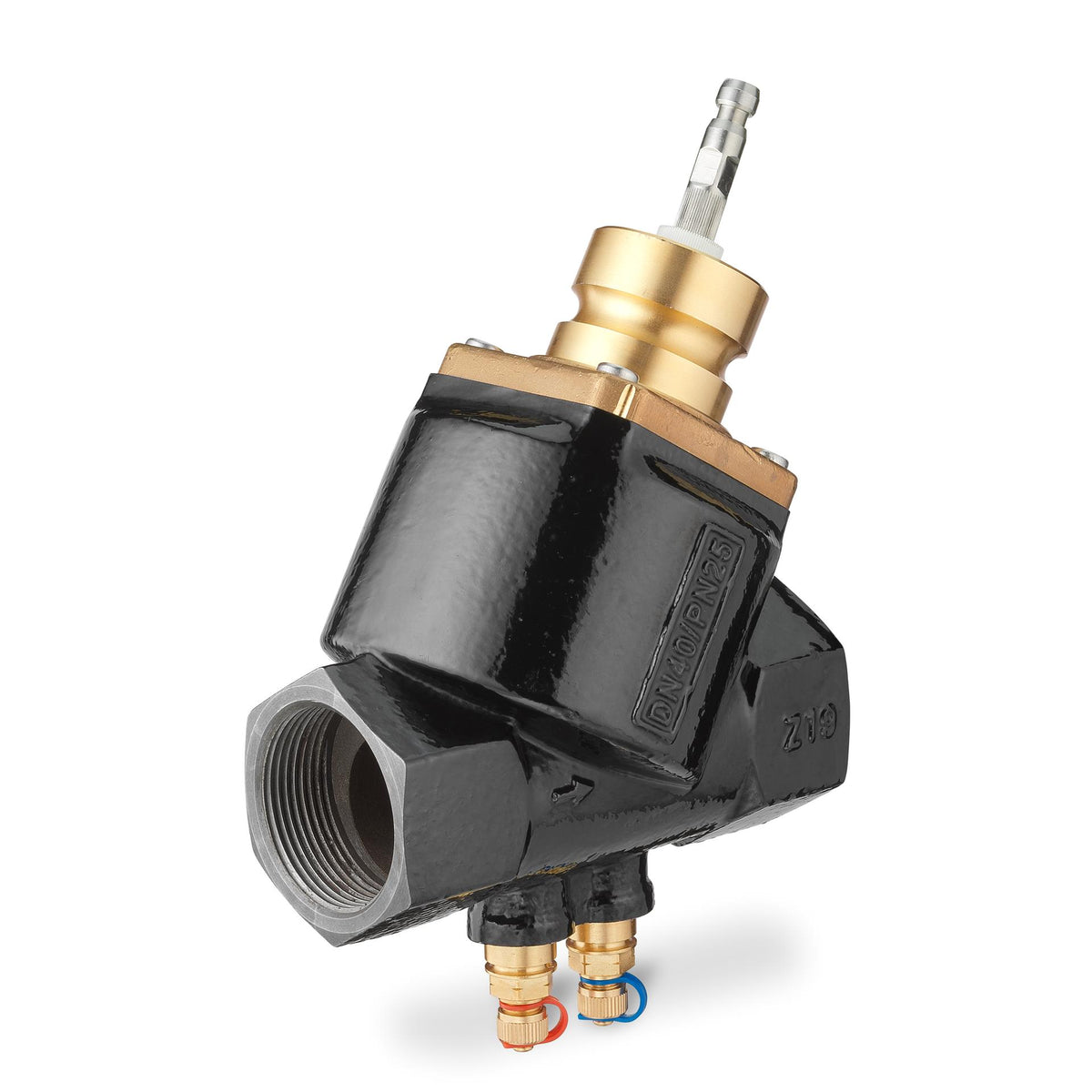

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04315-25

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04315-25 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04315-25

Precise Flow Control: 599-04315-25 1 1/2" PICV 25 GPM NO The 599-04315-25 Pressure Independent Control Valve (PICV) by Siemens Building Technology offers precise flow control in hydronic systems. This 1 1/2" PICV features a flow rate of 25 GPM and a Normally Open (NO) operation. Technical Specifications: - Size: 1 1/2" - Flow Rate: 25 GPM - Pressure Range: 14.5-116 psi - Temperature Range: 14Â°F to 248Â°F - Connection Type: Flanged Benefits: - Accurate flow control for optimal system performance - Reliable operation in demanding hydronic applications - Durable construction for long service life Applications: The 599-04315-25 PICV is ideal for use in various hydronic systems, including: - HVAC systems - Chilled water systems - Heating systems - Industrial applications Our HVAC supply store offers the best prices and fast shipping for your industrial products. Trust us for your essential 599-04315-25 and other industrial equipment needs.

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Ductile Iron
Material, inside set: Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
Medium: Water , Water with anti-freeze
Max GPM: 40 gpm
DN: 40
Min GPM: 10 gpm
Preset GPM: 25 gpm
Leakage rate: ANSI Class IV (0.01%)
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 15 mm
Dimensions (W x H x D): 3.7 x 8.54 x 5.47 in
