599-04315-20 | PICV, 1-1/2 inch, Normally Open, 20 GPM max. flow preset | Siemens Building Technology

Siemens Building Technology | 599-04315-20

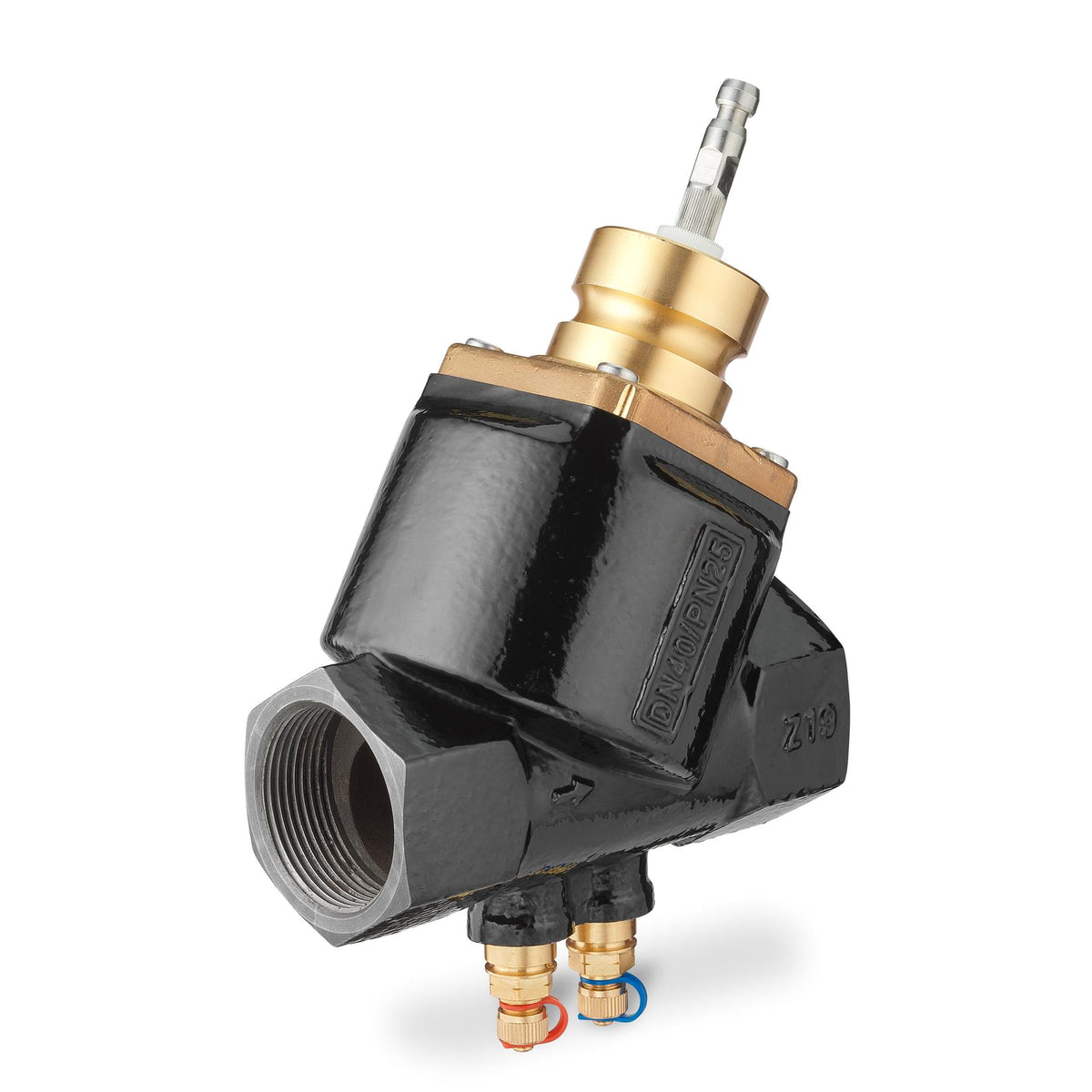

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04315-20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04315-20 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04315-20

1 Â½â€ PICV Siemens Building Technology 599-04315-20: This PICV is designed to control water flow in HVAC systems. It features a 1 Â½â€ diameter and a maximum flow rate of 20 GPM. The PICV is made of high-quality materials and is built to last. It is easy to install and maintain, making it a great choice for any HVAC system. Our HVAC supply store has the best prices and fastest shipping on the 599-04315-20 PICV. Order yours today!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Ductile Iron
Material, inside set: Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
Medium: Water , Water with anti-freeze
Max GPM: 40 gpm
DN: 40
Min GPM: 10 gpm
Preset GPM: 20 gpm
Leakage rate: ANSI Class IV (0.01%)
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 15 mm
Dimensions (W x H x D): 3.7 x 8.54 x 5.47 in
