599-04314-16 | PICV, 1-1/4 inch, Normally Open, 16 GPM max. flow preset | Siemens Building Technology

Siemens Building Technology | 599-04314-16

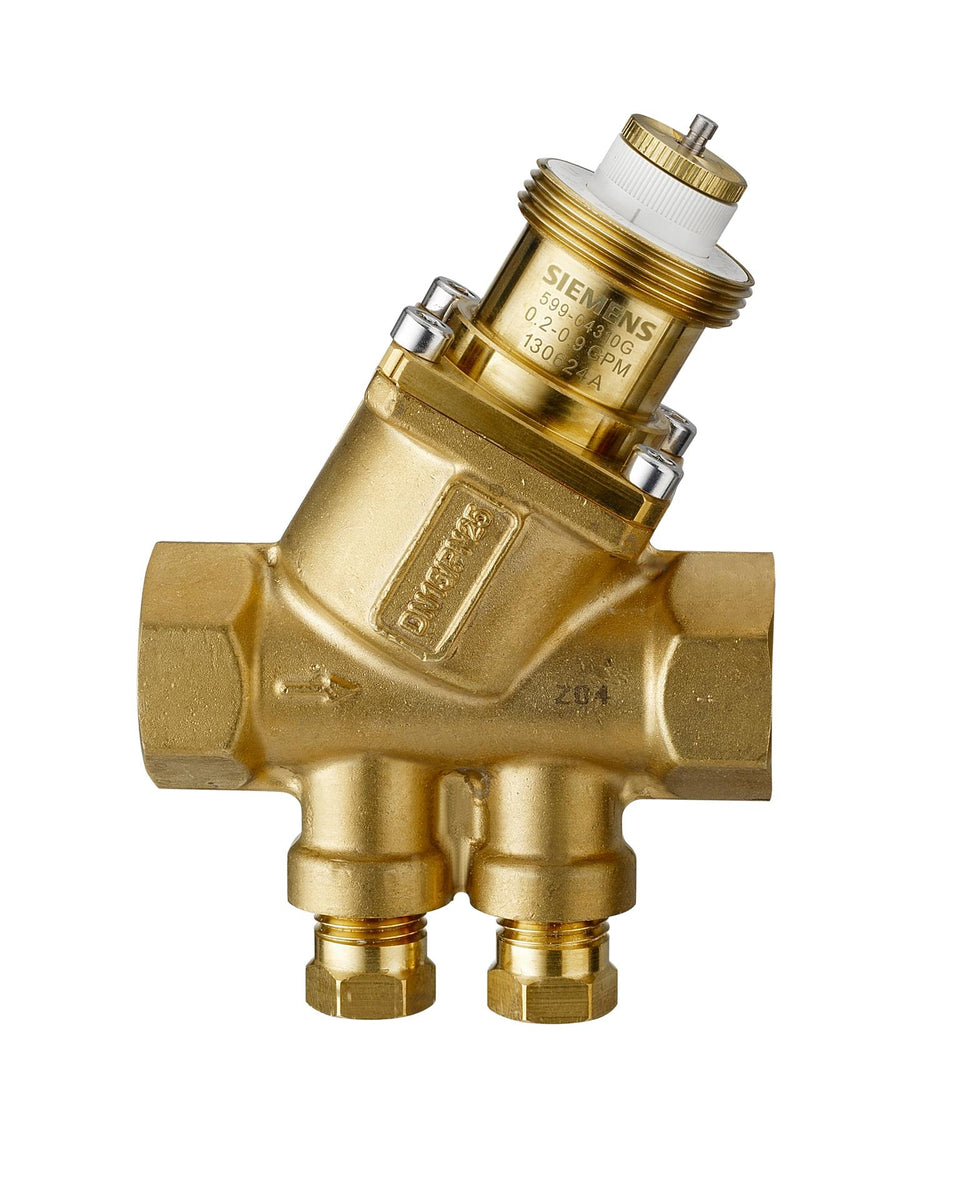

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04314-16

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04314-16 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04314-16

1 1/4" PICV 16 GPM NO: The Siemens Building Technology 1 1/4" PICV 16 GPM NO is a pressure-independent control valve designed to regulate the flow of water in hydronic systems. It features a compact and lightweight design, making it easy to install and maintain. The valve is constructed with durable materials, ensuring long-lasting performance and reliability. Its precise control capabilities allow for efficient and optimized water flow, resulting in energy savings and enhanced system performance. The valve is suitable for use in various commercial and industrial applications, including heating, cooling, and plumbing systems.

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Brass
Material, inside set: Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
Medium: Water , Water with anti-freeze
Max GPM: 18 gpm
DN: 32
Min GPM: 3 gpm
Preset GPM: 16 gpm
Leakage rate: ANSI Class IV (0.01%)
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 5.5 mm
Dimensions (W x H x D): 2.56 x 5.49 x 4.17 in
