599-04303-8 | PICV, 3/4 inch, 8 GPM max. flow preset | Siemens Building Technology

Siemens Building Technology | 599-04303-8

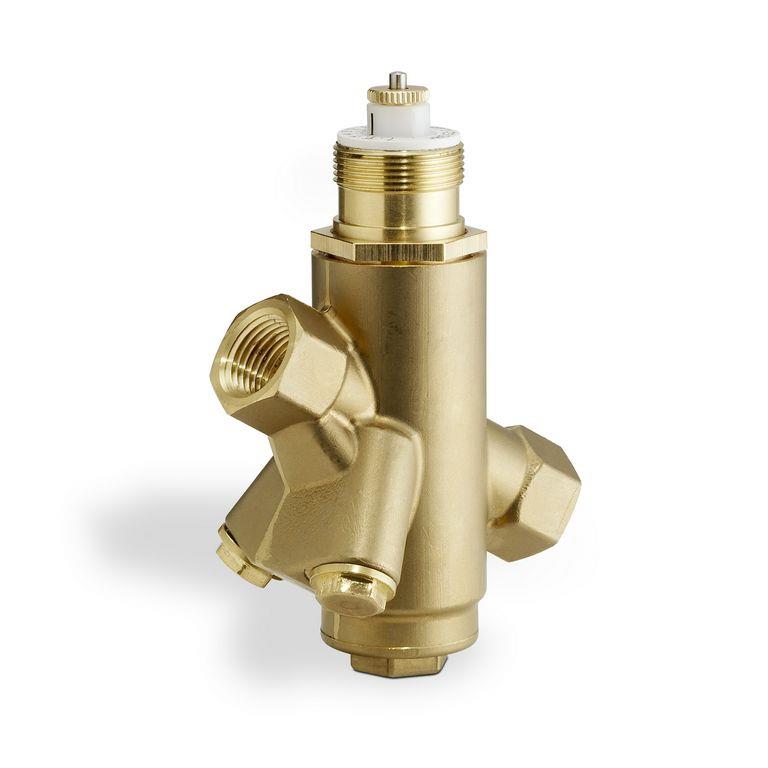

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04303-8

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04303-8 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04303-8

3/4" Pressure Independent Control Valve (PICV) 8 GPM: NCO 599-04303-8 Siemens Building Technology. The NCO 599-04303-8 Siemens Building Technology is a 3/4" PICV with a flow rate of 8 GPM. It is designed to maintain a constant flow rate of water regardless of changes in pressure. This makes it ideal for use in hydronic heating and cooling systems, as it ensures that the desired temperature is maintained throughout the system. The valve is made of high-quality materials and is built to last. It is also easy to install and maintain. If you are looking for a reliable and efficient PICV, the NCO 599-04303-8 Siemens Building Technology is a great option. Shop now at our HVAC supply store for the best prices and fast shipping!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Brass
Material, inside set: Trim: Brass Stem: Stainless Steel Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
Max GPM: 8.9 gpm
Min GPM: 1 gpm
Preset GPM: 8 gpm
Leakage rate: ANSI Class IV (0.01%)
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 5 mm
