599-04303-6 | PICV, 3/4 inch, 6 GPM max. flow preset | Siemens Building Technology

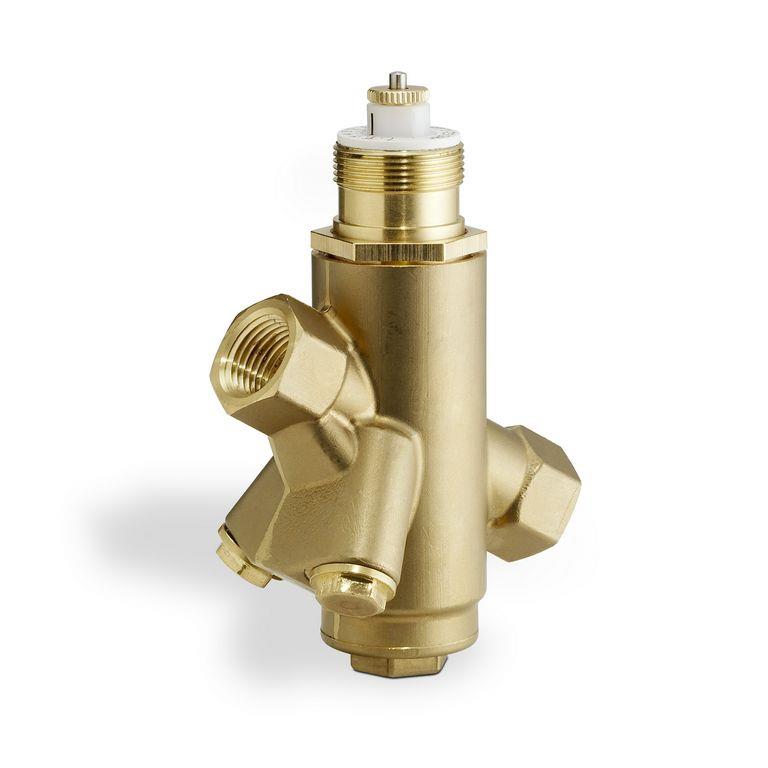

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-04303-6
Documents and manuals
Overview
Details for 599-04303-6
3/4" PICV 6 GPM: Siemens Building Technology Control Your Water Flow with PrecisionThe 599-04303-6 3/4" PICV 6 GPM is a high-performance pressure-independent control valve designed to provide precise water flow control in hydronic systems. Engineered for exceptional durability, this valve from Siemens Building Technology ensures reliable performance even in demanding conditions.Features and Benefits:
- Pressure-independent control ensures consistent flow rate regardless of pressure fluctuations.
- 6 GPM flow capacity meets the demands of various hydronic systems.
- 3/4" connection size for compatibility with standard piping systems.
- Robust construction withstands harsh environments.
- Compact design simplifies installation and maintenance.Applications:
The 3/4" PICV 6 GPM is ideal for a wide range of hydronic applications, including:
- Radiant floor heating systems
- Hot water distribution systems
- Chilled water systems
- Commercial buildings
- Industrial facilitiesChoose our HVAC supply store for Unbeatable Prices and Fast Shipping!
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally closed
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Brass
- Material, inside set
- Trim: Brass Stem: Stainless Steel Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- Max GPM
- 8.9 gpm
- Min GPM
- 1 gpm
- Preset GPM
- 6 gpm
- Leakage rate
- ANSI Class IV (0.01%)
- Rangeability
- ≥ 100:1
- Medium temperature
- 34…248 ºF
- Stroke
- 5 mm
