599-04302-1 | PICV, 3/4 inch, 1 GPM max. flow preset | Siemens Building Technology

Siemens Building Technology | 599-04302-1

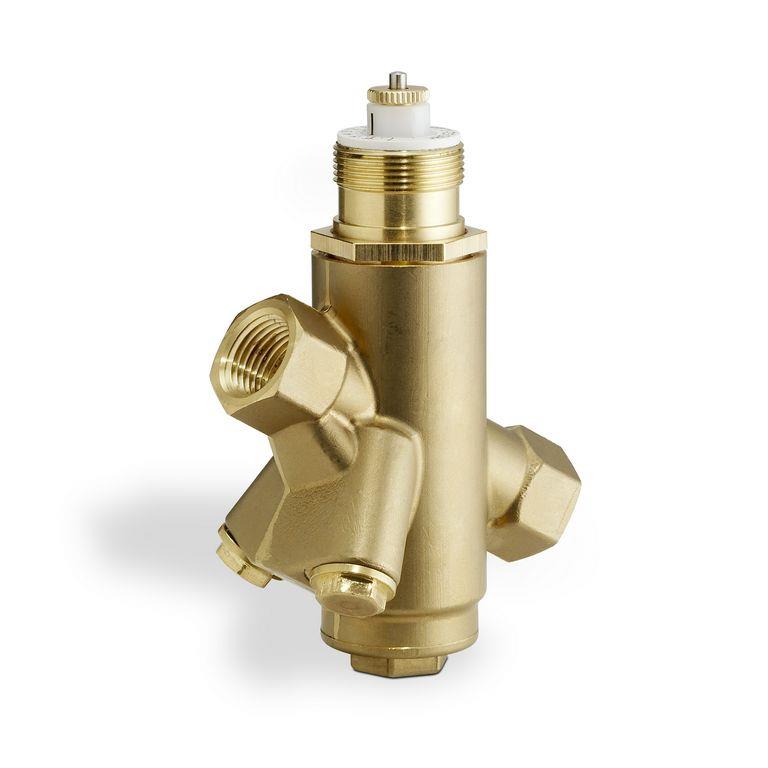

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-04302-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-04302-1 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04302-1

3/4" Pressure Independent Control Valve (PICV): 599-04302-1 by Siemens Building TechnologyThe Siemens Building Technology 599-04302-1 is a 3/4" Pressure Independent Control Valve (PICV) designed to deliver precise flow control in hydronic heating and cooling systems. It features a maximum flow capacity of 1 GPM, making it ideal for applications requiring accurate flow regulation. This PICV is engineered to maintain a constant flow rate regardless of pressure fluctuations in the system, ensuring optimal system performance and energy efficiency. Its durable construction and reliable design make it a dependable choice for demanding industrial and commercial applications.Shop our HVAC supply store for the best prices and fast shipping on all your PICV needs!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Brass
Material, inside set: Trim: Brass Stem: Stainless Steel Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
Max GPM: 4.5 gpm
Min GPM: 0.5 gpm
Preset GPM: 1 gpm
Leakage rate: ANSI Class IV (0.01%)
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 5 mm
