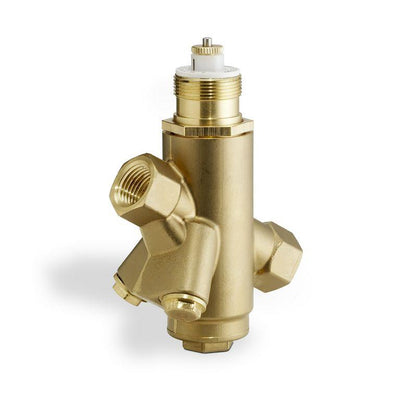

599-04300-2.5 | PICV, 1/2 inch, 2.5 GPM max. flow preset | Siemens Building Technology
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-04300-2.5
Documents and manuals
Overview
Details for 599-04300-2.5
The Siemens Building Technology 599-04300-2.5 1/2" NPT PICV is a high-quality, precision-engineered valve designed to optimize water flow in HVAC systems. Featuring a maximum flow rate of 2.5 GPM, this PICV precisely regulates water flow, ensuring optimal performance and energy efficiency. The valve's durable construction and reliable operation make it ideal for demanding commercial and industrial applications.
With its 1/2" NPT connection, the 599-04300-2.5 PICV seamlessly integrates into existing piping systems. Its compact design allows for easy installation in tight spaces. The valve's robust brass body and stainless steel internals provide excellent corrosion resistance and durability, ensuring a long service life.
The Siemens Building Technology PICV is not only highly functional but also user-friendly. Its manual override feature allows for precise flow adjustment, providing additional control over the system's performance. Whether you're a maintenance professional or an industrial engineer, this PICV offers a combination of reliability, efficiency, and ease of use.
Our HVAC supply store offers the best prices and fast shipping for your products!
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally closed
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Brass
- Material, inside set
- Trim: Brass Stem: Stainless Steel Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- Max GPM
- 2.7 gpm
- Min GPM
- 0.3 gpm
- Preset GPM
- 2.5 gpm
- Leakage rate
- ANSI Class IV (0.01%)
- Rangeability
- ≥ 100:1
- Medium temperature
- 34…248 ºF
- Stroke
- 5 mm
