544-560-18 | Duct Point Sensor, Platinum, -4 to 122 Deg F, 18-Inch | Siemens Building Technology
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 544-560-18
Documents and manuals
Overview
Details for 544-560-18

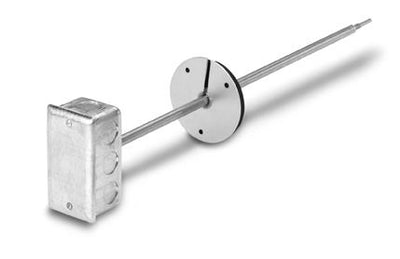

Siemens Building Technology 4-122F Duct Sensor 18" Probe (544-560-18)
The Siemens Building Technology 4-122F Duct Sensor is designed to measure air temperature in HVAC systems. It features an 18-inch probe that can be inserted into ducts to accurately sense temperature. The sensor has a range of -20 to 122°F (-29 to 50°C) and an accuracy of ±1°F (±0.6°C). It is constructed with a durable plastic housing and has a 1/2" NPT connection.
Features:
* 18-inch probe for accurate temperature measurement
* Range of -20 to 122°F (-29 to 50°C)
* Accuracy of ±1°F (±0.6°C)
* Durable plastic housing
* 1/2" NPT connection
Benefits:
* Accurate temperature measurement in HVAC systems
* Easy installation and maintenance
* Reliable performance in demanding environments
Applications:
* HVAC systems
* Temperature monitoring
* Data centers
* Industrial facilities
We offer the best prices and fast shipping for your products!
Specifications
- Sensing element
- 100 ohm Platinum RTD
- Operating voltage
- 18 to 36Vdc or 24Vac ± 20 %
- Analog outputs
- 4 to 20 mA
- Measuring range
- -4 to 122 °F
- Measurement accuracy
- +/-0.54°F @ 32 °F
- Sensor
- 18 in. Rigid point type probe
- Sensing element
- Pt100
- Probe length
- 18 in
