4C-3 | 1/4 DIN temperature controller | relay output. | Dwyer Instruments

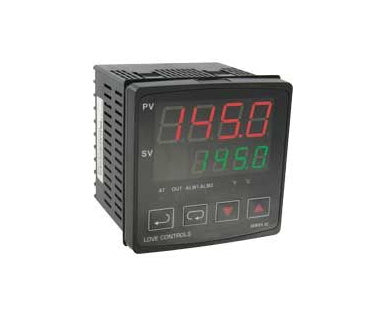

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 4C-3

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 4C-3 Documents

4C Quick Start Snubber Application Note 4C Instruction Manual Series 4C Catalog Page More Info

Overview

Details for 4C-3

Dwyer Instruments NCO-4C-3 Relay: Precision Control for Industrial Applications The Dwyer Instruments NCO-4C-3 Relay provides exceptional control and monitoring capabilities for demanding industrial environments. Designed for accuracy, reliability, and durability, this compact relay offers a wide range of features and specifications tailored to the needs of industrial engineers and maintenance professionals. Key Features: 1 Amp Contact Rating: Manages substantial electrical loads with precision -70Â°C to 120Â°C Temperature Range: Withstands extreme temperatures for harsh operating conditions 10A AC/20A DC Coil Power: Efficient power consumption and reliable operation Compact Size: Fits easily into tight spaces, maximizing panel efficiency 5-Year Warranty: Assures long-term performance and reliability Benefits: Precise Control: Accurately monitor and control electrical systems Rugged Design: Resists wear and tear, ensuring extended service life Space-Saving: Conserves valuable panel space Energy Efficient: Minimizes power consumption without compromising performance Applications: * Remote monitoring and control of industrial processes * HVAC systems and temperature control * Machinery and equipment automation * Electrical distribution panels * Pump and fan control For exceptional precision and reliability in your industrial applications, choose the Dwyer Instruments NCO-4C-3 Relay. Trust our HVAC supply store for the best prices and fast shipping on all your industrial products!

Series 4C 1/4 DIN Temperature Controller

PID Control, Auto-Tuning, Large Dual Display, RS 485 Communication

The Series 4C 1/4 DIN Temperature Controller offers easy-to-use programming menus designed for quick installation. Control functions include ON/OFF, PID, auto-tuning or manual tuning. The Series 4C is available with relay, voltage or current output with two additional alarm outputs. The alarm outputs can be configured from 12 different preprogrammed settings. The Series 4C accepts a variety of thermocouple and RTD inputs. Process value and setpoint value are simultaneously displayed with the process value in red and setpoint in green.

Product Applications

Oven, boiler, or chiller control
Hot plates/melt pots
Food service equipment
Environmental chambers
Packaging equipment

Universal input accepts RTD or thermocouple sensors
On/Off, PID, or manual output control
RS-485 standard on all models

Specifications

Series: 4C 1/4 DIN Temperature Controller
Category/Type: Process Control
Type: Process Controllers
Series: 4C 1/4 DIN Temperature Controller
Inputs: Thermocouple or RTD (see Catalog page).
Display: Two 4-digit; 7 segment LED's. PV: red .75" H (19 mm); SV: green .5" H (12.7 mm).
Accuracy: 0.25% span; ±1 least significant digit.
Supply Voltage: 100 to 240 VAC; 50/60 Hz.
Power Consumption: 5 VA max.
Operating Temperature: 32 to 122°F (0 to 50°C).
Memory Backup: Nonvolatile memory.
Control Output Ratings: Relay: SPDT; 5 A @ 250 VAC resistive; Voltage Pulse: 14 V; 10% to -20% (max 40 mA); Current: 4 to 20 mA.
Communication: RS-485 Modbus® ASCII communication protocol.
Weight: 15 oz (425 g).
Agency Approvals: CE; RoHS; cUL; UL.
Front Panel Rating: IP56.
