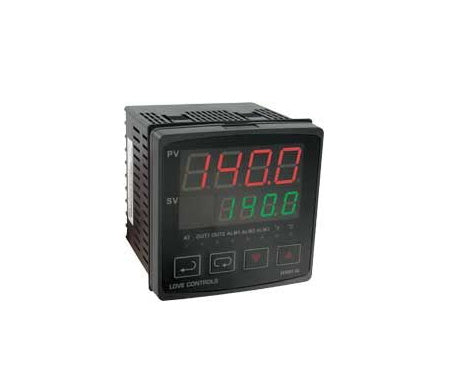

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 4B-23

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 4B-23 Documents

4B (Chinese)4B Quick Start Snubber Application Note 4B (English)Series 4B Catalog Page More Info

Overview

Details for 4B-23

Precise Temperature Control: Dwyer Instruments 4B-23 Temperature Controller1/4DIN Temp Ctrl;V Pulse/Relay The Dwyer Instruments 4B-23 Temperature Controller offers precise and reliable temperature control in a compact 1/4 DIN form factor. Ideal for industrial and commercial applications, this controller features versatile pulse output or relay output options, providing flexibility in controlling various temperature-sensitive systems. Key Features: - Compact 1/4 DIN size for space-saving installation. - Pulse output or relay output for adaptable control applications. - Intuitive user interface for easy setup and operation. - Configurable parameters for precise temperature regulation. - Durable construction for long-lasting performance in demanding environments. Benefits: - Precise temperature control ensures optimal operation of critical equipment. - Versatile output options allow seamless integration with diverse systems. - Simplified setup and user-friendly operation enhance efficiency. - Reliable performance minimizes downtime and maintenance costs. Applications: The Dwyer Instruments 4B-23 Temperature Controller finds applications in various industries, including: - HVAC systems - Industrial process control - Environmental monitoring - Laboratory equipment - Food and beverage processing Shop our HVAC supply store for your industrial supply needs. We offer competitive prices, fast shipping, and exceptional customer service. Contact us now to learn more about the Dwyer Instruments 4B-23 Temperature Controller and other products from our extensive inventory.

Series 4B 1/4 DIN Temperature/Process Controller

Dual Control Output, RS-485 Communication, Auto-Tuning

The Series 4B 1/4 DIN Temperature/Process Controller is designed to accept thermocouple, RTD, current or voltage input and provide dual outputs for control. Available outputs include relay/relay, voltage pulse/relay, current/relay, or linear voltage/relay.

The units can be programmed for ON/OFF, PID, auto-tuning, or manual tuning control methods. The PID control is supported by 64 ramp/soak actions. The Series 4B also includes two additional alarm outputs. The second relay output can be reconfigured as a third alarm output. The alarm type can be selected from 13 different preprogrammed alarm functions. The controller features dual LED displays for local indication of process and setpoint values.

Product Applications

Control temperature for boilers, damper control based on temperature or pressure.
Hot plates / melt pots
Packaging equipment
Environmental chambers
Medical equipment
Food service equipment

Universal input accepts process transmitters, RTD’s or thermocouple signals
On/off, PID, or manual output control
RS-485 standard on all models
Stage control program for up to 64 ramp/soak actions

Specifications

Series: 4B 1/4 DIN Temperature/Process Controller
Category/Type: Process Control
Type: Process Controllers
Series: 4B 1/4 DIN Temperature/Process Controller
Inputs: Thermocouple; RTD; DC voltages or DC current.
Display: Two 4-digit; 7 segment. PV: 3/4" H (19 mm) red; SV: 1/2" H (12.7 mm) green.
Accuracy: ±0.25% span; ±1 least significant digit.
Supply Voltage: 100 to 240 VAC; 50/60 Hz or 24 VDC (depending on model).
Power Consumption: 5 VA max.
Operating Temperature: 32 to 122°F (0 to 50°C).
Memory Backup: Nonvolatile memory.
Control Output Ratings: Relay: SPDT; 5 A @ 250 VAC resistive; Voltage Pulse: 14 V; 10% to -20% (max 40 mA); Current: 4 to 20 mA; Linear Voltage: 0-10 V.
Communication: RS-485 Modbus® A-5-11/RTU communication protocol.
Weight: 15 oz (425 g).
Agency Approvals: CE; RoHS; cUL; UL.
Front Panel Rating: IP56.
