4904AD-125 | Separator | Air & Dirt | Flanged | 4" | 125 PSI | Taco

Taco 4" Air Separator (4904AD-125) The Taco 4904AD-125 Air Separator is a compact and efficient device designed to remove entrained air from fluid systems. Its primary function is to protect pumps and other sensitive components from the damaging effects of air bubbles. Featuring a durable construction, the Air Separator is built to withstand harsh industrial conditions. Its compact design allows for easy installation in various piping configurations. The separator's high-efficiency air elimination capability ensures optimal system performance and extends the lifespan of equipment. Key Features and Benefits: * Removes entrained air from fluid systems * Protects pumps and components from air damage * Compact design for easy installation * Durable construction for long-lasting operation * High-efficiency air elimination Technical Specifications: * SKU: 4904AD-125 * Brand: Taco * Type: Air Separator * Size: 4" Applications: * Pump protection in industrial systems * Air removal in fluid lines * HVAC systems * Process piping Keep your industrial systems running smoothly with the Taco 4" Air Separator (4904AD-125). Contact our HVAC supply store today for the best prices and fast shipping!

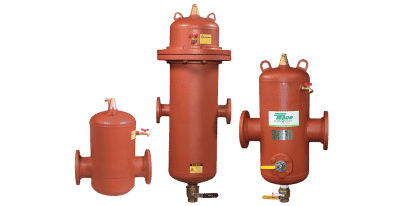

4900 Series Commercial Air & Dirt Separators

Taco 4900 Series^® Commercial Air & Dirt Separators help you save money and prolong the life of system pumps, piping and components by removing air, dirt and other contaminants from the system to prevent problems such as reduced heat transfer, loss of efficiency, pipe corrosion, pump damage, noise and the waste and cost of increased energy consumption. Patented PALL ring technology, and an optional switchable on/ off magnet, clears the system of micro-bubbles as small as 18 x 10 -6 meters, magnetite, sand, dirt and rust.

Through the use of our Pall Ring design, the 4900 Series^® uses coalescence to collect  and merge micro-bubbles and allow them to vent through the integral vent mechanism at the top of the vessel. The Pall Rings stop the momentum of dirt particles allowing them to fall to the bottom of the vessel and be blown down by the integral full port blow down valve. The optional on/ off magnet uses a high-powered neodymium magnet assembly to collect black iron oxide and magnetite. This unique feature of being able to energize the magnet with the flip of a handle allows easy maintenance, reducing the time and effort required to collect and flush magnetite from your system. These are great for systems with variable speed, ECM and constant flow requirements. Taco 4900 Series^® Commercial Air Separator feature test results from a 3rd party independent testing agency so you can be confident in the performance results of our 4900 models.

Taco 4900 Series^® Tanks are designed, constructed and tested to ASME Section VIII, Div. 1 requirements. Computerized product selection helps you choose the Air, Air/Dirt, or Air & Magnetic Dirt Separator that is just the right fit for your application requirements. All fabrication is done in-house to assure a high level of quality.
