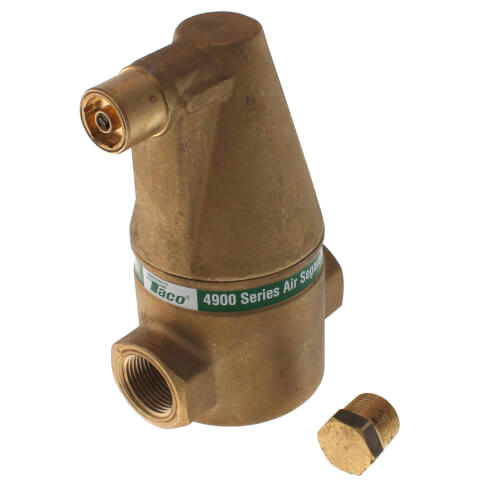

49-075T-2 | Separator | Air | NPT | 3/4 | 150 PSI | Bronze | In Line | Taco

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 49-075T-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco 49-075T-2 Documents

Datasheet Installation Instructions More Info

Overview

Details for 49-075T-2

Industrial-Grade Air Separation: NCO-49-075T-2 Taco Air SeparatorThe NCO-49-075T-2 air separator from Taco is an expertly crafted 3/4" NPT bronze air separator engineered to deliver exceptional performance in industrial air systems. Designed to effectively eliminate air and other non-condensable gases from hydronic systems, this separator plays a crucial role in maintaining system efficiency and preventing costly breakdowns.Crafted from durable bronze, this air separator offers exceptional corrosion resistance, ensuring longevity even in demanding environments. It features a compact design that allows for easy installation in space-constrained areas. The Taco NCO-49-075T-2 air separator is specifically designed to handle high flow rates, making it ideal for use in large-scale industrial applications. Its efficient operation results in reduced energy consumption and lower maintenance costs.Shop our HVAC supply store for the best prices and fast shipping on the NCO-49-075T-2 air separator and other industrial supplies. Trust our HVAC supply store for all your industrial needs.

4900 Series Bronze Air Separators

The Taco 4900 Series ^® Bronze Air Separators are designed for the complete elimination of air from closed loop heating and cooling systems up to a maximum temperature of 240°F and a maximum pressure of 150 PSI. The principle on which the 4900 Series ^® Bronze Air Separators is based is a patented and proven method of removing gases from water: the PALL ring process. The ultimate micro-bubble separation of the PALL Ring Process eliminates
the damaging effects and irritating noise caused by unwanted system air.

Performance Data

Maximum Operating Pressure: 150 PSI
Max. Operating Temperature: 240°F
Min. Operating Temperature: 25°F
Media: Water or Water/Glycol up to 50%
Max. Velocity: 5 feet/sec

Features

Connection Sizes (in.): 3/4 – 2
Available in Press Sweat, NPT
Patented PALL Ring Design
Eliminates air induced system noise
Minimal pressure loss
Vent can be closed
Large surface contact area
Protective vent plate
Rugged dependability
Maximum air removal
Convenient expansion tank connection tapping
No minimum run of pipe requirement
Bidirectional flow

Applications

Hydronic Heating & Cooling

The Taco 4900 Series Air Separators help you save money and prolong the life of system pumps, piping and components by removing air and dirt from the system to prevent reduced heat transfer, loss of efficiency, pipe corrosion, pump damage, increased energy consumption, and irritating noise.
Body Type: Brass
