478A-1 | Digital differential manometer | range -60 to 60" w.c. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 478A-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 478A-1 Documents

476A 478A Series 476A & 478A Catalog Page More Info

Overview

Details for 478A-1

Dwyer Instruments 478A-1 Digital Manometer: Precision Measurement for Industrial Applications The Dwyer Instruments 478A-1 Digital Manometer offers precise and reliable pressure measurement for industrial engineers and maintenance professionals. With a measuring range of -60 to 60 inches of water (-15 to 15 mbar), this handheld manometer is ideal for testing and monitoring pressure in various systems, including HVAC, plumbing, and industrial equipment. Featuring a large, easy-to-read digital display, the 478A-1 provides accurate pressure readings in real-time. Its rugged construction ensures durability in harsh industrial environments. The manometer is also equipped with a HOLD function to freeze the reading on the display for easy reference. Key Features: - Measuring range: -60 to 60 inches of water (-15 to 15 mbar) - Large, easy-to-read digital display - HOLD function for freezing readings - Rugged construction for durability - Ideal for testing and monitoring pressure in HVAC, plumbing, and industrial applications Shop our HVAC supply store for the Best Prices and Fast Shipping!

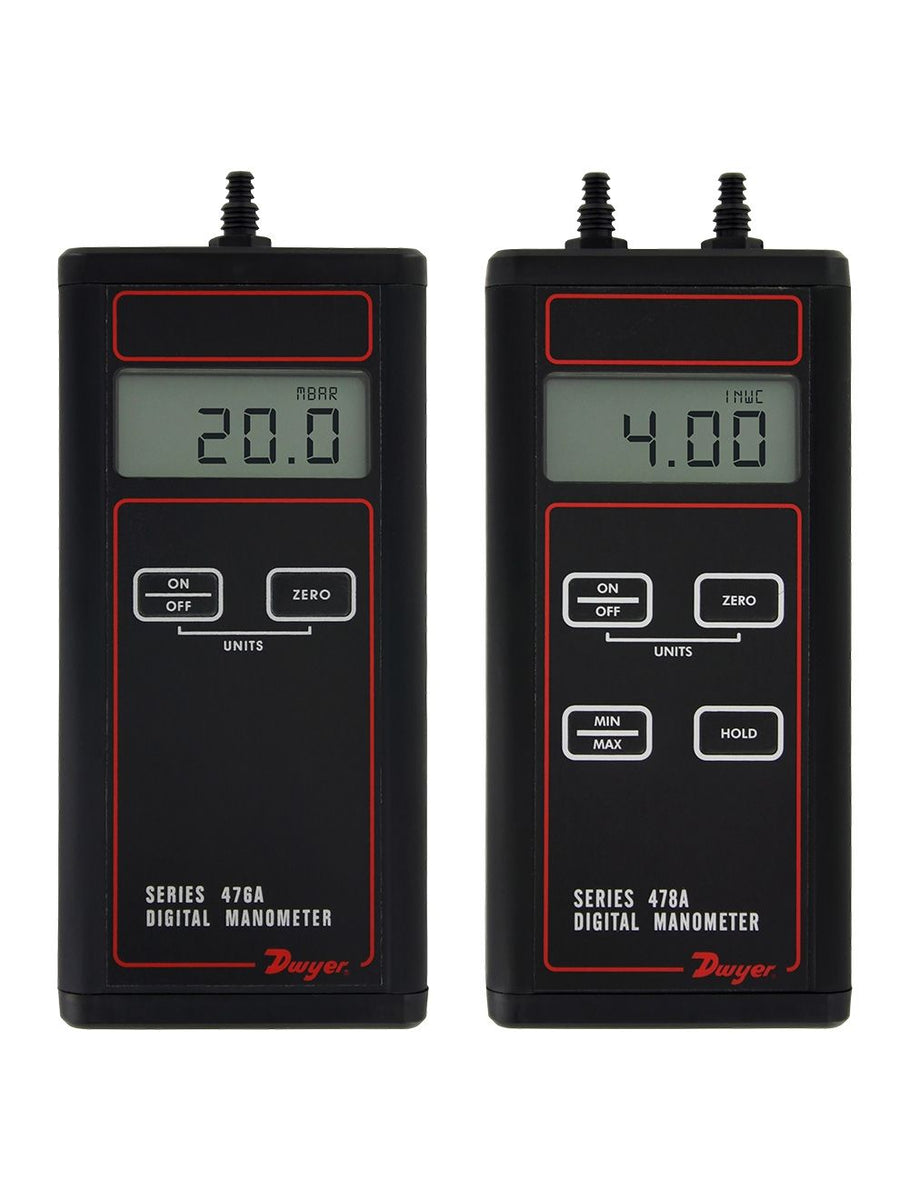

Series 476A Single Pressure & Series 478A Digital Manometer

Single & Dual Pressure Measurement, Electronic Zeroing, ±1.5% Accuracy

The Series 476A Single Pressure Differential Pressure Digital Manometer can beused to measure low pressures from -20 to 20 in w.c. with ±1.5% FS accuracy. TheSeries 478A Single Pressure Differential Pressure Digital Manometer can be usedto measure positive, negative, or differential pressures. Both units are constructed ofan extruded aluminum case for exceptional durability.

NIST CALIBRATION available in Product Configurator.

Product Applications

Verify field instrumentation performance
Adjust fuel mixture on combustion systems

One button auto-zero function
Auto power off function to conserve battery life
Rugged extruded aluminum housing
Instant selection of up to nine English/metric units
±0.5% FS accuracy

Specifications

Series: 476A Single Pressure & Series; 478A Digital Manometer
Category/Type: Pressure
Type: Manometers
Series: 476A Single Pressure & Series; 478A Digital Manometer
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±1.5% FS @ 72°F (22.2°C). Includes linearity and repeatability.
Pressure Hysteresis: ±0.1% of FS.
Pressure Limits: 5 psig (.34 bar).
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Thermal Effect: 0.05% F.S./°F.
Display: 4 digit LCD (.425"H x .234"W digits).
Power Requirements: 9 V alkaline battery; installed non-functional; user replaceable.
Process Connections: Barbed connection for use with 3/16" or 1/4" I.D. tubing.
Weight: 10.8 oz (306 g).
Agency Approvals: CE.
