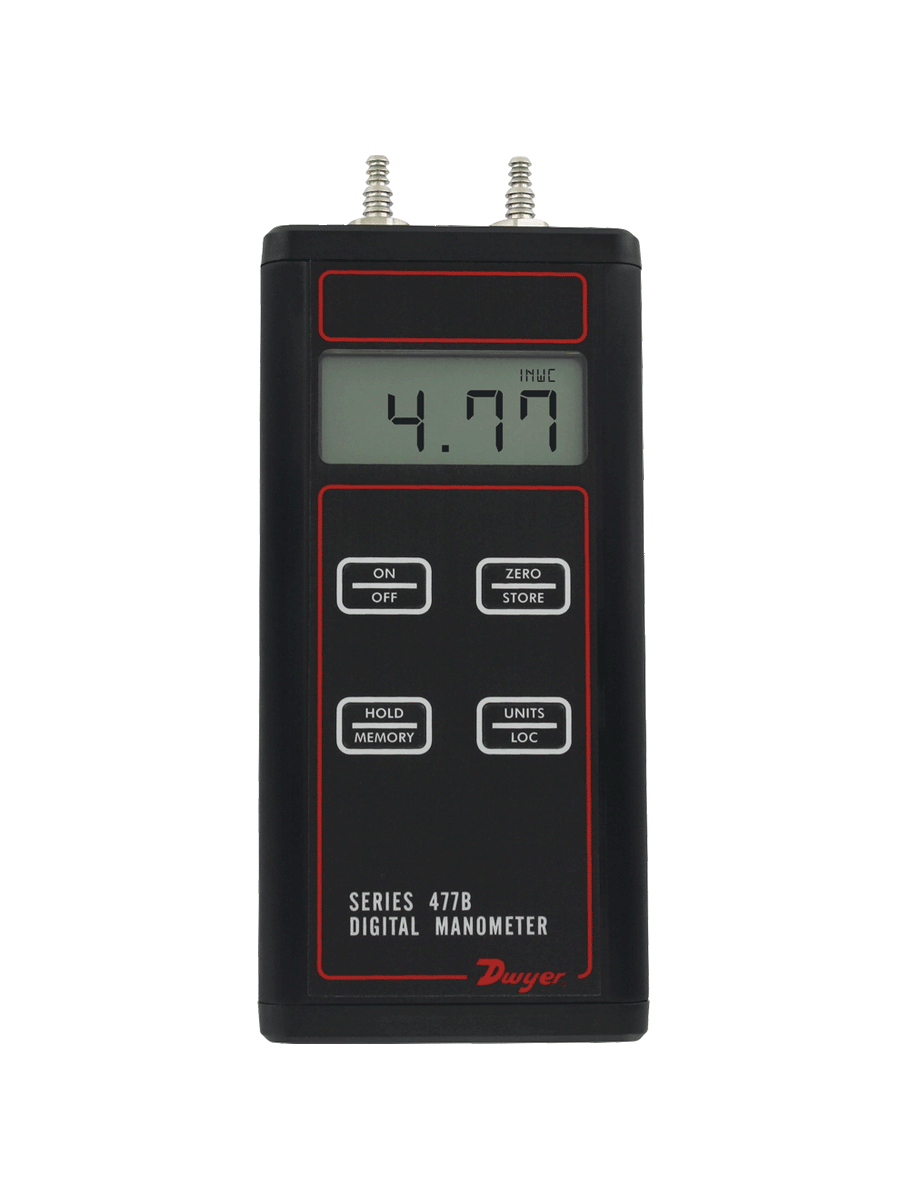

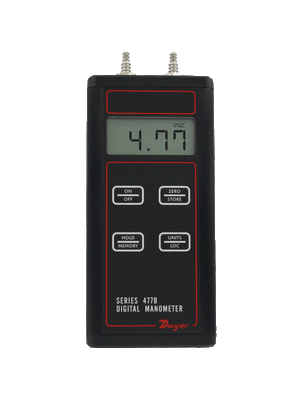

477B-3 | Handheld digital manometer | 0 to 200" w.c. (0 to 49.82 kPa) | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 477B-3

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 477B-3 Documents

Instruction Manual Series 477B Catalog Page More Info

Overview

Details for 477B-3

Dwyer Instruments 477B-3 Handheld Digital Monometer The Dwyer Instruments 477B-3 is a handheld digital monometer designed for precise pressure measurement. It features a rugged construction, a large backlit display, and intuitive controls. Key Features * Measures pressure from 0 to 200 inches of water (inH2O) * High accuracy: Â±1% of reading * Fast response time: <1 second * Bar graph display for easy visualization of pressure changes * Min/max/average recording * Auto power-off function Applications * Checking pressure in HVAC systems * Measuring fluid flow rates * Testing pressure switches * Troubleshooting pneumatic systems Benefits * Easy to use with its simple, intuitive interface * Compact and portable, ideal for field use * Durable construction for long-lasting performance * Versatile, can be used in various applications Shop our HVAC supply store today for the best prices and fast shipping on the Dwyer Instruments 477B-3 Handheld Digital Monometer.

Series 477B Handheld Digital Manometer

Precise Air Pressure Measurement, ±0.1% F.S. Accuracy

The Series 477B Handheld Digital Manometers are versatile, hand-held, battery operated manometers available in several basic ranges from 0-20 in w.c. up to 100 psi. All models measure either positive, negative or differential pressures with ±0.10% of full scale accuracy. You can select from up to seven common English and metric pressure units so conversions are not necessary. A memory function allows storage of up to 40 readings for later recall and a backlight provides auxiliary lighting for hard-to-see locations. Also standard are a hold feature plus both visual and audible overpressure alarms.

NIST CALIBRATION available in Product Configurator.

Product Applications

Lab calibration of other pressure instruments
Air velocity/air flow measurements in commercial buildings

Precise 0.1% FS accuracy provides four times better accuracy than most standard manometer/gages
Aluminum housing protects instrument against damage
40 readings in internal memory reduces time to record data

Specifications

Series: 477B Handheld Digital Manometer
Category/Type: Pressure
Type: Manometers
Series: 477B Handheld Digital Manometer
Service: Air and compatible gases.
Wetted Parts: Consult factory.
Accuracy: ±0.10% of full scale from 60 to 78F° (15.6 to 25.6°C); ±1% of full scalefrom 32 to 60 and 78 to 104°F (0 to 15 .6 and 25.6 to 40°C).
Pressure Hysteresis: ±0.1% of full scale.
Pressure Limits: See chart on catalog page.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 4-digit LCD (.425" H x .234" W digits).
Resolution: See chart on catalog page.
Power Requirements: 9 volt alkaline battery; included but not connected.
Connections: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76mm) I.D. tubing for 477B-1; 477B-2; 477B-3; 477B-4 and 477B-5 only. Twocompression fittings for use with 1/8" (3.18 mm) I.D. x 1/4" (6.35 mm) O.D. tubingfor 477B-6 and 477B-7 only.
Weight: 10.2 oz. (289 g).
Agency Approvals: CE.
