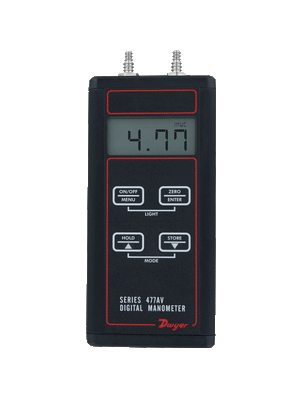

477AV-4 | Digital manometer | range 0-10.00 psi | air velocity/flow modes. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 477AV-4

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 477AV-4 Documents

Instruction Manual Series 477AV Catalog Page 477AV More Info

Overview

Details for 477AV-4

477AV-4 Digital Manometer by Dwyer Instruments Dwyer Instruments' 477AV-4 Digital Manometer is a robust tool designed for precise pressure measurement in industrial and maintenance applications. Its compact size and lightweight design allow for easy portability, while the large, easy-to-read display provides clear readings even in low-light conditions. This manometer measures pressure in a wide range of units, including psi, inches of water column, and millibars. The maximum pressure capacity of 30 psi makes it suitable for various applications, such as testing pressure regulators, verifying vacuum levels, and measuring gas pressures. The 477AV-4 features a rugged construction with a chemical-resistant polycarbonate case and a stainless steel sensor. This ensures durability and reliability even in harsh environments. The built-in backlight and zeroing function enhance usability and accuracy. Key Features: * Range: 0 to 30 psi * Accuracy: Â±0.5% of full scale * Units: psi, inches of water column, millibars * Compact and portable design * Large, easy-to-read display * Backlight for low-light conditions * Zeroing function for accurate measurements * Chemical-resistant polycarbonate case * Stainless steel sensor Applications: * Testing pressure regulators * Verifying vacuum levels * Measuring gas pressures * HVAC system diagnostics * Industrial maintenance and troubleshooting Our HVAC supply store offers the 477AV-4 Digital Manometer at competitive prices with fast shipping. Contact us today for inquiries or to place your order.

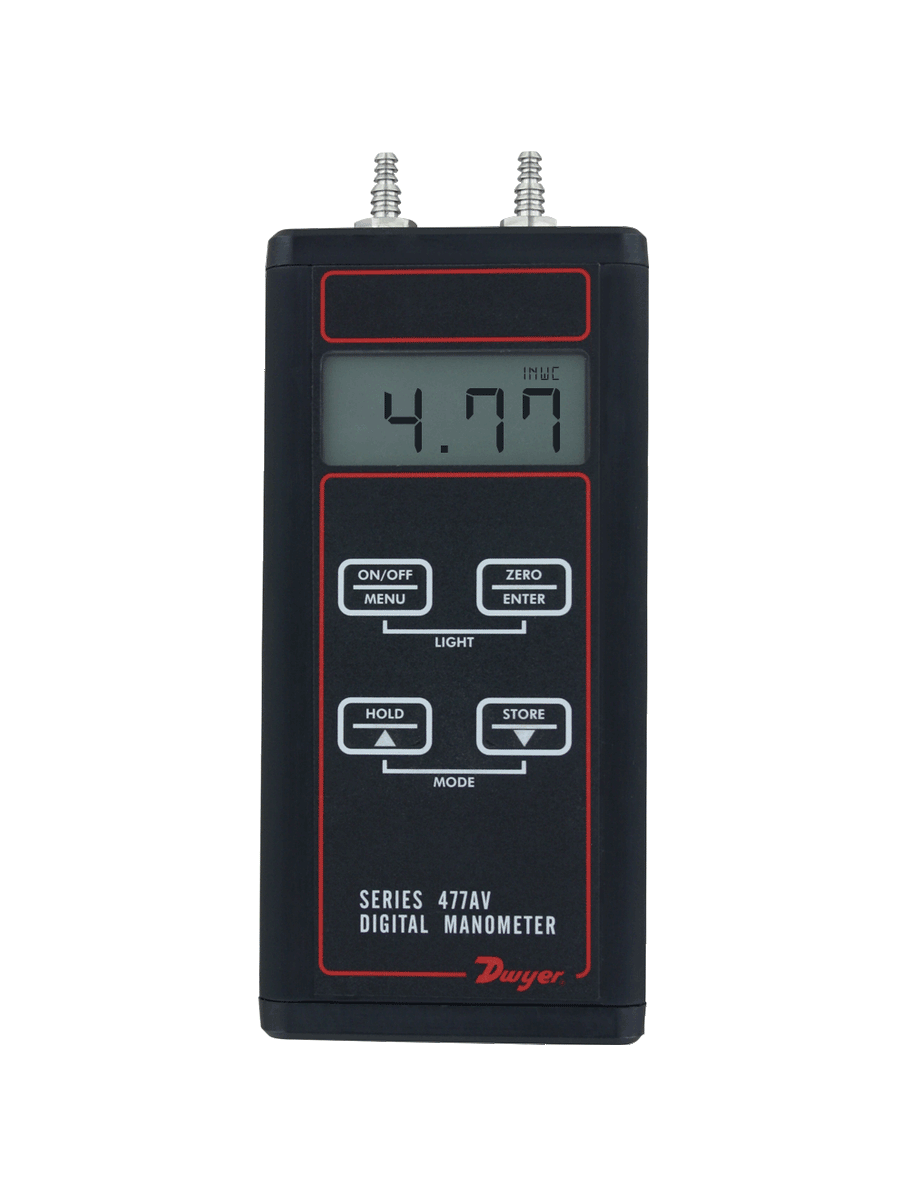

Series 477AV Handheld Digital Manometer

Measures Pressure, Flow and Velocity; ±0.5% Accuracy

The Series 477AV Handheld Digital Manometer is now available with pressure, flow, and velocity measurements along with a number of other convenient features. The built-in air velocity and flow calculations provide accuracy and conserve time and error associated with manual calculations. Also featured on this unit are adjustable zero and span values for calibrating in the field, as well as a damping feature to compensate for the fluctuating of readings.

NIST CALIBRATION available in Product Configurator.

Product Applications

Air flow monitoring, when used with a Dwyer® pitot tube
Duct static pressure
Commercial air balancing
Building-zone pressure

Calculates and displays air velocity and volumetric air flow
Rugged aluminum case protects instrument from damage during transport/use
9 selectable English and metric engineering units
Large, easy to read display with backlight for use in dark areas
Stores up to 40 readings with minimum, maximum and average statistics
Convenient all-in-one air velocity kit option available

Specifications

Series: 477AV Handheld Digital Manometer
Category/Type: Pressure
Type: Manometers
Series: 477AV Handheld Digital Manometer
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% FS; 60 to 78°F (15.6to 25.6°C); ±1.5% FS from 32 to 60°Fand 78 to 104°F (0 to 15.6°C and 25.6to 40.0°C).
Pressure Hysteresis: ±0.1% of FS.
Pressure Limits: See chart on catalog page.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 0.42" (10.6 mm) 4 digit LCD.
Resolution: See chart on catalog page.
Units of Pressure: in w.c.; ft. w.c.; inHg; psi; oz/in²; mm w.c.; cm w.c.; mm Hg;mbar; Pa; kPa; hPa.
Units of Velocity: fpm; fps; mph; m/h; m/s; k/h; knot.
Units of Flow: cfm; m3/h; m3/s.
Power Requirements: 9 V Alkaline battery; installed non-functional; user replaceable.
Weight: 10.2 oz (289 g).
Process Connections: Two barbed connections for use with 1/8" (3.18mm) or 3/16" (4.76 mm) ID tubing. Two compression fittings for use with 1/8"(3.18 mm) ID x 1/4" (6.35 mm) OD tubing for 477AV-7 and 477AV-8 only.
Compliance: CE.
