476A-0 | -20/20" Digital Monometer | Dwyer Instruments

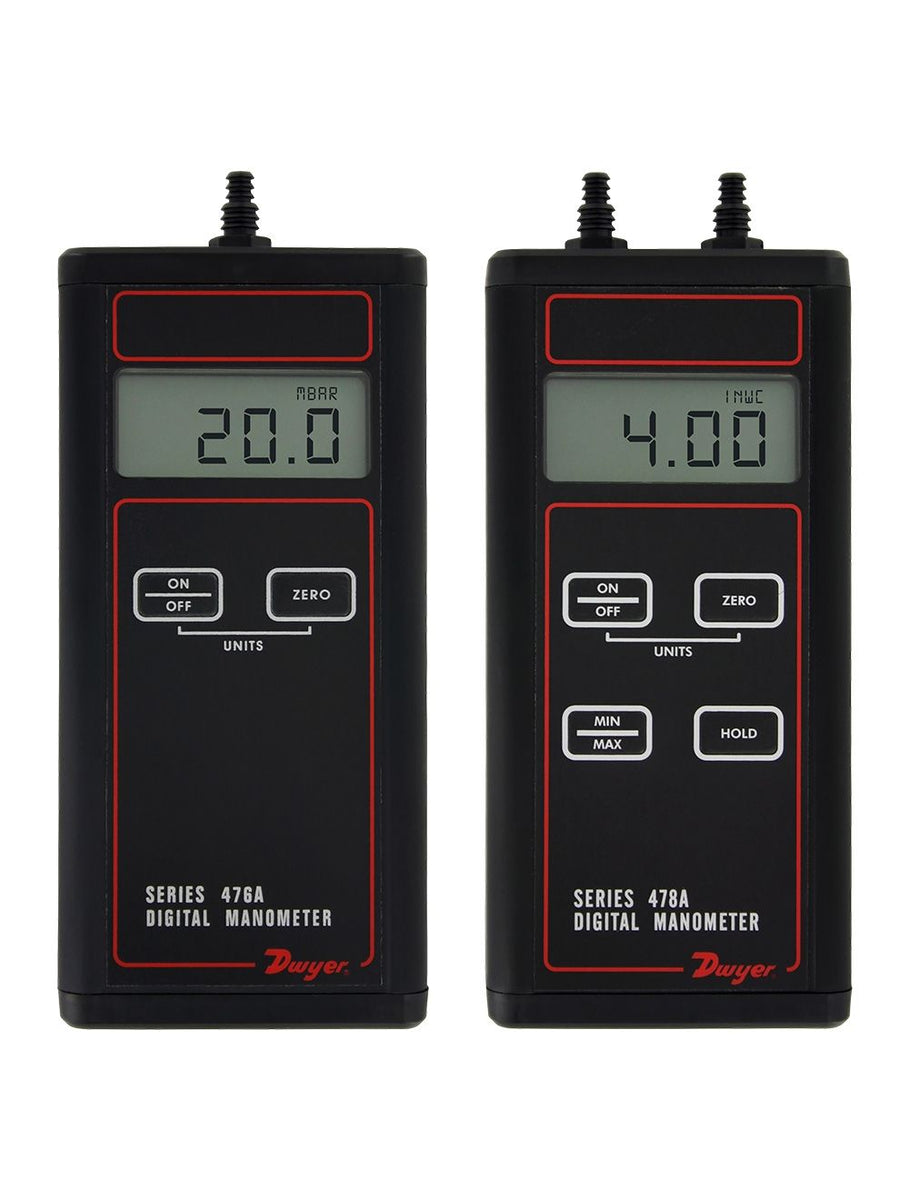

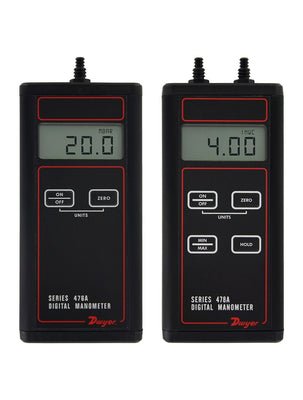

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 476A-0

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 476A-0 Documents

476A 478A Series 476A & 478A Catalog Page More Info

Overview

Details for 476A-0

Dwyer Instruments NCO-476A-0 Digital Monometer The NCO-476A-0 Digital Monometer from Dwyer Instruments is a high-precision instrument designed to measure pressure with exceptional accuracy. Featuring a wide measurement range of -20 to 20 inches of water (-5 to 5 kPa), this monometer is ideal for a variety of industrial applications. Its compact and portable design makes it convenient to transport and use in tight spaces or on the go. The bright, backlit digital display provides clear and easy-to-read measurements, ensuring accuracy in even low-light conditions. With its rugged construction and durable materials, this monometer is built to withstand harsh industrial environments. The NCO-476A-0 Digital Monometer is engineered for precision, reliability, and ease of use. Its advanced technology ensures consistent and accurate pressure measurements, making it an invaluable tool for industrial engineers and maintenance professionals. Shop our HVAC supply store for the Best Prices and Fast Shipping on the Dwyer Instruments NCO-476A-0 Digital Monometer!

Series 476A Single Pressure & Series 478A Digital Manometer

Single & Dual Pressure Measurement, Electronic Zeroing, ±1.5% Accuracy

The Series 476A Single Pressure Differential Pressure Digital Manometer can beused to measure low pressures from -20 to 20 in w.c. with ±1.5% FS accuracy. TheSeries 478A Single Pressure Differential Pressure Digital Manometer can be usedto measure positive, negative, or differential pressures. Both units are constructed ofan extruded aluminum case for exceptional durability.

NIST CALIBRATION available in Product Configurator.

Product Applications

Verify field instrumentation performance
Adjust fuel mixture on combustion systems

One button auto-zero function
Auto power off function to conserve battery life
Rugged extruded aluminum housing
Instant selection of up to nine English/metric units
±0.5% FS accuracy

Specifications

Series: 476A Single Pressure & Series; 478A Digital Manometer
Category/Type: Pressure
Type: Manometers
Series: 476A Single Pressure & Series; 478A Digital Manometer
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±1.5% FS @ 72°F (22.2°C). Includes linearity and repeatability.
Pressure Hysteresis: ±0.1% of FS.
Pressure Limits: 5 psig (.34 bar).
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Thermal Effect: 0.05% F.S./°F.
Display: 4 digit LCD (.425"H x .234"W digits).
Power Requirements: 9 V alkaline battery; installed non-functional; user replaceable.
Process Connections: Barbed connection for use with 3/16" or 1/4" I.D. tubing.
Weight: 10.8 oz (306 g).
Agency Approvals: CE.
