475-6-FM | Handheld digital manometer | range 0-30.00 psi (2.069 bar) | max. pressure 60 psig. | Dwyer Instruments

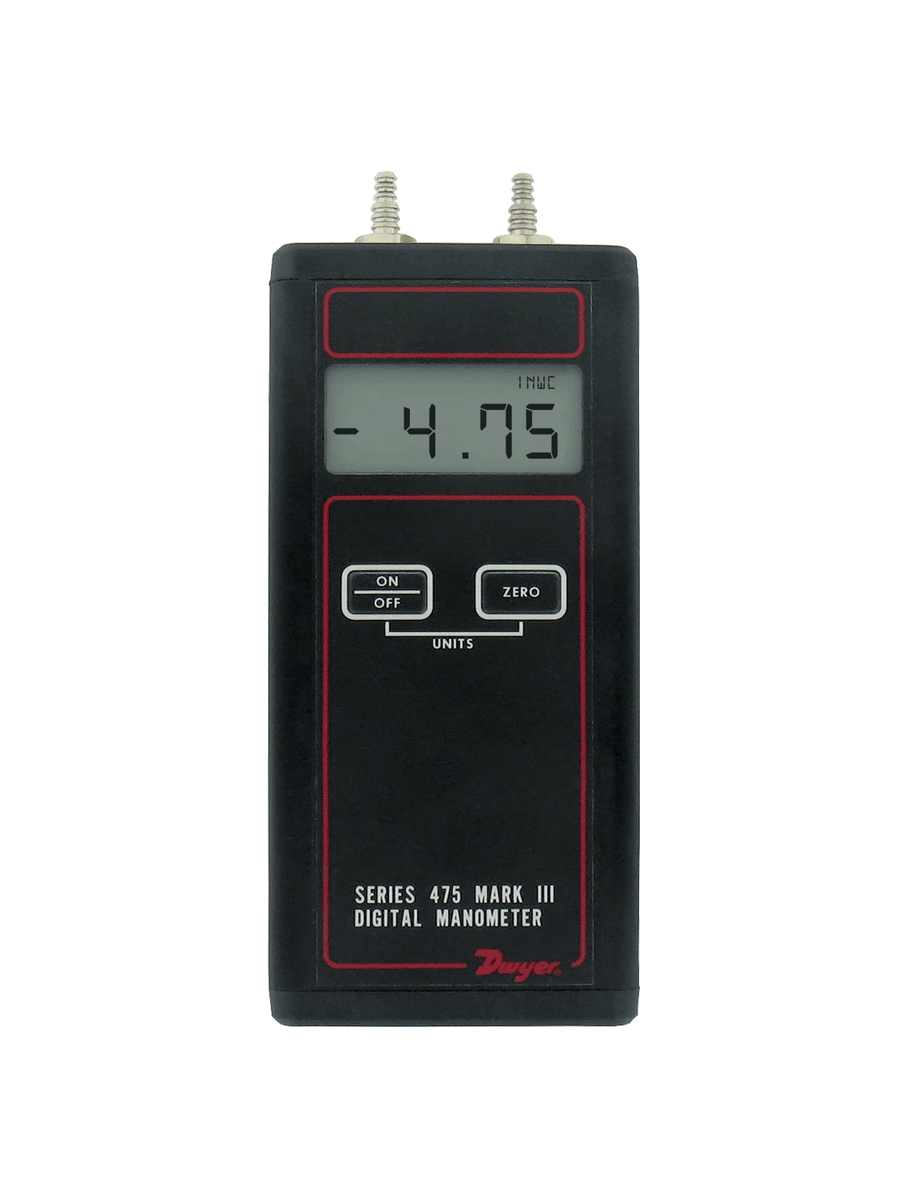

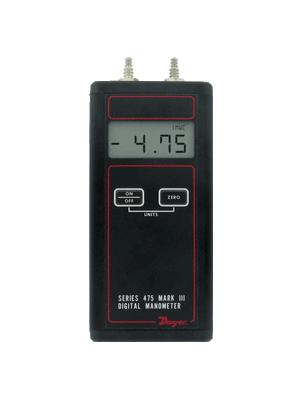

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 475-6-FM

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 475-6-FM Documents

Instructional Manual Series 475 Catalog Page More Info

Overview

Details for 475-6-FM

The Dwyer Instruments NCO-475-6-FM is a 0-30#MKII digital manometer designed for precise pressure measurement in industrial and maintenance applications. This manometer provides accurate and reliable readings, making it an essential tool for ensuring optimal system performance and safety. Its advanced digital display offers clear and easy-to-read measurements, allowing for quick and accurate readings. The compact and rugged design makes it ideal for field use, while its versatility allows it to measure various types of pressure, including positive, negative, and differential pressures. Key Features: * 0-30 psig measurement range * Digital display for precise readings * Easy-to-use interface * Compact and rugged design * Versatile for various pressure types Applications: * HVAC systems * Industrial machinery * Calibration and testing * Maintenance and troubleshooting Trust Dwyer Instruments' NCO-475-6-FM digital manometer for reliable pressure measurement solutions. Contact us at our HVAC supply store today for the best prices and fast shipping on Dwyer Instruments products!

Series 475 Intrinsically Safe Handheld Digital Manometer

Ranges from 1" w.c. to 150 psid, ±0.5% Accuracy

The Series 475 Handheld Digital Manometer measures positive, negative, or differential pressures of air and natural gases in ranges from 1 in w.c. (0.249 kPa) to 150 psid (10.34 bar). The dual push pads on the front panel control the on/off, auto zero, and pressure unit selection, allowing for simple operation with no set up needed. When used with a Dwyer® Pitot tube, the Series 475 can also be used as an air velocity gage.

NIST CALIBRATION available in Product Configurator.

Product Applications

Monitoring natural gas pressures on boilers and other combustion equipment
Air velocity monitoring, when used with a Dwyer® Pitot tube and AV calculator
Field calibration of other instruments
Monitoring or troubleshooting HVAC systems

Rugged aluminum case protects instrument from damage during transport/use
Large, easy to read LCD and simple operation
FM approved to be intrinsically safe in hazardous locations, Class 1, Div 2, GroupsA, B, C, D, T4 Ta = 70°C

Specifications

Series: 475 Intrinsically Safe Handheld Digital Manometer
Category/Type: Pressure
Type: Manometers
Series: 475 Intrinsically Safe Handheld Digital Manometer
Service: Air and compatible combustible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% Full Scale; 60 to 78°F (15.6 to 25.6°C); ±1.5% Full Scale from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C).
Pressure Hysteresis: ±0.1% of Full Scale.
Pressure Limits: See catalog page.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 0.42" (10.6 mm) 4-digit LCD.
Resolution: See Ordering page.
Power Requirements: 9 V alkaline battery; installed non-functional; user replaceable.
Weight: 10.8 oz. (306 g).
Process Connections: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing. Two compression fittings for use with 1/8" (3.18 mm) I.D. x 1/4" (6.35 mm) O.D. tubing for 475-7 & 475-8 only.
Agency Approvals: CE; FM.
