475-3-FM | Handheld digital manometer | range 0-200.0" w.c. (49.82 kPa) | max. pressure 30 psig. | Dwyer Instruments

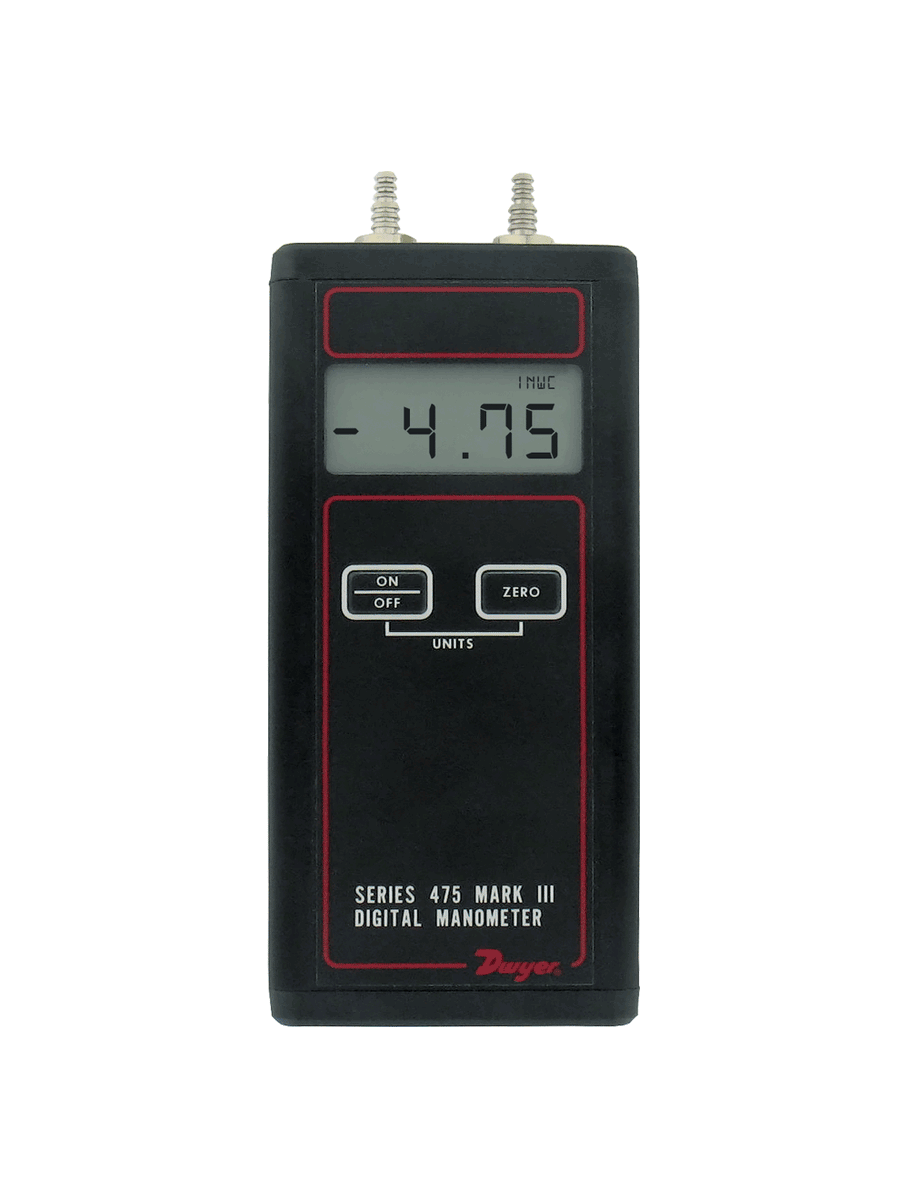

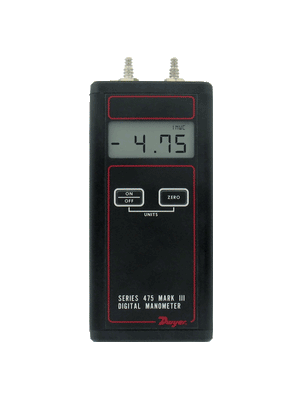

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 475-3-FM

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 475-3-FM Documents

Instructional Manual Series 475 Catalog Page More Info

Overview

Details for 475-3-FM

Introducing the Dwyer Instruments NCO-475-3-FM Digital Manometer, the Precision Instrument for HVAC and Industrial Applications. The NCO-475-3-FM is a handheld digital manometer designed to measure pressure with exceptional accuracy. Its wide range of 0-200" of water column makes it ideal for HVAC technicians, industrial engineers, and maintenance professionals. Key Features: - High accuracy: Provides precise pressure measurements within 0.5% of full scale. - Differential pressure measurement: Measures the pressure difference between two points. - Min/Max/Average recording: Captures and stores minimum, maximum, and average pressure values for easy reference. - Large backlit display: Ensures clear and easy readings in various lighting conditions. - Compact and portable: Its ergonomic design and lightweight construction allow for convenient one-handed operation. From ductwork testing to filter monitoring, the Dwyer Instruments NCO-475-3-FM Digital Manometer is the trusted tool for professionals who demand precision and reliability. Upgrade your toolkit today!

Series 475 Intrinsically Safe Handheld Digital Manometer

Ranges from 1" w.c. to 150 psid, ±0.5% Accuracy

The Series 475 Handheld Digital Manometer measures positive, negative, or differential pressures of air and natural gases in ranges from 1 in w.c. (0.249 kPa) to 150 psid (10.34 bar). The dual push pads on the front panel control the on/off, auto zero, and pressure unit selection, allowing for simple operation with no set up needed. When used with a Dwyer® Pitot tube, the Series 475 can also be used as an air velocity gage.

NIST CALIBRATION available in Product Configurator.

Product Applications

Monitoring natural gas pressures on boilers and other combustion equipment
Air velocity monitoring, when used with a Dwyer® Pitot tube and AV calculator
Field calibration of other instruments
Monitoring or troubleshooting HVAC systems

Rugged aluminum case protects instrument from damage during transport/use
Large, easy to read LCD and simple operation
FM approved to be intrinsically safe in hazardous locations, Class 1, Div 2, GroupsA, B, C, D, T4 Ta = 70°C

Specifications

Series: 475 Intrinsically Safe Handheld Digital Manometer
Category/Type: Pressure
Type: Manometers
Series: 475 Intrinsically Safe Handheld Digital Manometer
Service: Air and compatible combustible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% Full Scale; 60 to 78°F (15.6 to 25.6°C); ±1.5% Full Scale from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C).
Pressure Hysteresis: ±0.1% of Full Scale.
Pressure Limits: See catalog page.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 0.42" (10.6 mm) 4-digit LCD.
Resolution: See Ordering page.
Power Requirements: 9 V alkaline battery; installed non-functional; user replaceable.
Weight: 10.8 oz. (306 g).
Process Connections: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing. Two compression fittings for use with 1/8" (3.18 mm) I.D. x 1/4" (6.35 mm) O.D. tubing for 475-7 & 475-8 only.
Agency Approvals: CE; FM.
