475-2-FM | Handheld digital manometer | range 0-40.00" w.c. (9.96 kPa) | max. pressure 10 psig. | Dwyer Instruments

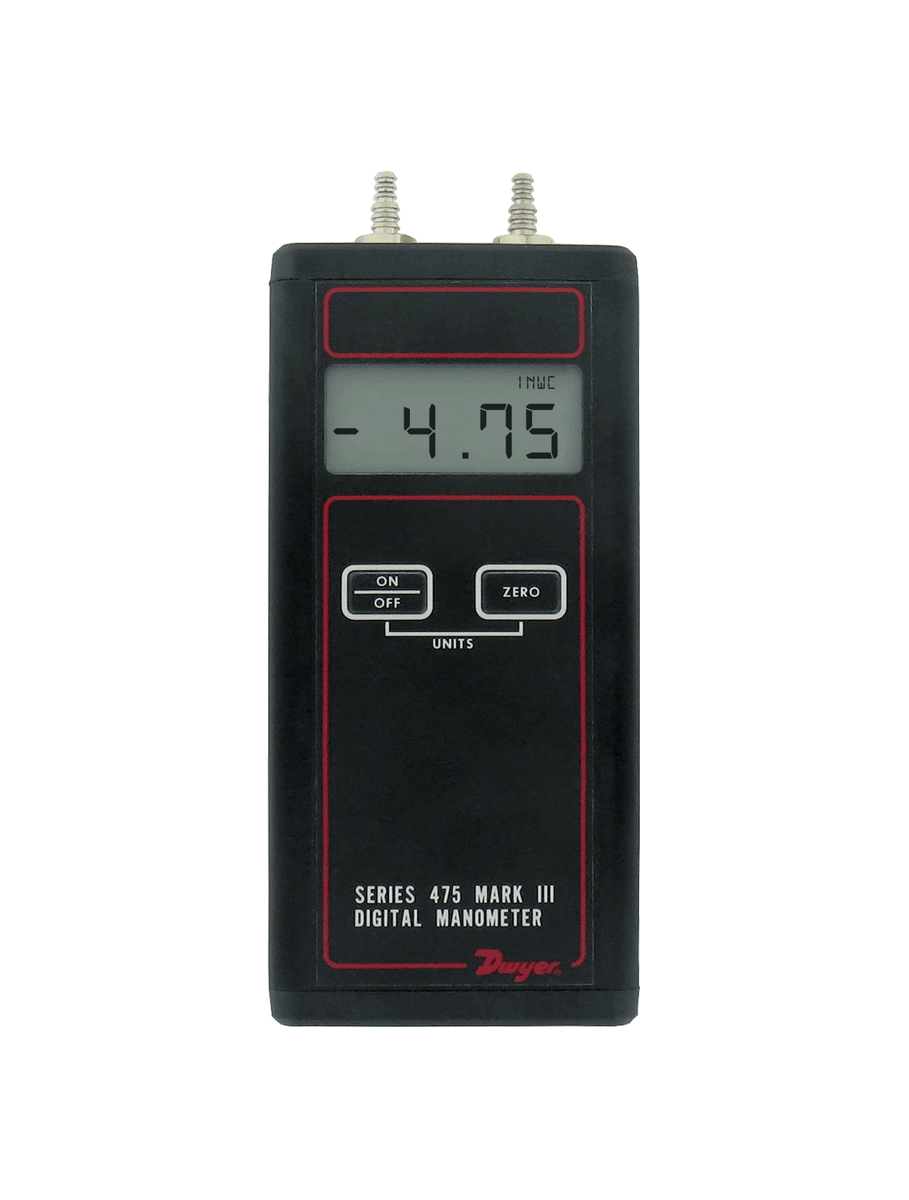

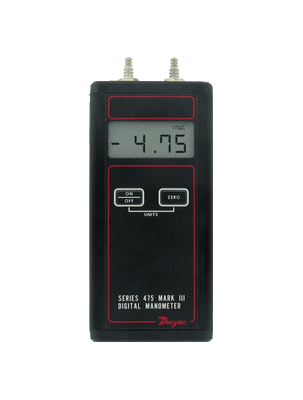

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 475-2-FM

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 475-2-FM Documents

Instructional Manual Series 475 Catalog Page More Info

Overview

Details for 475-2-FM

Dwyer Instruments NCO-475-2-FM Digital Handheld Manometer The Dwyer Instruments NCO-475-2-FM is a highly accurate and versatile digital handheld manometer designed for measuring pressure and vacuum in a wide range of industrial applications. This rugged and reliable instrument features a large, easy-to-read LCD display, a durable housing, and a compact design for easy portability. The NCO-475-2-FM utilizes a high-precision piezoresistive pressure sensor to measure pressure and vacuum over a range of 0 to 40 inches of water column (0 to 100 mmH2O). The manometer's intuitive controls allow users to quickly and easily switch between pressure and vacuum readings, as well as select different measurement units. Key features: * Measurement Range: 0 to 40 inches of water column (0 to 100 mmH2O) * Accuracy: Â±0.5% of full scale * Resolution: 0.1 inches of water column (0.25 mmH2O) * Large, easy-to-read LCD display * Durable housing with protective rubber boot * Compact design for easy portability The Dwyer Instruments NCO-475-2-FM is an essential tool for industrial engineers and maintenance professionals who need to monitor pressure and vacuum in applications such as HVAC systems, fluid power circuits, and process control equipment. Order your Dwyer Instruments NCO-475-2-FM Digital Handheld Manometer today from our HVAC supply store! We offer the best prices and fast shipping on all your industrial supply needs.

Series 475 Intrinsically Safe Handheld Digital Manometer

Ranges from 1" w.c. to 150 psid, ±0.5% Accuracy

The Series 475 Handheld Digital Manometer measures positive, negative, or differential pressures of air and natural gases in ranges from 1 in w.c. (0.249 kPa) to 150 psid (10.34 bar). The dual push pads on the front panel control the on/off, auto zero, and pressure unit selection, allowing for simple operation with no set up needed. When used with a Dwyer® Pitot tube, the Series 475 can also be used as an air velocity gage.

NIST CALIBRATION available in Product Configurator.

Product Applications

Monitoring natural gas pressures on boilers and other combustion equipment
Air velocity monitoring, when used with a Dwyer® Pitot tube and AV calculator
Field calibration of other instruments
Monitoring or troubleshooting HVAC systems

Rugged aluminum case protects instrument from damage during transport/use
Large, easy to read LCD and simple operation
FM approved to be intrinsically safe in hazardous locations, Class 1, Div 2, GroupsA, B, C, D, T4 Ta = 70°C

Specifications

Series: 475 Intrinsically Safe Handheld Digital Manometer
Category/Type: Pressure
Type: Manometers
Series: 475 Intrinsically Safe Handheld Digital Manometer
Service: Air and compatible combustible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% Full Scale; 60 to 78°F (15.6 to 25.6°C); ±1.5% Full Scale from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C).
Pressure Hysteresis: ±0.1% of Full Scale.
Pressure Limits: See catalog page.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 0.42" (10.6 mm) 4-digit LCD.
Resolution: See Ordering page.
Power Requirements: 9 V alkaline battery; installed non-functional; user replaceable.
Weight: 10.8 oz. (306 g).
Process Connections: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing. Two compression fittings for use with 1/8" (3.18 mm) I.D. x 1/4" (6.35 mm) O.D. tubing for 475-7 & 475-8 only.
Agency Approvals: CE; FM.
