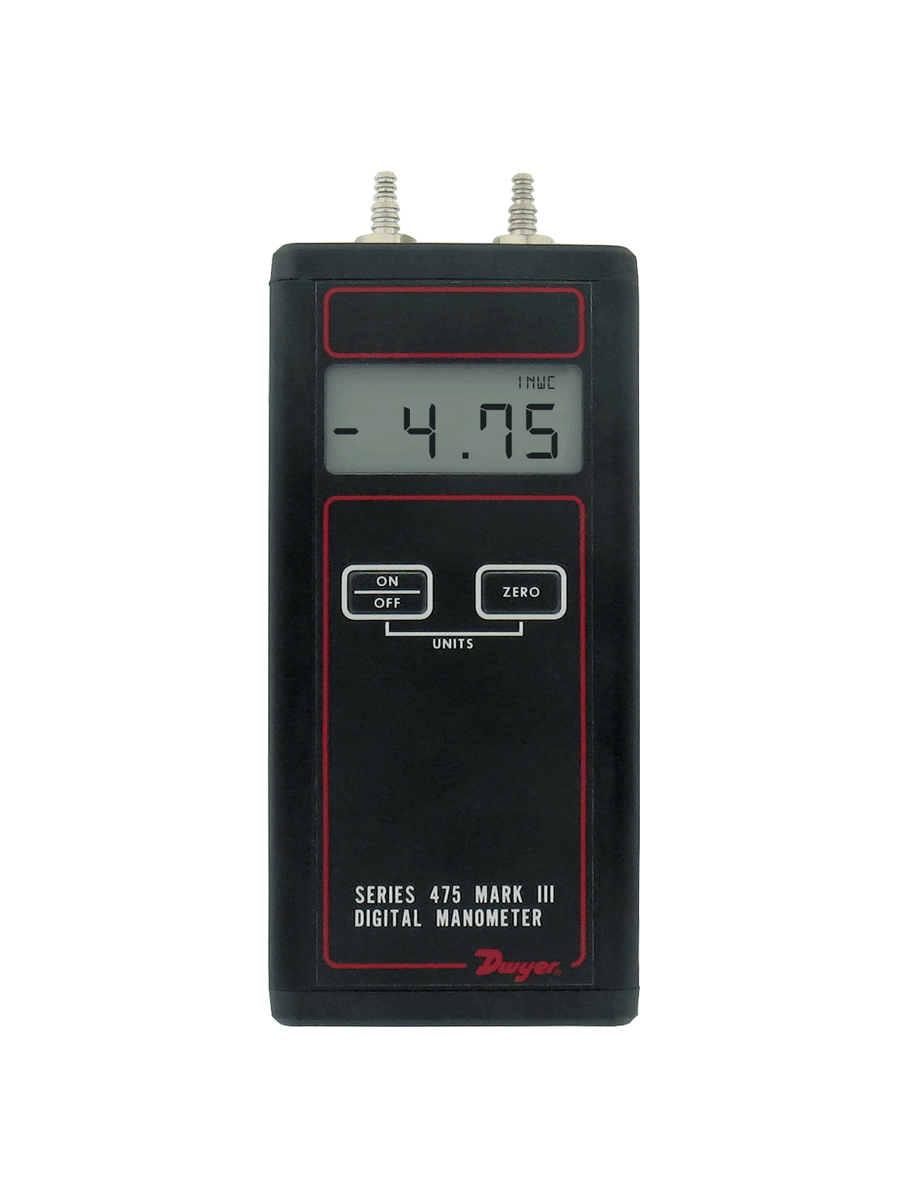

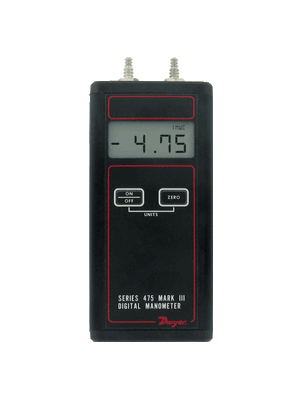

475-000-FM | Handheld digital manometer | range 0-1.000" w.c. (.2491 kPa) | max. pressure 5 psig. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 475-000-FM

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 475-000-FM Documents

Instructional Manual Series 475 Catalog Page More Info

Overview

Details for 475-000-FM

Precise Pressure Measurement for Industrial Applications: Dwyer Instruments 475-000-FM Digital ManometerThe Dwyer Instruments 475-000-FM Digital Manometer provides accurate and reliable pressure readings for various industrial applications. Featuring a measurement range of 0-1.0" WC, this handheld device offers precise readings for low-pressure systems. Its sleek design and intuitive interface make it an ideal tool for engineers and maintenance professionals. Durable and Convenient: Engineered with a rugged construction, this digital manometer withstands demanding work environments. Its compact size and lightweight design allow for easy portability and comfortable handling. The large backlit display ensures clear visibility, even in low-light conditions. Versatile Functionality: The 475-000-FM manometer measures both positive and negative pressure, making it suitable for a wide range of applications. Its high accuracy ensures accurate readings, while its fast response time provides real-time data. Additionally, the unit can be zeroed at any point, allowing for precise differential pressure measurements. Applications: - HVAC testing and balancing - Ductwork pressure measurements - Filter monitoring - Leak detection - Combustion analysis Our HVAC supply store: Your Trusted Source for Industrial Equipment At Our HVAC supply store, we offer the best prices and fast shipping for your industrial equipment needs. Trust us to provide you with high-quality products and exceptional customer service. Contact us today to place your order or for more information on the Dwyer Instruments 475-000-FM Digital Manometer.

Series 475 Intrinsically Safe Handheld Digital Manometer

Ranges from 1" w.c. to 150 psid, ±0.5% Accuracy

The Series 475 Handheld Digital Manometer measures positive, negative, or differential pressures of air and natural gases in ranges from 1 in w.c. (0.249 kPa) to 150 psid (10.34 bar). The dual push pads on the front panel control the on/off, auto zero, and pressure unit selection, allowing for simple operation with no set up needed. When used with a Dwyer® Pitot tube, the Series 475 can also be used as an air velocity gage.

NIST CALIBRATION available in Product Configurator.

Product Applications

Monitoring natural gas pressures on boilers and other combustion equipment
Air velocity monitoring, when used with a Dwyer® Pitot tube and AV calculator
Field calibration of other instruments
Monitoring or troubleshooting HVAC systems

Rugged aluminum case protects instrument from damage during transport/use
Large, easy to read LCD and simple operation
FM approved to be intrinsically safe in hazardous locations, Class 1, Div 2, GroupsA, B, C, D, T4 Ta = 70°C

Specifications

Series: 475 Intrinsically Safe Handheld Digital Manometer
Category/Type: Pressure
Type: Manometers
Series: 475 Intrinsically Safe Handheld Digital Manometer
Service: Air and compatible combustible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% Full Scale; 60 to 78°F (15.6 to 25.6°C); ±1.5% Full Scale from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C).
Pressure Hysteresis: ±0.1% of Full Scale.
Pressure Limits: See catalog page.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 0.42" (10.6 mm) 4-digit LCD.
Resolution: See Ordering page.
Power Requirements: 9 V alkaline battery; installed non-functional; user replaceable.
Weight: 10.8 oz. (306 g).
Process Connections: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing. Two compression fittings for use with 1/8" (3.18 mm) I.D. x 1/4" (6.35 mm) O.D. tubing for 475-7 & 475-8 only.
Agency Approvals: CE; FM.
