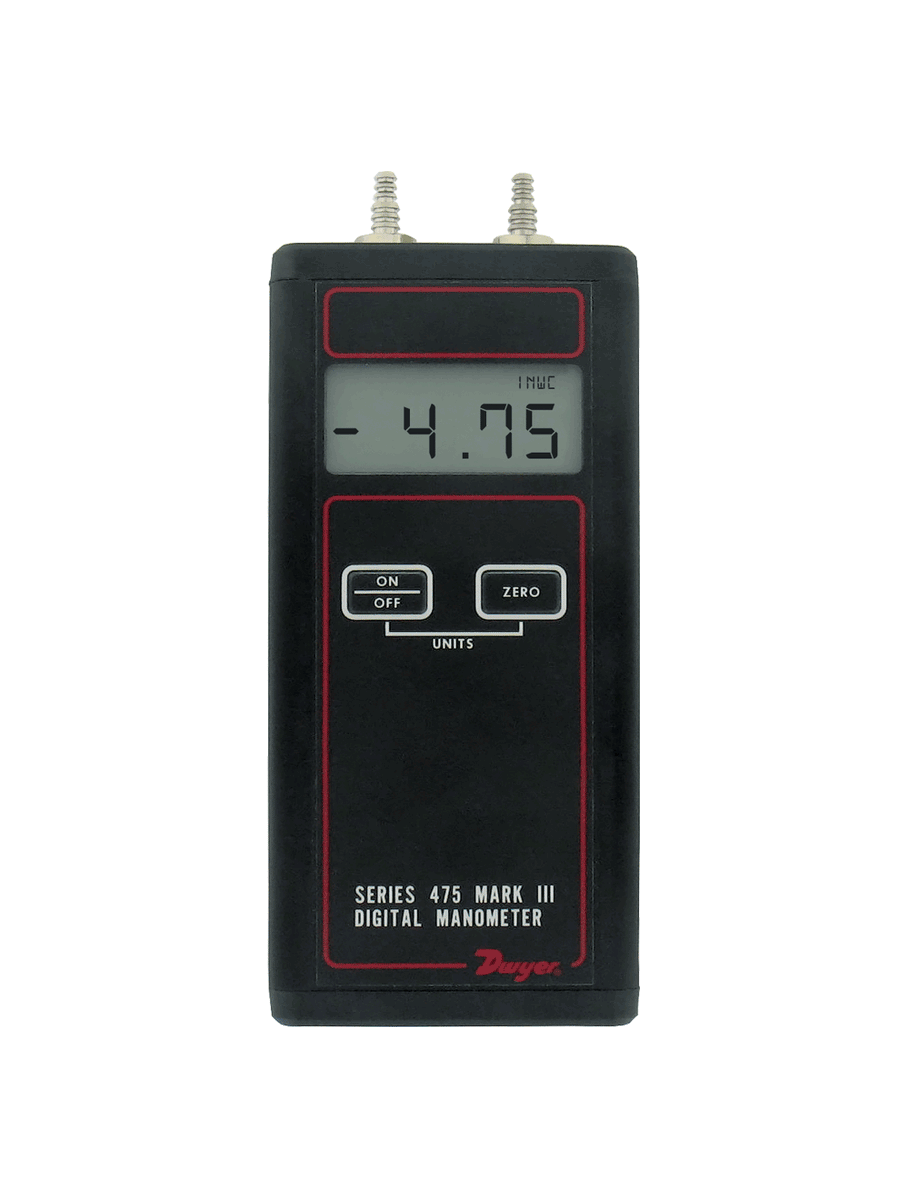

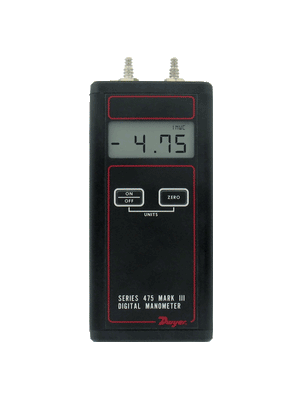

475-00-FM | Handheld digital manometer | range 0-4.000" w.c. (0.996 kPa) | max. pressure 5 psig. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 475-00-FM

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 475-00-FM Documents

Instructional Manual Series 475 Catalog Page More Info

Overview

Details for 475-00-FM

Dwyer Instruments NCO-475-00-FM Handheld Digital Manometer The Dwyer Instruments NCO-475-00-FM is a convenient and reliable handheld digital manometer designed for precise pressure measurements in various industrial settings. It features a 0-4" wc (water column) measurement range, ensuring accurate readings for low-pressure applications. Its compact and lightweight design allows for easy portability, making it ideal for maintenance professionals and engineers working in confined spaces or on-the-go. The digital display provides clear and accurate readings, enabling quick and reliable pressure monitoring. The NCO-475-00-FM is versatile and can be used for a wide range of applications, including: * Duct pressure testing * Blower and fan performance evaluation * Gas pressure measurement * Differential pressure monitoring With its durable construction and user-friendly features, the Dwyer Instruments NCO-475-00-FM Handheld Digital Manometer is an essential tool for industrial professionals seeking highly accurate and portable pressure measurement solutions. For the best prices and fast shipping on your essential industrial products, choose our HVAC supply store today!

Series 475 Intrinsically Safe Handheld Digital Manometer

Ranges from 1" w.c. to 150 psid, ±0.5% Accuracy

The Series 475 Handheld Digital Manometer measures positive, negative, or differential pressures of air and natural gases in ranges from 1 in w.c. (0.249 kPa) to 150 psid (10.34 bar). The dual push pads on the front panel control the on/off, auto zero, and pressure unit selection, allowing for simple operation with no set up needed. When used with a Dwyer® Pitot tube, the Series 475 can also be used as an air velocity gage.

NIST CALIBRATION available in Product Configurator.

Product Applications

Monitoring natural gas pressures on boilers and other combustion equipment
Air velocity monitoring, when used with a Dwyer® Pitot tube and AV calculator
Field calibration of other instruments
Monitoring or troubleshooting HVAC systems

Rugged aluminum case protects instrument from damage during transport/use
Large, easy to read LCD and simple operation
FM approved to be intrinsically safe in hazardous locations, Class 1, Div 2, GroupsA, B, C, D, T4 Ta = 70°C

Specifications

Series: 475 Intrinsically Safe Handheld Digital Manometer
Category/Type: Pressure
Type: Manometers
Series: 475 Intrinsically Safe Handheld Digital Manometer
Service: Air and compatible combustible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% Full Scale; 60 to 78°F (15.6 to 25.6°C); ±1.5% Full Scale from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C).
Pressure Hysteresis: ±0.1% of Full Scale.
Pressure Limits: See catalog page.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 0.42" (10.6 mm) 4-digit LCD.
Resolution: See Ordering page.
Power Requirements: 9 V alkaline battery; installed non-functional; user replaceable.
Weight: 10.8 oz. (306 g).
Process Connections: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing. Two compression fittings for use with 1/8" (3.18 mm) I.D. x 1/4" (6.35 mm) O.D. tubing for 475-7 & 475-8 only.
Agency Approvals: CE; FM.
