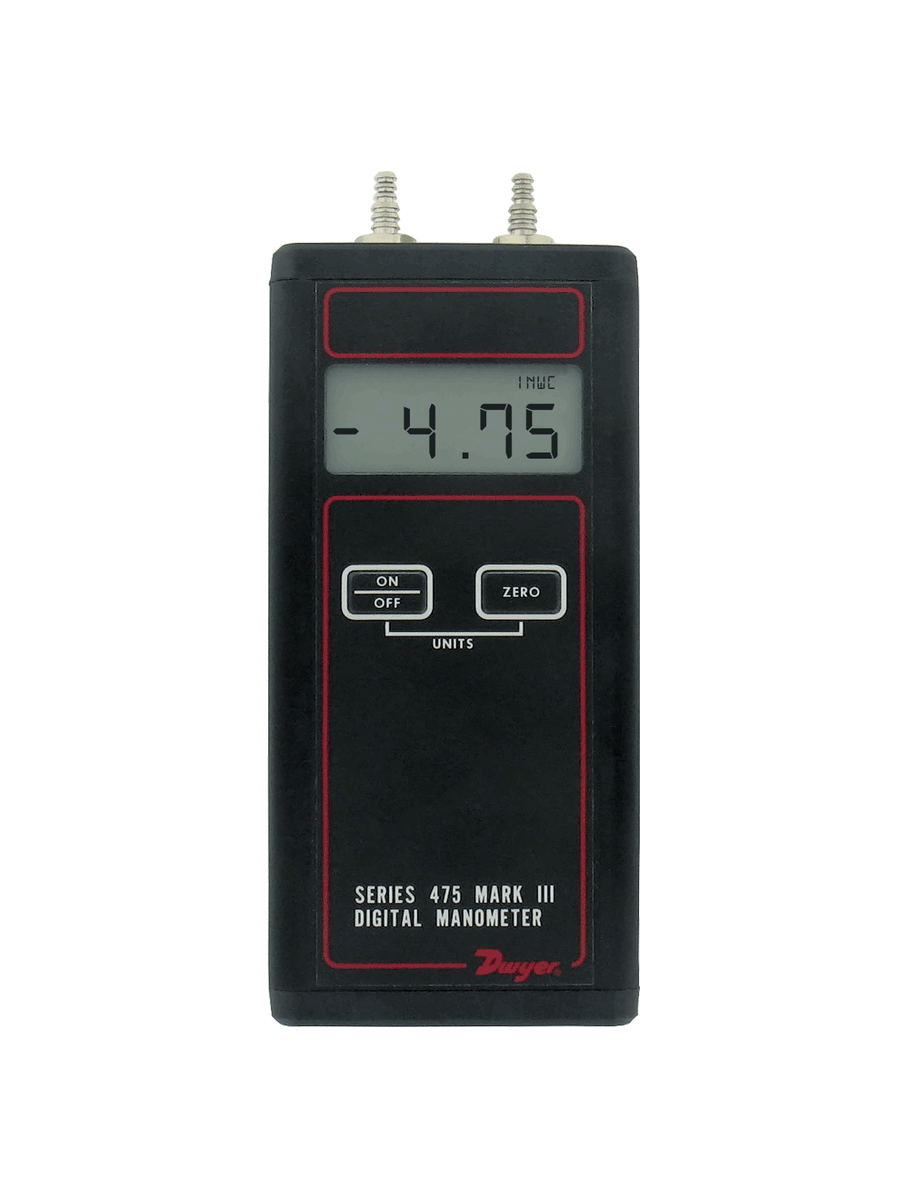

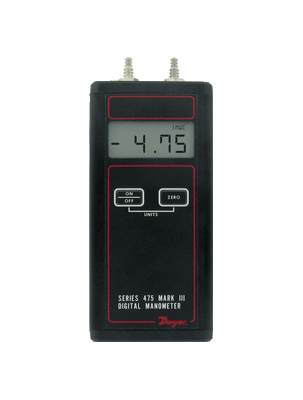

475-0-FM | Handheld digital manometer | range 0-10.00" w.c. (2.491 kPa) | max. pressure 5 psig. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 475-0-FM

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 475-0-FM Documents

Instructional Manual Series 475 Catalog Page More Info

Overview

Details for 475-0-FM

Dwyer Instruments NCO-475-0-FM Handheld Digital Manometer: Precision Measurement for Industrial Applications.This Dwyer Instruments NCO-475-0-FM Handheld Digital Manometer is an indispensable tool for industrial engineers and maintenance professionals seeking accurate and reliable pressure measurements. Its compact and rugged design makes it ideal for field use, while its advanced features provide versatility and unmatched precision.With a wide measurement range of 0-10.00", this manometer offers high accuracy of Â±0.5% of full scale. Its large, easy-to-read digital display ensures clear readings even in challenging lighting conditions. The NCO-475-0-FM is equipped with a variety of pressure units, allowing for convenient conversion and flexibility in different applications.Furthermore, this manometer boasts a sturdy construction with a durable housing that withstands harsh industrial environments. Its ergonomic design provides a comfortable grip, ensuring fatigue-free operation during extended use. The NCO-475-0-FM is also backed by Dwyer Instruments' reputation for quality and reliability, guaranteeing years of dependable service.Invest in the Dwyer Instruments NCO-475-0-FM Handheld Digital Manometer today and elevate your industrial measurement capabilities with confidence. Our shop our HVAC supply store offers the best prices and fast shipping to meet your urgent needs. Trust us for your industrial supply solutions!

Series 475 Intrinsically Safe Handheld Digital Manometer

Ranges from 1" w.c. to 150 psid, ±0.5% Accuracy

The Series 475 Handheld Digital Manometer measures positive, negative, or differential pressures of air and natural gases in ranges from 1 in w.c. (0.249 kPa) to 150 psid (10.34 bar). The dual push pads on the front panel control the on/off, auto zero, and pressure unit selection, allowing for simple operation with no set up needed. When used with a Dwyer® Pitot tube, the Series 475 can also be used as an air velocity gage.

NIST CALIBRATION available in Product Configurator.

Product Applications

Monitoring natural gas pressures on boilers and other combustion equipment
Air velocity monitoring, when used with a Dwyer® Pitot tube and AV calculator
Field calibration of other instruments
Monitoring or troubleshooting HVAC systems

Rugged aluminum case protects instrument from damage during transport/use
Large, easy to read LCD and simple operation
FM approved to be intrinsically safe in hazardous locations, Class 1, Div 2, GroupsA, B, C, D, T4 Ta = 70°C

Specifications

Series: 475 Intrinsically Safe Handheld Digital Manometer
Category/Type: Pressure
Type: Manometers
Series: 475 Intrinsically Safe Handheld Digital Manometer
Service: Air and compatible combustible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% Full Scale; 60 to 78°F (15.6 to 25.6°C); ±1.5% Full Scale from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C).
Pressure Hysteresis: ±0.1% of Full Scale.
Pressure Limits: See catalog page.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 0.42" (10.6 mm) 4-digit LCD.
Resolution: See Ordering page.
Power Requirements: 9 V alkaline battery; installed non-functional; user replaceable.
Weight: 10.8 oz. (306 g).
Process Connections: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing. Two compression fittings for use with 1/8" (3.18 mm) I.D. x 1/4" (6.35 mm) O.D. tubing for 475-7 & 475-8 only.
Agency Approvals: CE; FM.
