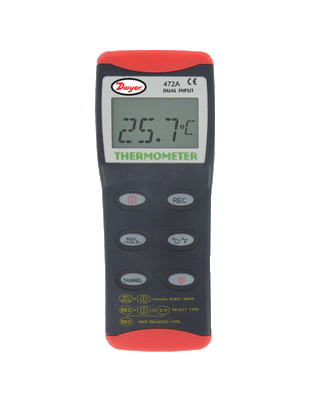

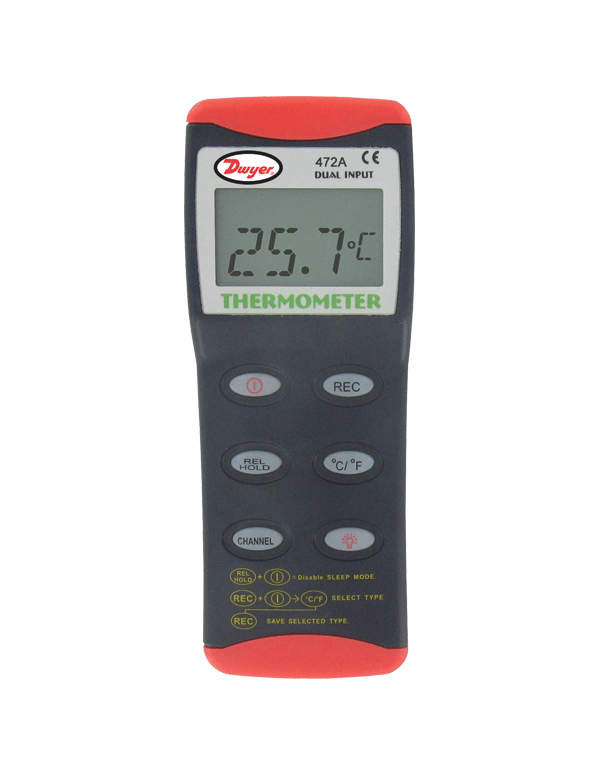

472A-1 | Digital input thermocouple thermometer. | Dwyer Instruments
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 472A-1
Documents and manuals
Dwyer Instruments 472A-1 Documents
Overview
Details for 472A-1
NCO-472A-1 Dwyer Instruments Dual Input Thermocouple Thermo
Dwyer Instruments' NCO-472A-1 Dual Input Thermocouple Thermo is a highly accurate and reliable temperature measurement device designed for industrial and maintenance applications. It features:
* Dual K-type thermocouple inputs for simultaneous temperature measurement at two different locations
* 0.3% accuracy over the entire temperature range
* -200 to 1372°C temperature measurement range
* LCD display with user-friendly interface
* Min/Max, Hold, and Average functions for data analysis
* Automatic thermocouple type detection for simplified setup
* Rugged construction for durability in harsh environments
The NCO-472A-1 Thermo is ideal for monitoring temperatures in a wide range of processes including:
* Furnace and oven temperature monitoring
* Process control systems
* HVAC systems
* Research and development
* Test and measurement applications
With its advanced features and exceptional accuracy, the NCO-472A-1 Dual Input Thermocouple Thermo is an essential tool for engineers, maintenance professionals, and anyone requiring precise and reliable temperature measurement.
Shop our HVAC supply store for the best prices and fast shipping on our full range of industrial supplies!
MODEL 472A-1 DUAL INPUT THERMOCOUPLE THERMOMETER
Accepts J, K, T Thermocouples, Differential Temperature Indication
The Model 472A-1 Dual Input Thermocouple Thermometer precisely measures up to two temperature measurements simultaneously. The large LCD display shows both temperature inputs or one temperature input and the differential temperature. Any J, K, or T type thermocouple with a mini-jack connector can be used as an input. For viewing in poorly lit environments, the built-in back light brightens the display. A hold button allows the user to freeze temperature data displayed. Minimum and maximum readings can be recorded over a set time period. Model 472A-1 includes a hard carrying case, battery, and one K type thermocouple.
Calibration Option available under Accessories.
Specifications
- Inputs
- Type J; K; T thermocouples.
- Power Requirements
- 9 V alkaline battery; installed non-functional; user replaceable.
- Ranges
- J-type: -328 to 1400°F (-200 to 760°C); K-type: -328 to 2498°F (-200 to 1370°C); T-type: -328 to 734°F (-200 to 390°C).
- Accuracy
- +/-0.13% reading + 1.4°F +.006°/°F below 1000°F.
- Temperature Limits
- 32 to 122°F (0 to 50°C).
- Humidity Limits (Non-Condensing)
- 0 to 85% relative humidity.
- Display
- Triple LCD display.
- Resolution
- 0.1°C up to 500°C.
- Weight
- 23.6 oz.
- Agency Approval
- CE.
