Brand: Dwyer InstrumentsSKU: 471B-1

List Price
~~$2,344.00~~

$781.47

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

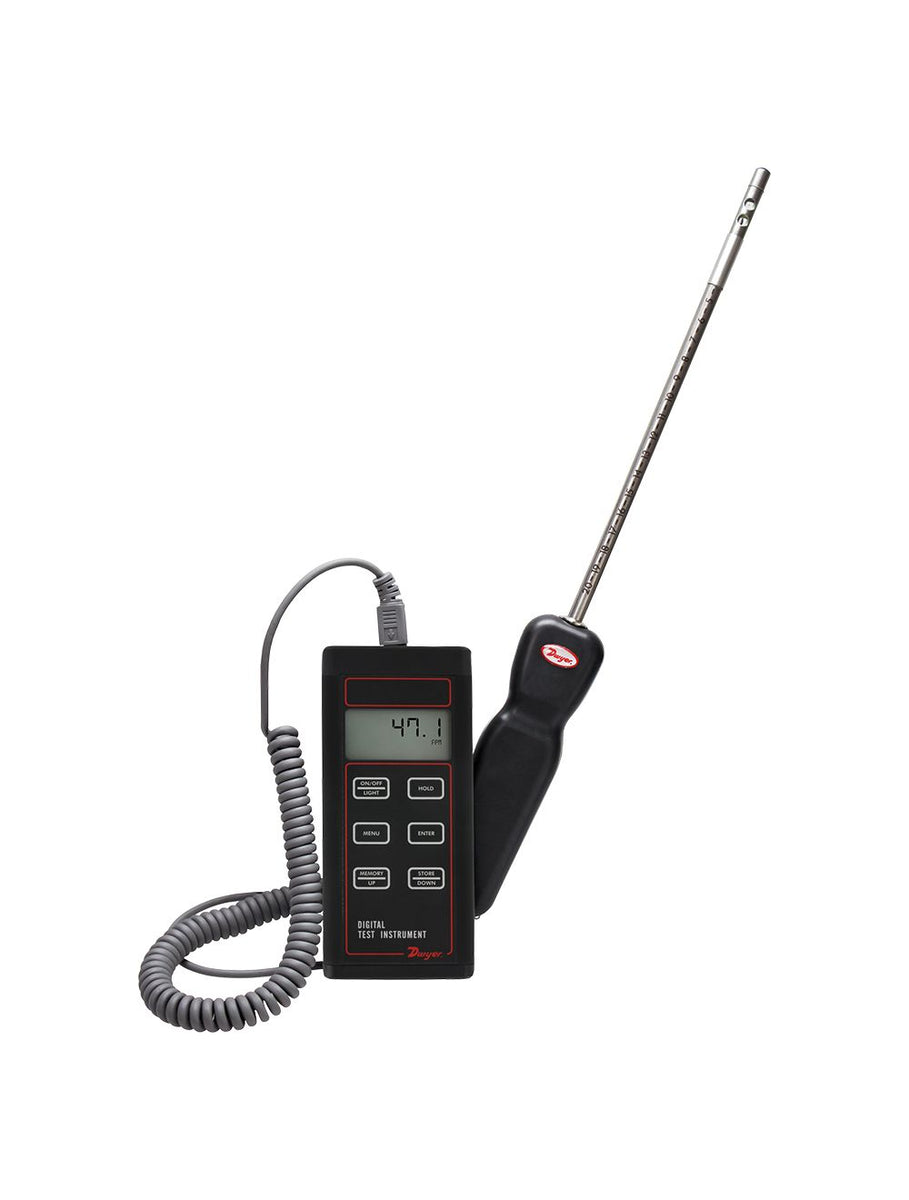

471B-1 | Digital thermo-anemometer | includes 9V battery | sensing probe | wrist strap | hard carrying case & instructions | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 471B-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 471B-1 Documents

Instruction Manual Model 471B Catalog Page 471B More Info

Overview

Details for 471B-1

Dwyer Instruments NCO-471B-1: Precision Measurement for HVAC Efficiency Dwyer Instruments' NCO-471B-1 DigThermoAnemometer is engineered to provide accurate and reliable measurements of airflow, temperature, humidity, and differential pressure. Key Features: * Measures airflow from 0 to 6000 FPM * Temperature range: -4 to 140Â°F (-20 to 60Â°C) * Measures humidity from 0 to 100% RH * Differential pressure range: -1 to 10 in H2O (-25 to 250 mm H2O) * Highly accurate and repeatable measurements Benefits: * Optimizes HVAC system performance by identifying airflow and pressure inconsistencies * Ensures proper ventilation for indoor air quality and energy efficiency * Detects leaks in ductwork and other air handling systems * Facilitates precise calibration and troubleshooting of HVAC equipment Applications: * HVAC system testing and balancing * Airflow measurement in ducts and grills * Temperature and humidity monitoring * Differential pressure measurement in filters and fans Trust our HVAC supply store for the best prices and fast shipping on the NCO-471B-1 DigThermoAnemometer and all your HVAC measurement needs.

MODEL 471B THERMO-ANEMOMETER TEST INSTRUMENT

Measures Air Velocity or Air Volume and Temperature Simultaneously

The Model 471B Thermo-Anemometer Test Instrument is a versatile dual functionunit that quickly and easily measures air velocity or volumetric flow as well as airtemperature in imperial or metric units. A stainless steel probe is included, which hasa comfortable hand grip and etched insertion depth marks. The extruded aluminumhousing fully protects electronics, yet is lightweight and comfortable to hold.

NIST CALIBRATION available in Product Configurator.

Product Applications

Duct traverses
HVAC inspections
Testing and balancing

Compatible with Dwyer RP1 thermo-hygrometer and VP1 100 mm vane thermo-anemometer probes (sold separately)
Visible in any condition due to high contrast and backlit LCD display
Able to store up to 99 readings
Probe sensors are protected by the integral sliding cover
Built-in volumetric air flow calculations

Specifications

Service: Air velocity and temperature of clean; dry air.
Temperature Limits: Process Air Velocity: -20 to 212°F (-29 to 100°C);Process Temperature: -40 to 212°F (-40 to 100°C);Ambient: 5 to 125°F (-15 to 51°C).
Display: 4.5 digit LCD.
Resolution: 0.1%; 0.1°F/°C.
Air Velocity Range: 45 to 6000 FPM (0.23 to 30 m/s).
Air Velocity Accuracy: ±3% FS within temperature range of 40 to 90°F (4 to 32°C). -TAB option: ±5% of reading; not less than ±1.6 FPM (0.5 m).
Volumetric Air Flow Range: 19;999 in selected flow units.
Temperature Range: -40 to 212°F (-40 to 100°C).
Temperature Accuracy: ±0.5°F (±0.28°C) from 32 to 122°F (0 to 50 °C); ±1.5°F (±0.83°C) from -40°F to 32°F (-40 to 0°C) & 122 to 212°F (50 to 100°C).
Probe Length: 8" (203 mm) insertion.
Cable Length: 28" (71 cm) retracted; 6 ft (183 cm) extended.
Power Requirements: 9 V alkaline battery; installed non-functional; user replaceable.
Weight: 16 oz (454 g).
Agency Approvals: CE.
