4635B | Differential pressure gage | range 0-35 ft w.c. | available with brass case only. | Dwyer Instruments

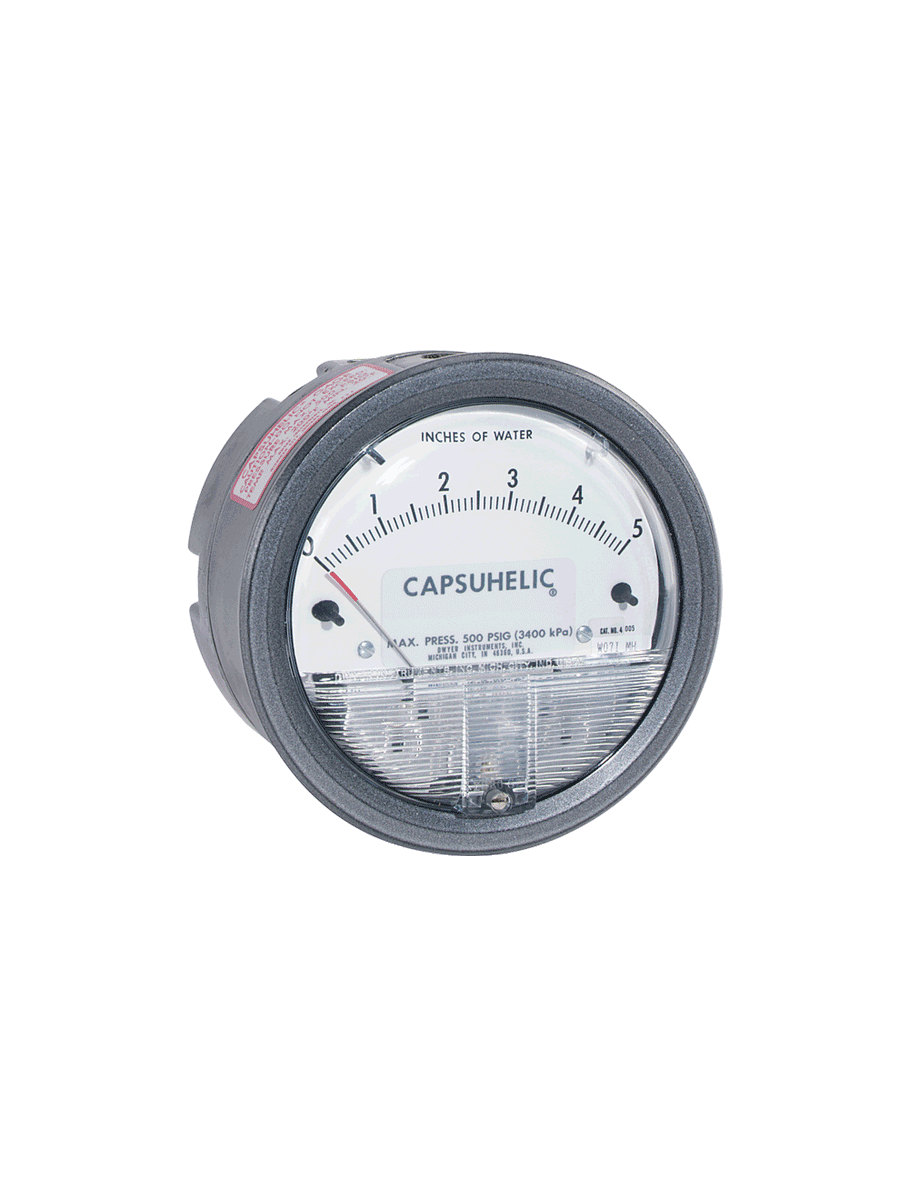

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 4635B

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 4635B Documents

Instruction Manual Series 4000 Catalog Page More Info

Overview

Details for 4635B

Dwyer Instruments 4635B Differential Pressure Gage: Accurate Measurement for HVAC SystemsThe Dwyer Instruments 4635B Differential Pressure Gage is an essential tool for industrial engineers and maintenance professionals working with HVAC systems. It provides precise measurements of pressure differentials up to 35 feet of water, making it ideal for system diagnostics and troubleshooting. Crafted by Dwyer Instruments, a renowned brand in pressure measurement, the 4635B gage features a durable construction and a user-friendly design. Its compact size and lightweight design allow for convenient portability and easy handling. Key Features:- Measures pressure differentials up to 35 feet of water- Accurate readings ensure precise system monitoring and diagnostics- Compact and lightweight for convenient handling- Easy-to-read dial for quick and accurate readings- Durable construction for long-lasting performance in industrial environments Applications:- Troubleshooting HVAC systems- Monitoring pressure differentials in ductwork- Measuring air velocity using Pitot tubes Trust our HVAC supply store for the best prices and fast shipping on your products!

Series 4000 Capsuhelic® Differential Pressure Gage

Measures Pressure, Vacuum or Differential, Suitable for Internal Pressures to 500 psig

The Series 4000 Capsuhelic® Differential Pressure Gage is designed to give fast, accurate indication of differential pressures. The gage may be used as a readout device when measuring flowing fluids, pressure drop across filters, liquid levels in storage tanks and many other applications involving pressure, vacuum or differential pressure. The pressure being measured is held within a capsule which is an integral part of the gage. This containment of the pressure permits the use of the gage on system pressures of up to 500 psig, even when differentials to be read are less than 0.1 in w.c.

Note: May be used with Hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi.

NIST CALIBRATION available in Product Configurator.

DID YOU KNOW that you can add YOUR logo to our Capsuhelic® Gage, call customer service for details.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Fluid flow
Liquid storage tanks
Filter pressure drops
Vacuum or differential pressure

Gage capsule permits high-pressure usage with small differentials
Zero and range adjustments outside of gage means no disassembly in normal service
Time-proven, simple, frictionless movement that permits full scale readings as low as 0.5 in w.c.
Diaphragm-actuated versus liquid filled gage supports outdoor use

Specifications

Series: 4000 Capsuhelic® Differential Pressure Gage
freeship
Category/Type: Pressure
Type: Differential Pressure
Series: 4000 Capsuhelic® Differential Pressure Gage
Service: Aluminum Case: Air and compatible gases and oil based liquids. Brass Case: Air and compatible gases and water based liquids.
Wetted Materials: Consult factory.
Housing: Die cast aluminum with impregnated hard coating; standard. Optional forged brass housing is required for water or water based fluids.Special material diaphragms available; contact factory.
Accuracy: ±3% of FS at 70°F (21.1°C). (±4% on 4200; 4210; 4215; 4220; 4300; 4400; and 4500).
Pressure Limits: -20" Hg to 500 psig. (-0.677 bar to 34.4 bar).
Temperature Limits: 20 to 200°F (-6.67 to 93.3°C).
Size: 4" (101.6 mm) diameter dial face.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Process Connections: 1/4" female NPT high and low pressure taps; duplicated - one pair top for air and gas; and one pair bottom for liquids.
Weight: 3 lb; 3 oz (1.45 kg) aluminum case; 7 lb; 13 oz (3.54 kg) brass case.
Standard Accessories: Two 1/4" NPT plugs for duplicate pressure taps; four flush mounting adapters with screws and four surface mounting screws.
