424-5 | Inclined/vertical manometer | inclined range: 0-2.0" w.c. | .01 min. div. | 20" scale; vertical range 2.1-5" w.c. | min. div. .10 | 3-1/4" scale. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 424-5

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 424-5 Documents

421/422 Durablock®424 Durablock®Series 420 Catalog Page Blue Gage Fluid - English Red Gage Fluid - English Blue Gage Fluid - French Blue Gage Fluid - Spanish Red Gage Fluid - French Red Gage Fluid - Spanish Blue Gage Fluid - German Red Gage Fluid - German More Info

Overview

Details for 424-5

The Dwyer Instruments NCO-424-5 Inclined/Vertical Manometer offers precise pressure measurement in industrial and maintenance applications. Key Features: * Inclined or vertical mounting for versatile placement * Accurate 0-2" water column measurement range * Dual scales for psi and inches of water column * Durable acrylic construction for long-lasting reliability Applications: * Monitoring pressure in pipelines, filters, and other systems * Verifying pump performance and troubleshooting pressure issues * Measuring pressure in HVAC, plumbing, and industrial processes Technical Specifications: * SKU: 424-5 * Range: 0-2" water column * Accuracy: Â±2% full scale * Dimensions: 1-1/2" W x 17/32" D x 11-3/4" H Upgrade your maintenance toolbox with the Dwyer Instruments NCO-424-5 Inclined/Vertical Manometer. Shop now at our HVAC supply store for unbeatable prices and fast shipping!

Series 420 Durablock® Inclined/Vertical Manometer

Accuracy to ±0.25%

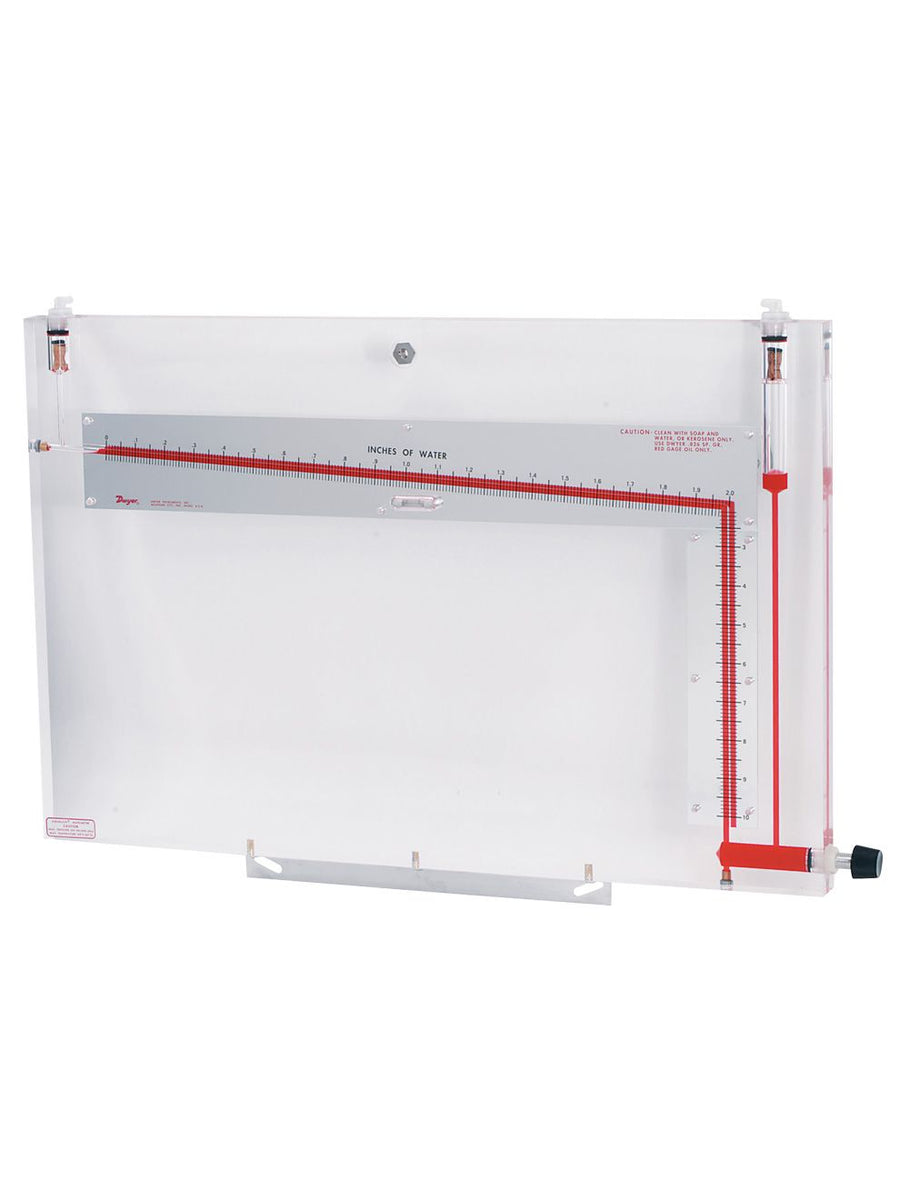

Dwyer® Series 420 Inclined-Vertical Manometer are extremely accurate instruments designed and made especially for precision measurement of low differential pressures in laboratory and test applications. The inclined range bore has a length of 20" to provide ample multiplication of indicating fluid movement in this critical lower part of the range.

NIST CALIBRATION available in Product Configurator.

Click here, if you require a Safety Data Sheet for the Blue Gage Fluid or the Red Gage Fluid.

Product Applications

Low pressure laboratory and test applications

1-1/4" THICK ACRYLIC PLASTIC BODY is a solid block, virtually unbreakable, stable and absolutelyfree of the danger of distortion.
3/16" BORES, ACCURATE TO ± .0002" are permanently free of bends or crooks, will not require recalibration becauseof distortion.
GROUND GLASS BUBBLE LEVEL sensitive to 115-125 sec./2 MM. is 1-1/2" long x .375" diameter and providedwith two red linesfor easy visibility and alignment.
PARALLAX-FREE READING for maximum accuracy and consistency is achieved by simply aligning the meniscuswith its image reflected inthe polished aluminum scale.
SELECTED GAGE FLUID with high wetability characteristics forms a consistent, well shaped meniscusfor perfect readability.
O-RING SEALED FLUID LEVEL PLUNGER ADJUSTMENT for easy zeroing.
PRECISION BUILT to assure device meets the highest standards.
