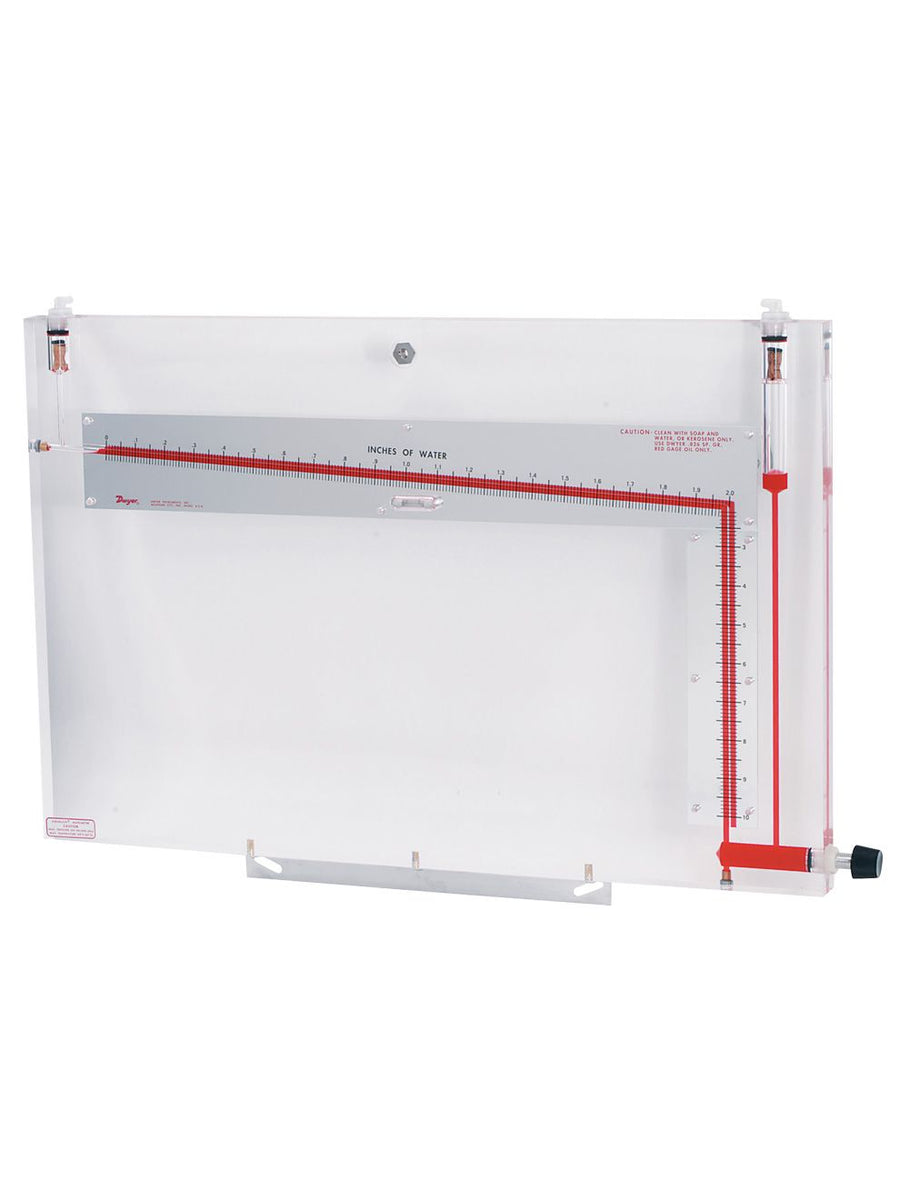

421-5 | Inclined/vertical manometer | inclined range: 0-1.0" w.c. | .01 min. div. | 6-1/2" scale; vertical range 1.1-5" w.c. | min. div. .10 | 4-5/8" scale. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 421-5

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 421-5 Documents

421/422 Durablock®424 Durablock®Series 420 Catalog Page Blue Gage Fluid - English Red Gage Fluid - English Blue Gage Fluid - French Blue Gage Fluid - Spanish Red Gage Fluid - French Red Gage Fluid - Spanish Blue Gage Fluid - German Red Gage Fluid - German More Info

Overview

Details for 421-5

The Dwyer 421-5 Inclined Vertical Manometer is a precision instrument designed to accurately measure pressures in industrial and commercial applications. With a range of 0-1" of water, it provides precise measurements for various pressure monitoring tasks, making it ideal for engineers and maintenance professionals. Constructed from durable materials, including a high-impact acrylic body and a brass connection, this manometer ensureså¯é æ€§ and longevity in demanding environments. Its inclined design allows for easy reading of measurements, even in confined spaces. Furthermore, the Dwyer 421-5 Inclined Vertical Manometer is highly versatile and can be used for a wide range of applications, including pressure testing, leak detection, and monitoring fluid levels. Its compact size and portability make it convenient to use in various settings, ensuring accurate and reliable pressure measurements. Our HVAC supply store is proud to offer the Dwyer 421-5 Inclined Vertical Manometer at the best prices with fast shipping. Our commitment to providing superior products and exceptional customer service makes us the preferred choice for industrial engineers and maintenance professionals.

Series 420 Durablock® Inclined/Vertical Manometer

Accuracy to ±0.25%

Dwyer® Series 420 Inclined-Vertical Manometer are extremely accurate instruments designed and made especially for precision measurement of low differential pressures in laboratory and test applications. The inclined range bore has a length of 20" to provide ample multiplication of indicating fluid movement in this critical lower part of the range.

NIST CALIBRATION available in Product Configurator.

Click here, if you require a Safety Data Sheet for the Blue Gage Fluid or the Red Gage Fluid.

Product Applications

Low pressure laboratory and test applications

1-1/4" THICK ACRYLIC PLASTIC BODY is a solid block, virtually unbreakable, stable and absolutelyfree of the danger of distortion.
3/16" BORES, ACCURATE TO ± .0002" are permanently free of bends or crooks, will not require recalibration becauseof distortion.
GROUND GLASS BUBBLE LEVEL sensitive to 115-125 sec./2 MM. is 1-1/2" long x .375" diameter and providedwith two red linesfor easy visibility and alignment.
PARALLAX-FREE READING for maximum accuracy and consistency is achieved by simply aligning the meniscuswith its image reflected inthe polished aluminum scale.
SELECTED GAGE FLUID with high wetability characteristics forms a consistent, well shaped meniscusfor perfect readability.
O-RING SEALED FLUID LEVEL PLUNGER ADJUSTMENT for easy zeroing.
PRECISION BUILT to assure device meets the highest standards.
