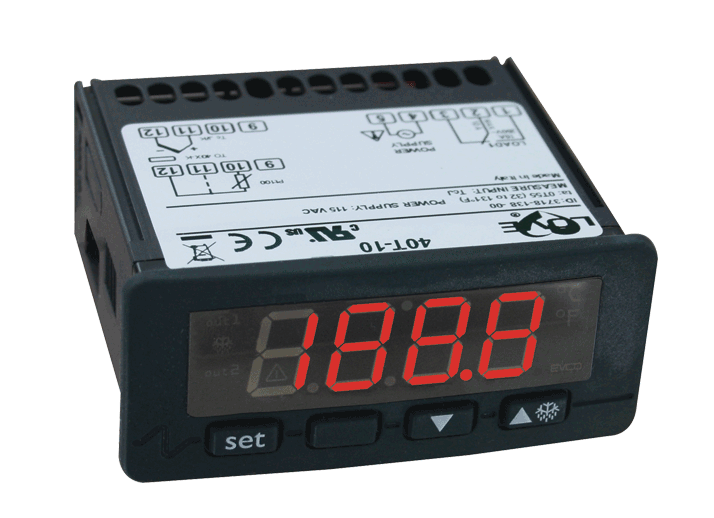

40T-10 | Digital temperature switch with RTD/TC inputs | 115 VAC supply power. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 40T-10

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 40T-10 Documents

Instruction Manual Series 40T/40M Catalog Page 40T/40M More Info

Overview

Details for 40T-10

NCO-40T-10 Dwyer Instruments Digital Temperature Switch Dwyer Instruments' NCO-40T-10 is a 115VAC digital temperature switch designed to provide precise temperature control in industrial and commercial applications. It features a compact design and a highly visible LED display for easy monitoring. Key Features: * Temperature range: -40Â°F to 250Â°F (-40Â°C to 121Â°C) * Adjustable set point and differential * Isolated N.O. and N.C. contacts * IP67-rated water and dust-resistant enclosure Applications: * HVAC systems * Industrial ovens * Food processing equipment * Medical and laboratory equipment Benefits: * Accurate and reliable temperature control * Easy-to-use interface and digital display * Durable construction for demanding environments * Versatile applications across various industries Shop our HVAC supply store for the NCO-40T-10 Dwyer Instruments Digital Temperature Switch and take advantage of our unbeatable prices and speedy shipping. We are your trusted source for industrial and commercial supplies, delivering the quality and efficiency you need for your operations!

Series 40T/40M Digital Temperature Switch

3-1/2 Digit Display

The Series 40T/40M Digital Temperature Switch accepts a variety of inputs to allow temperature measurements and set points up to 1999°F (1300°C). Observing the current status of the controls is made easier with the 3-1/2 digit, multi-color LED display that has alarm, defrost and output symbols. For added versatility, the temperature units can be field selected for °F or °C. For cooling applications, manual defrost mode can be initiated by pushing a single button. A flashing alarm informs users when the current temperature exceeds preset limits.

Product Applications

Food service equipment
Industrial process control

Field selectable °F or °C
Universal temperature sensor or transmitter input on 40M models
Heating or cooling models

Specifications

Series: 40T/40M Digital Temperature Switch
Category/Type: Temperature
Type: Switches
Series: 40T/40M Digital Temperature Switch
Probe Range: K T/C: -140 to 1999°F (-100 to 1300°C); J T/C: -140 to 1450°F (-100 to 800°C); RTD: -320
Accuracy: ±1% F.S.
Display: 3-1/2 digit red display.
Resolution: 0.1°C.
Memory Backup: Non-volatile memory.
Temperature Limits: 32 to 131°F (0 to 55°C).
Weight: 2.3 oz (65 g).
Front Panel Rating: IP65.
Agency Approvals: CE; cULus.
