Details for 3ZV20314

Dwyer Instruments 3ZV20314: Reliable Zone Valve Solution for Industrial ApplicationsDwyer Instruments 3ZV20314 is a robust 3-way zone valve designed to control the flow of fluids in industrial systems. With its durable 3/4" NPT connection and brass body construction, this valve ensures reliable operation and longevity in demanding environments. The valve's spring return actuator provides precise and quick response to control signals, ensuring efficient fluid handling. The 3ZV20314 is ideal for applications requiring precise flow control, such as heating, cooling, and process systems. Its compact design and easy installation make it a convenient choice for various industrial settings. Trust Dwyer Instruments for your industrial valve needs and experience the difference in performance and reliability. Our HVAC supply store offers the best prices and fast shipping for your products!

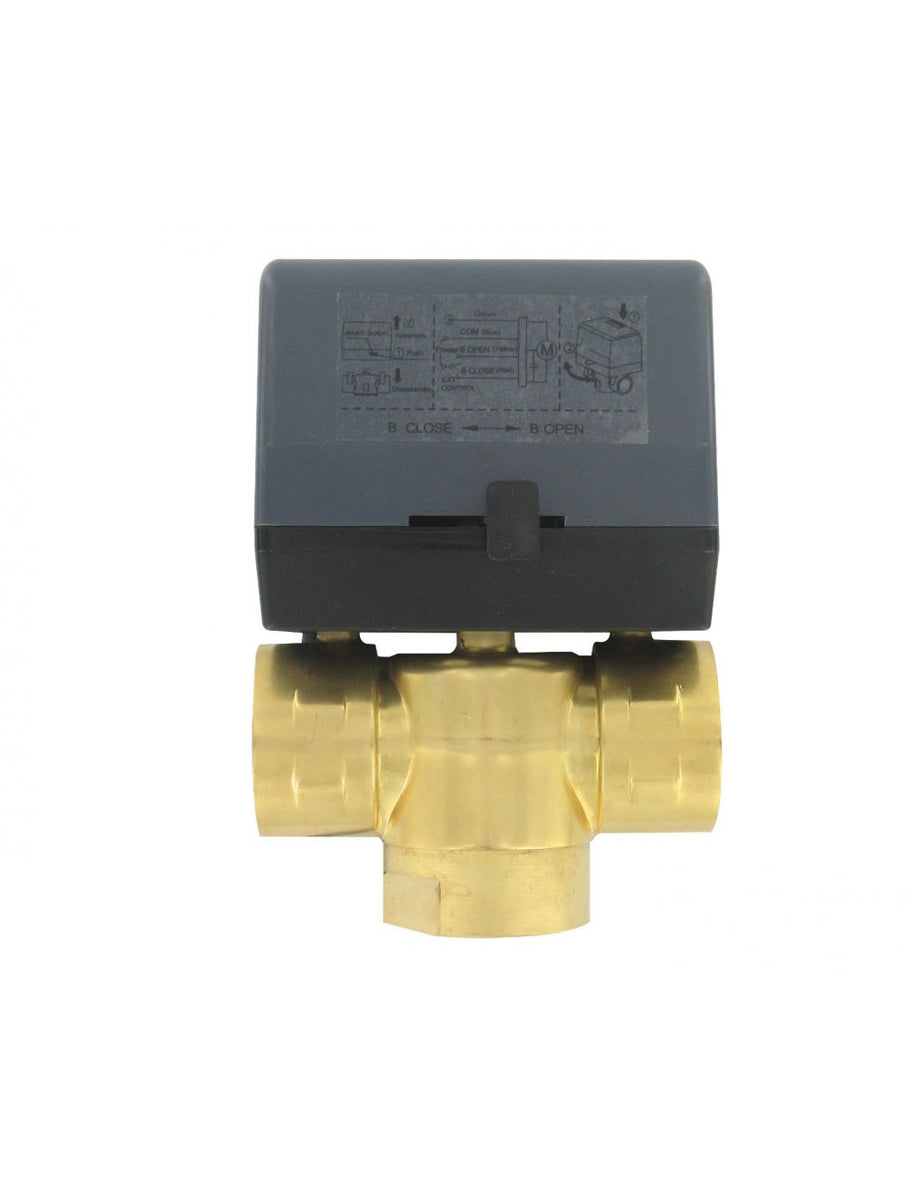

Series 3ZV2 Three-Way Detachable Zone Valve

Floating or Modulating

3ZV2 Series Zone Valves are ideal for flow control in hot and cold water HVAC systems. Zone valves are typically used in conjunction with a thermostat to control room temperature. The 3ZV2 is electrically driven to open and or close via a bidirectional motor. Units are available in 1/2", 3/4", 1", and 1-1/4" sizes with 24 or 120 VAC power supply. Easy to install, these units are direct replacements for competitor units. Manual override lever is easily accessible externally. Consult factory for 220 VAC power supply, optional auxiliary switches, and BSP or sweat connections.

3ZV2 models come in floating or modulating input types. Floating units are controlled directly from the thermostat and modulation units accept either a 4 to 20 mA or 0 to 10 VDC input. Modulating models include a motor time out feature that automatically turns off the motor after the full stroke of the valve to increase motor life. Featured in the 3ZV2 is a detachable actuator that is easily removable by a turn key allowing the valve body to be installed without the actuator. Actuator housing is constructed of fire resistant plastic.

California Residents: Click Here for Proposition 65 WARNING.

Manual override lever
Removable actuator
Motor time out for controllers that do not automatically turn off their signal after the full stroke of the valve

Specifications

Series: 3ZV2 Three-Way Detachable Zone Valve
Category/Type: Valves
Type: Valves
Valve Type: Zone
Series: 3ZV2 Three-Way Detachable Zone Valve
Service: Compatible fluids.
Body: 3-way.
Line Size: 1/2" to 1-1/4".
End Connections: Female NPT (optional BSP; sweat connections).
Pressure Limits: Maximum: 300 psi (20.7 bar); Close-off: 43 psi (2.96 bar).
Temperature Limits: Ambient: 32 to 104°F (0 to 40°C); Process: 37 to 201°F (3 to 94°C).
Wetted Materials: Brass; stainless steel; NBR.
Flow Characteristic: Quick opening.
Input: Floating: 3-wire; Modulating: 0 to 10 VDC or 4 to 20 mA (24 VAC power only).
Power Requirements: 120 VAC or 24 VAC; ±10%; 50/60 Hz. (Optional 220 VAC.)
Power Consumption: Floating: 2.5 VA; Modulating: 3.5 VA.
Electrical Connection: 18 AWG jacketed; 9" (228 mm) long.
Cycle Time: Opening Time: 50 to 65 seconds.
Enclosure Rating: General purpose.
Housing Material: PVC and polycarbonate.
