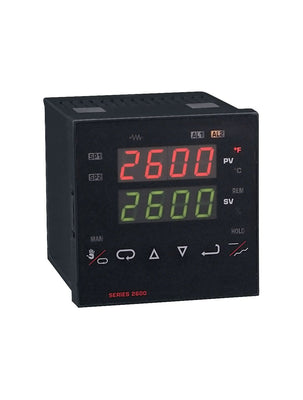

26150 | Temperature/process controller | one current output | with alarm. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 26150

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 26150 Documents

Snubber Application Note Instruction Manual Series 2600 Catalog Page More Info

Overview

Details for 26150

TempProcessCtrlr 1output/Alarm Sku #26150 Dwyer Instruments' TempProcessCtrlr 1output/Alarm is an efficient and reliable temperature process controller designed for industrial applications. With its advanced features and precise control, this controller ensures optimal performance and safety in various temperature-critical processes. Key Features: * PID control algorithm for accurate and stable temperature regulation * Single output for controlling heating or cooling elements * Built-in alarm to alert users to process deviations * Universal input accepts a wide range of sensor types (TC, RTD, and mV) * User-friendly interface for easy setup and operation Benefits: * Improves process efficiency and optimizes temperature control * Reduces energy consumption by precisely adjusting heating and cooling * Enhances safety by monitoring and alarming process deviations * Provides reliable and consistent temperature control for critical applications Applications: * Industrial ovens and furnaces * Temperature-controlled chemical reactions * Environmental chambers * Food and beverage processing * Semiconductor manufacturing Choose our HVAC supply store for the best prices and fast shipping on high-quality industrial equipment like the TempProcessCtrlr 1output/Alarm. Our commitment to customer satisfaction ensures you get the products you need, when you need them. Order now to optimize your temperature control processes and experience the difference!

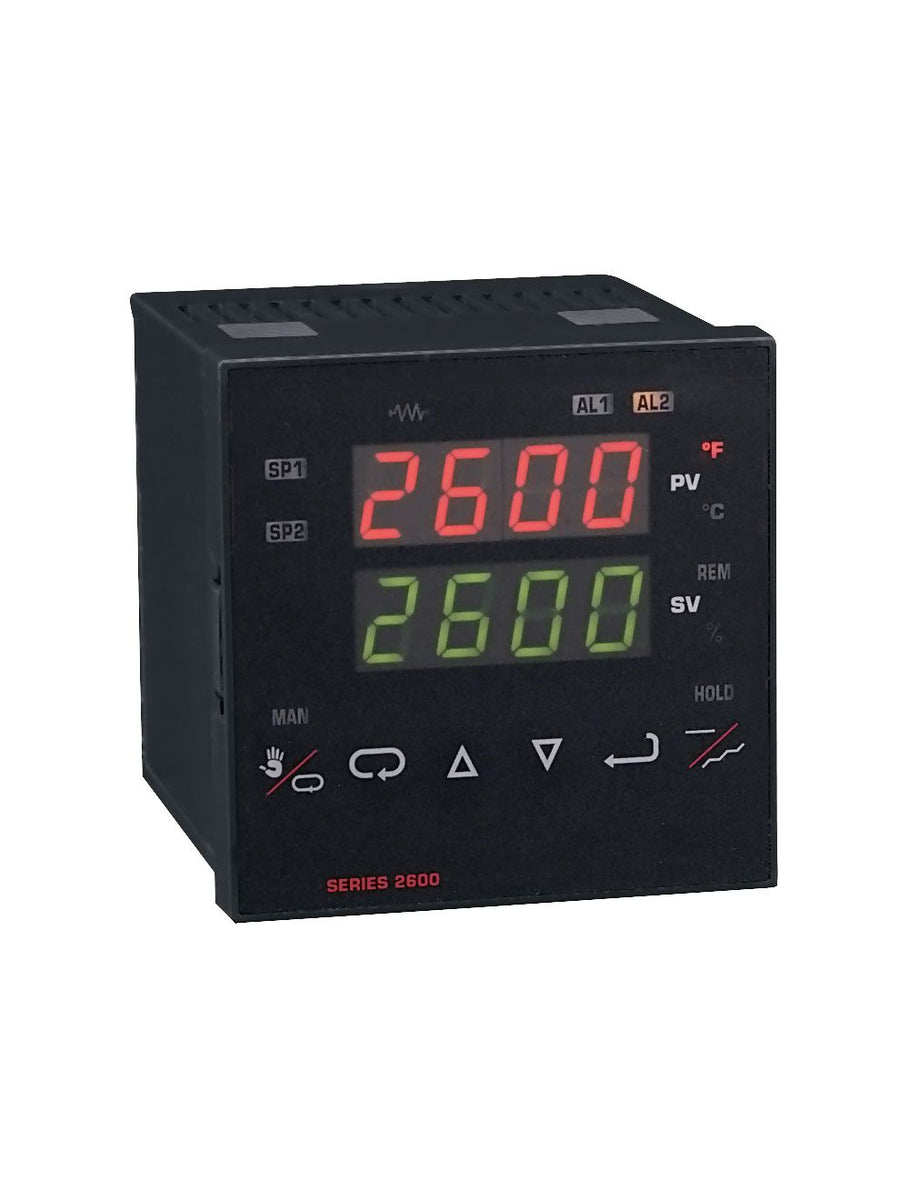

Series 2600 Temperature/Process Controller

1/4 DIN Self-Tune PID, Fuzzy Logic Software

Series 2600 Temperature/Process Controllers set a new standard for quality, versatility, ease-of-use and value. While they include a high level of standard features, many function setup items appear in the control menu only when the function is selected, so you don’t have to wade through unnecessary items. Units feature a universal input for thermocouple types J, K, E, T, L, N, B, C, S & R; RTDs 100Ω Plt. NIST, 100Ω Plt. DIN, 120Ω Ni Industrial, 1000Ω Plt. DIN; differential input (-10 to +10 mV DC)and process input (0 to 20 mA DC, 0 to 10 VDC). A standard 24 Volt isolated, regulated power supply is included to operate most standard 4-20 mA transmitters.

Standard features include Self-Tune, Fuzzy Logic, fully adjustable PID, Auto/Manual control with bumpless transfer and front panel activation key, percent output indication, peak and valley indication, loop break protection and indication. For process inputs, the display is fully programmable from -1999 to +9999 with selectable decimal point location. Most thermocouple and RTD inputs can show whole or tenth degree displays. The Series 2600 is available with single or dual setpoint outputs and can be programmed for on-off, PID or heat/cool or latching alarm. All outputs are isolated from the inputs. Outputs include 10 Amp relay and 0-20 mA DC (scalable).

NEMA 4X (IP65) Front Panel Resists Dust & Moisture
Four Password Protected Security Levels
Front Panel Programmability
16 Segments of Ramp/Soak with Program End Control
Operates on 100-240 VAC, 132-240 VDC

Specifications

Series: 2600 Temperature/Process Controller
freeship
Category/Type: Process Control
Type: Process Controllers
Series: 2600 Temperature/Process Controller
Selectable Inputs: Thermocouple; RTD; DC voltage or DC current.
Input Impedance: Thermocouple: 3 Megohms minimum; Voltage: 5000 ohms; Current: 10 ohms; RTD Current: 200 µA maximum.
Display: Two 4-digit; 7 segment; 0.56" (14.2 mm) high LED.
Accuracy: ±0.25% of span; ±1 least significant digit.
Supply Voltage: 100 to 240 VAC nominal; +10%-15%; 50 to 400 Hz; single phase; 132 to 240 VDC +10% -20%.
Operating Temperature: 14 to 131°F (-10 to 55°C).
Control Output Ratings: Relay: SPDT; 10 A @ 240 VAC resistive; 1/2 hp @ 120 VAC; 1/3 hp @ 240 VAC; Alarm Relay: SPST; 3 A @ 240 VAC resistive; Proportional Current: 0-20 mA DC; scalable into 600 ohms maximum.
Weight: 13 oz (369 g).
Front Panel Rating: NEMA 4X (IP66).
