2510MCG3 | 600V 3P NEMA1 Manual Starter | Schneider Electric (Square D)

Schneider Electric (Square D) | 2510MCG3

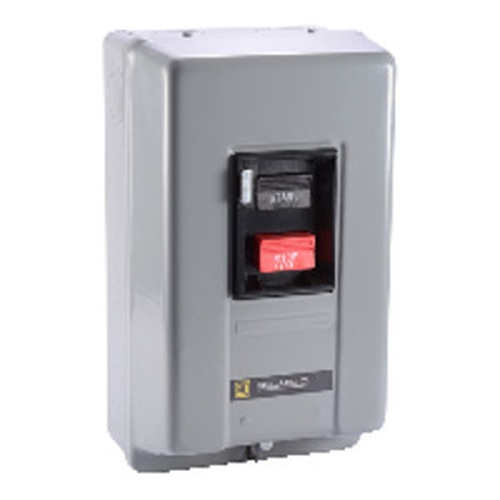

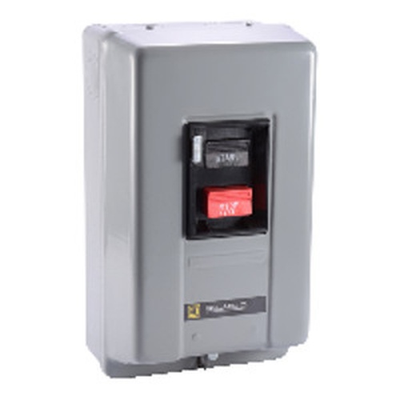

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 2510MCG3

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 2510MCG3 Documents

More Info

Overview

Details for 2510MCG3

Schneider Electric (Square D) 600V 3P NEMA1 Manual Starter (2510MCG3) This robust 600V 3P manual starter from Schneider Electric (Square D) is designed for industrial applications, ensuring reliable control of three-phase motors. Its NEMA1 enclosure protects against dust and light moisture, making it suitable for various environments. Key Features: * 600V voltage rating for high-power applications * Three-pole design for controlling three-phase motors * NEMA1 enclosure for protection against dust and light moisture * Manual operation for precise and direct control * Durable construction for extended lifespan Benefits: * Safe and reliable motor control in industrial settings * Protection against environmental hazards for longevity * Easy manual operation for smooth and efficient control * Cost-effective solution for various motor control applications Applications: * Industrial machinery and equipment * Conveyors and material handling systems * Pumps and compressors * Power distribution and control systems Choose our HVAC supply store for the best prices and fast shipping on your industrial electrical needs. Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Overload heater elements are ordered separately to match motor data. A variety of enclosures are available. Starters are UL Listed and CSA Certified for global applications. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 1 general purpose surface mount enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 8.63 inches tall, 5.00 inches wide and 4.13 inches deep. This device weighs 4.21 lbs. 2510M integral horsepower starters are UL listed and CSA certified.

Specifications

Product: Manual Starter
Type: M
NEMA Size: M-1
Control Unit: Push-button
Pilot Light: No indicator
Horsepower Rating: 7.5 hp 200...230 V AC;3 phase;10 hp 380...575 V AC;3 phase
Voltage Rating: 600 V AC
Number of Poles: 3P
Starter Type: Non reversing
Electrical Connection: Pressure wire clamp
Overload Relay Type: Melting alloy
Number of Thermal Units Required: 3
Wire Gauge: AWG 14...AWG 8 copper
Auxiliary Contacts: Without
Height: 8.63 in (219.20 mm)
Width: 5 in (127.00 mm)
Depth: 4.13 in (104.90 mm)
Net Weight: 4.21 lb(US) (1.91 kg)
Certifications: CSA LR60905 class 3211 05;UL listed file E42243 CCN NLRV
NEMA Enclosure Rating: NEMA 1 painted sheet steel
Category: 21103-2510;2511;2512 M;T
Discount Schedule: CP1
GTIN: 785901792109
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.50 in (11.43 cm)
Package 1 Width: 5.70 in (14.478 cm)
Package 1 Length: 9.20 in (23.368 cm)
Package 1 Weight: 4.20 lb(US) (1.905 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 126
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 536.00 lb(US) (243.125 kg)
Warranty: 18 months
