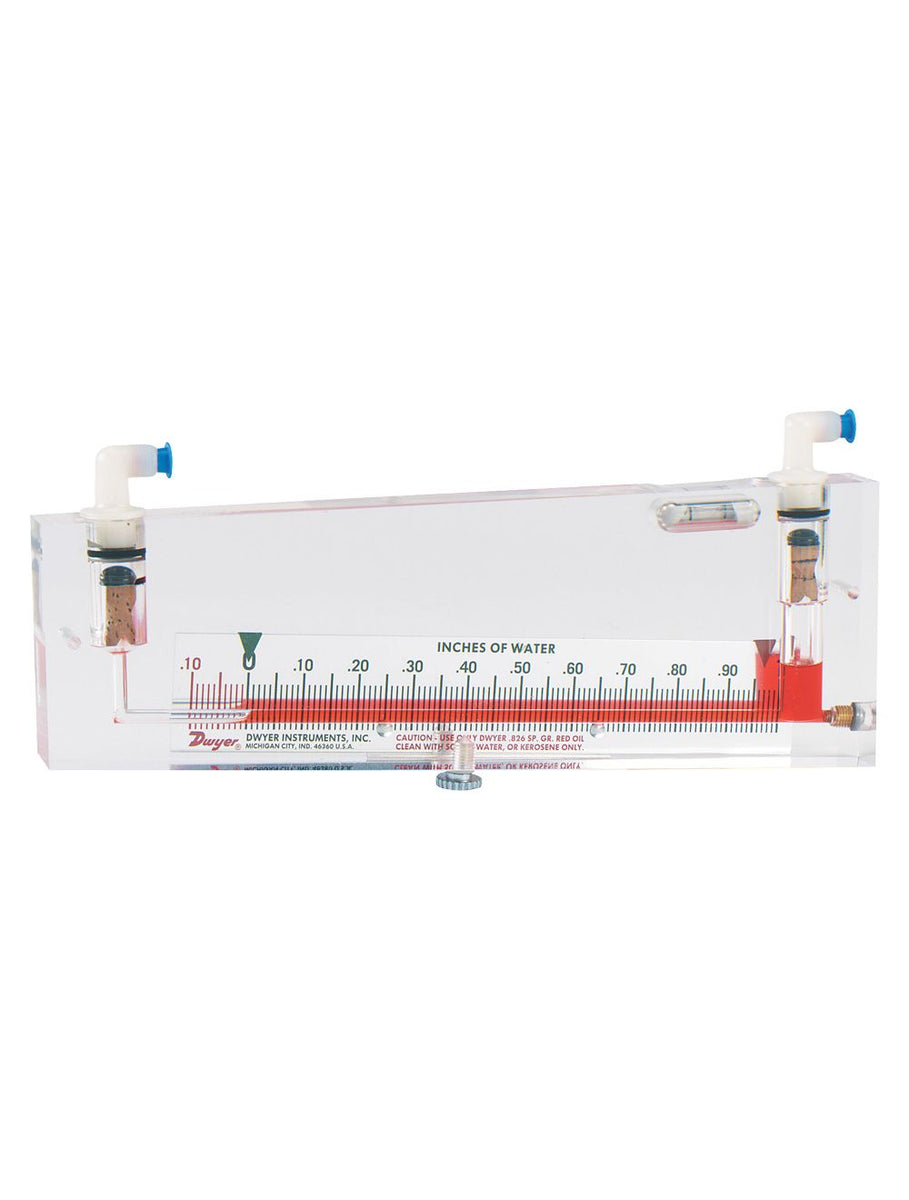

250-AF | Inclined air filter gage | range .10-0-1.0" w.c. | 5-1/2" inclined scale | | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 250-AF

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 250-AF Documents

Service Manual Series 250-AF Catalog Page Red Gage Fluid - English Red Gage Fluid - French Red Gage Fluid - Spanish Red Gage Fluid - German More Info

Overview

Details for 250-AF

Dwyer Instruments 250-AF Air Filter Gage Precisely monitor air filter performance with the Dwyer Instruments 250-AF Air Filter Gage. This essential tool for industrial engineers and maintenance professionals provides an accurate and real-time indication of filter pressure drop, ensuring optimal system efficiency. Featuring a rugged construction with a corrosion-resistant stainless steel case and polycarbonate lens, the 250-AF gage withstands harsh industrial environments. Its compact design offers easy installation and allows for clear visibility from a distance. This gage utilizes a pressure sensor with a range of 0 to 10" w.c., providing precise measurements of pressure drop across the air filter. By monitoring this pressure drop, you can determine the filter's condition and schedule timely maintenance, minimizing downtime and maximizing system performance. The Dwyer Instruments 250-AF Air Filter Gage is an invaluable asset for maintaining optimal airflow and energy efficiency in industrial facilities. Contact our HVAC supply store for the best prices and fast shipping on this essential monitoring tool!

Series 250-AF Inclined Manometer Air Filter Gages

Precision Machined, Solid Acrylic Plastic Gages, Accurate To ±1% Of Full Scale

Dwyer® Durablock® Series 250-AF Inclined Manometer Air Filter Gages are precisionmachined 1" thick solid acrylic plastic, virtually unbreakable and free of distortion. Thefluid bore is precision drilled to ±.0002" to assure life-long accuracy. A glass spirit levelis built into the body and encapsulated to prevent damage or tampering. The scale ismirror polished chrome plated brass to assure parallax free reading by alignment ofthe meniscus with its reflection. Safety traps are incorporated in the body to preventloss of fluid due to pressure surges. Red and green signal flags indicate clearly whena filter change is necessary. Gages are suitable for use in ambient temperatures of -20to 150°F. Connection fittings are positively sealed but easily removed for zeroing oraddition of fluid.

Economy Model 452-AF is similar to the 250 Series except they are not equippedwith over pressure traps. Two A-324 1/4" compression fittings are included with eachgage but not shown. Bodies are of 5/8" thick acrylic and scales are mirror polished,epoxy coated aluminum.

Click here, if you require a Safety Data Sheet for the Red Gage Fluid.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Air filter gage

High accuracy and easy to use, making it a dependable device for many years of service
Easy to read polished inclined scale allows minute pressure differences to be read
No moving parts mean no calibration or nothing to wear out
