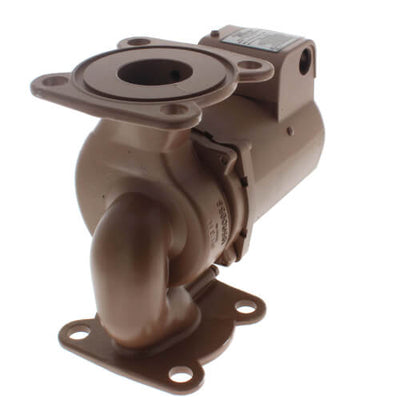

2400-70S/3-3P | Circulator Pump | Stainless Steel | 1/2 HP | 115V | Single Phase | 4.9A | 3450 RPM | Flanged 3" | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400 | Taco

1/2hp 115v1ph CI CircPump SSThe NCO-2400-70S-3-3P-TACO pump from Taco is a 1/2hp, 115v1ph, cast iron circulator pump with a 3/3P flange. It is ideal for use in commercial and industrial applications where a reliable and efficient circulator pump is required.The NCO-2400-70S-3-3P-TACO pump features a cast iron construction for durability and long life. It is also equipped with a stainless steel shaft for corrosion resistance. The pump has a maximum flow rate of 24 gpm and a maximum head of 70 feet. It is also self-priming up to 10 feet.Shop now at our HVAC supply store for the best prices and fast shipping on all your industrial supplies!

For Medium-to-High Flow/Head Application

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, stainless steel shaft, Noryl^®impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability. Available in Cast Iron or Stainless Steel construction.

Performance Data

Features

Applications

Taco Stainless Steel 2400 Series Circulator Pump - 1/2 HP, 3" Flange Connection, 4 bolt.

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The spacesaving, close-coupled, maintenance free motor with permanently lubricated, sealed-for- life bearings, Noryl® impeller and durable, carbon/silicon-carbide mechanical sealprovide unmatched reliability.

The compact 2400 Series High Capacity Circulators are for use in a wide range of larger residential and commercial hydronic systems. Typical applications include hydronic heating, in-floor radiant, snow melt, high pressure drop boilers, outdoor wood boilers, chilled water cooling, geothermal heat pumps, primary/secondary loops and hydro air fan coils. The Stainless Steel 2400 Series should be used for open, domestic water recirculation systems. The unitized, carbon/silicon-carbide mechanical seal is easy to service in only a few minutes.

Features:

• Compact, space saving design
• Powerful close-coupled, maintenance free motor
• Superior efficiency, high starting torque
• Permanently lubricated, sealed for life bearings
• Rugged 1/2" Stainless Steel Shaft
• Carbon/Silicon-Carbide mechanical seal for long life
• Universal flange to flange dimensions - Ideal for retrofits
• Anti-Condensate design for chilled water
• Dual electrical knock-outs
• Dual pressure taps, suction/discharge
