2400-70/3-3P | Circulator Pump | Cast Iron | 1/2 HP | 115V | Single Phase | 4.9A | 3450 RPM | Flanged | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400 | Taco

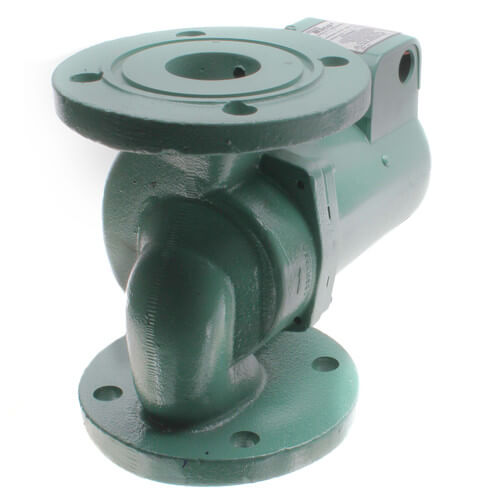

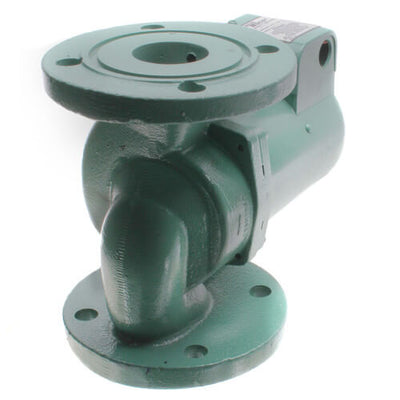

Taco 2400-70/3-3P 1/2HP 115V1PH Cast Iron Circulator Pump The Taco 2400-70/3-3P is a compact and energy-efficient circulator pump designed for both residential and commercial applications. It is constructed with a durable cast iron housing and a corrosion-resistant stainless steel impeller for long-lasting performance. With a flow rate of up to 30 GPM and a maximum head of 23 feet, it is suitable for a wide range of pumping applications, including hydronic heating systems, radiant floor heating, and domestic hot water recirculation. The 2400-70/3-3P features a 1/2 horsepower motor that operates on a single-phase 115-volt power supply. It is equipped with a permanently lubricated motor bearing for maintenance-free operation and a manual reset thermal overload protector to prevent damage from overheating. The pump has a compact design with a 3-inch diameter and a weight of only 14 pounds, making it easy to install and maintain. Taco is a leading manufacturer of pumps and accessories for the HVAC industry, known for their reliability and efficiency. The 2400-70/3-3P circulator pump is a durable and dependable choice for various pumping applications. Shop now at our HVAC supply store for the best prices and fast shipping on your HVAC products!

For Medium-to-High Flow/Head Application

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, stainless steel shaft, Noryl^®impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability. Available in Cast Iron or Stainless Steel construction.

Performance Data

Features

Applications

Taco Cast Iron 2400 Series Circulator Pump - 1/2 HP, 3" Flange Connection, 4 bolt.

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The spacesaving, close-coupled, maintenance free motor with permanently lubricated, sealed-for- life bearings, Noryl® impeller and durable, carbon/silicon-carbide mechanical sealprovide unmatched reliability.

The compact 2400 Series High Capacity Circulators are for use in a wide range of larger residential and commercial hydronic systems. Typical applications include hydronic heating, in-floor radiant, snow melt, high pressure drop boilers, outdoor wood boilers, chilled water cooling, geothermal heat pumps, primary/secondary loops and hydro air fan coils. The Stainless Steel 2400 Series should be used for open, domestic water recirculation systems. The unitized, carbon/silicon-carbide mechanical seal is easy to service in only a few minutes.

Features:

• Compact, space saving design
• Powerful close-coupled, maintenance free motor
• Superior efficiency, high starting torque
• Permanently lubricated, sealed for life bearings
• Rugged 1/2" Stainless Steel Shaft
• Carbon/Silicon-Carbide mechanical seal for long life
• Universal flange to flange dimensions - Ideal for retrofits
• Anti-Condensate design for chilled water
• Dual electrical knock-outs
• Dual pressure taps, suction/discharge
