2400-65-3P | Circulator Pump | Cast Iron | 1/3 HP | 115V | Single Phase | 3.6A | 3450 RPM | Flanged | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400 | Taco

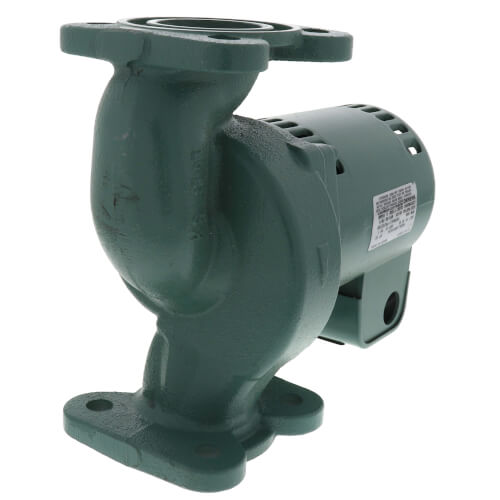

The Taco 2400-65-3P is a 1/3 HP, 115V, 3450 RPM cast iron circulating pump. It is designed for use in residential and commercial heating and cooling systems. The pump features a heavy-duty cast iron construction for durability and long life. It also has a built-in thermal overload protector to prevent damage from overheating. The Taco 2400-65-3P is a powerful and reliable pump that is ideal for a variety of applications.Our HVAC supply store - We offer the best prices and fast shipping for your products!

For Medium-to-High Flow/Head Application

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, stainless steel shaft, Noryl^®impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability. Available in Cast Iron or Stainless Steel construction.

Performance Data

Features

Applications

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The spacesaving, close-coupled, maintenance free motor with permanently lubricated, sealed-for- life bearings, Noryl® impeller and durable, carbon/silicon-carbide mechanical sealprovide unmatched reliability.

The compact 2400 Series High Capacity Circulators are for use in a wide range of larger residential and commercial hydronic systems. Typical applications include hydronic heating, in-floor radiant, snow melt, high pressure drop boilers, outdoor wood boilers, chilled water cooling, geothermal heat pumps, primary/secondary loops and hydro air fan coils. The Stainless Steel 2400 Series should be used for open, domestic water recirculation systems. The unitized, carbon/silicon-carbide mechanical seal is easy to service in only a few minutes.

Features:

• Compact, space saving design
• Powerful close-coupled, maintenance free motor
• Superior efficiency, high starting torque
• Permanently lubricated, sealed for life bearings
• Rugged 1/2" Stainless Steel Shaft
• Carbon/Silicon-Carbide mechanical seal for long life
• Universal flange to flange dimensions - Ideal for retrofits
• Anti-Condensate design for chilled water
• Dual electrical knock-outs
• Dual pressure taps, suction/discharge
