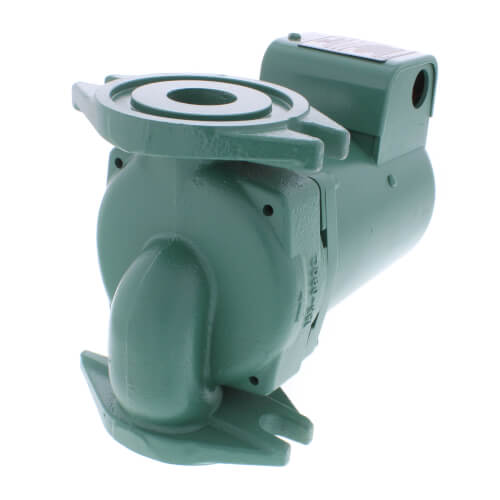

2400-50/2-3P | Circulator Pump | Cast Iron | 1/2 HP | 115V | Single Phase | 4.9A | 3450 RPM | Flanged | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400 | Taco

The Taco NCO-2400-50-2-3P-Taco pump is a 1/2HP, 115V circulation pump with a 2" flange. It is made of cast iron and is suitable for use in both residential and commercial applications. The pump has a flow rate of up to 50 gallons per minute and a maximum head of 20 feet. It is also self-priming and features a built-in strainer. The Taco NCO-2400-50-2-3P-Taco pump is a versatile and reliable choice for a wide range of applications, including: * Hydronic heating systems * Solar heating systems * Geothermal heating systems * Domestic hot water recirculation systems * Industrial process applications The pump is backed by Taco's 1-year warranty. Our HVAC supply store offers the best prices and fast shipping on all of our products. Shop now!

For Medium-to-High Flow/Head Application

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, stainless steel shaft, Noryl^®impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability. Available in Cast Iron or Stainless Steel construction.

Performance Data

Features

Applications

Taco Cast Iron 2400 Series Circulator Pump - 1/2 HP, 2" Flange Connection, 2 bolt.

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The spacesaving, close-coupled, maintenance free motor with permanently lubricated, sealed-for- life bearings, Noryl® impeller and durable, carbon/silicon-carbide mechanical sealprovide unmatched reliability.

The compact 2400 Series High Capacity Circulators are for use in a wide range of larger residential and commercial hydronic systems. Typical applications include hydronic heating, in-floor radiant, snow melt, high pressure drop boilers, outdoor wood boilers, chilled water cooling, geothermal heat pumps, primary/secondary loops and hydro air fan coils. The Stainless Steel 2400 Series should be used for open, domestic water recirculation systems. The unitized, carbon/silicon-carbide mechanical seal is easy to service in only a few minutes.

Features:

• Compact, space saving design
• Powerful close-coupled, maintenance free motor
• Superior efficiency, high starting torque
• Permanently lubricated, sealed for life bearings
• Rugged 1/2" Stainless Steel Shaft
• Carbon/Silicon-Carbide mechanical seal for long life
• Universal flange to flange dimensions - Ideal for retrofits
• Anti-Condensate design for chilled water
• Dual electrical knock-outs
• Dual pressure taps, suction/discharge
