2400-10S-3P | Circulator Pump | Stainless Steel | 1/10 HP | 115V | Single Phase | 1.4A | 3450 RPM | Flanged | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400 | Taco

1/10 HP Taco 3450 RPM Circulating Pump (2400-10S-3P) The Taco 2400-10S-3P is a 1/10 HP, single-phase, 3450 RPM circulator pump designed for residential and commercial hydronic heating systems. It features a stainless steel construction for corrosion resistance and durability, and a compact design for easy installation in tight spaces. The 2400-10S-3P has a maximum flow rate of 10 GPM, a maximum head of 25 feet, and can operate on 115 volts. Applications: - Residential and commercial hydronic heating systems - Radiant floor heating systems - Baseboard heating systems - Towel warmers - Domestic hot water recirculation systems Features and Benefits: - Stainless steel construction for corrosion resistance and durability - Compact design for easy installation in tight spaces - Maximum flow rate of 10 GPM - Maximum head of 25 feet - Operates on 115 volts Shop our HVAC supply store today for the best prices and fast shipping on the Taco 2400-10S-3P and other Taco products!

For Medium-to-High Flow/Head Application

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, stainless steel shaft, Noryl^®impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability. Available in Cast Iron or Stainless Steel construction.

Performance Data

Features

Applications

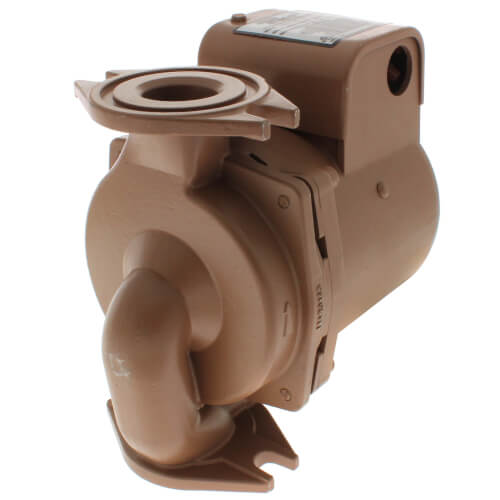

NOTE: Image is shown in Cast Iron.

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The spacesaving, close-coupled, maintenance free motor with permanently lubricated, sealed-for- life bearings, Noryl® impeller and durable, carbon/silicon-carbide mechanical sealprovide unmatched reliability.

The compact 2400 Series High Capacity Circulators are for use in a wide range of larger residential and commercial hydronic systems. Typical applications include hydronic heating, in-floor radiant, snow melt, high pressure drop boilers, outdoor wood boilers, chilled water cooling, geothermal heat pumps, primary/secondary loops and hydro air fan coils. The Stainless Steel 2400 Series should be used for open, domestic water recirculation systems. The unitized, carbon/silicon-carbide mechanical seal is easy to service in only a few minutes.

Features:

• Compact, space saving design
• Powerful close-coupled, maintenance free motor
• Superior efficiency, high starting torque
• Permanently lubricated, sealed for life bearings
• Rugged 1/2" Stainless Steel Shaft
• Carbon/Silicon-Carbide mechanical seal for long life
• Universal flange to flange dimensions - Ideal for retrofits
• Anti-Condensate design for chilled water
• Dual electrical knock-outs
• Dual pressure taps, suction/discharge
