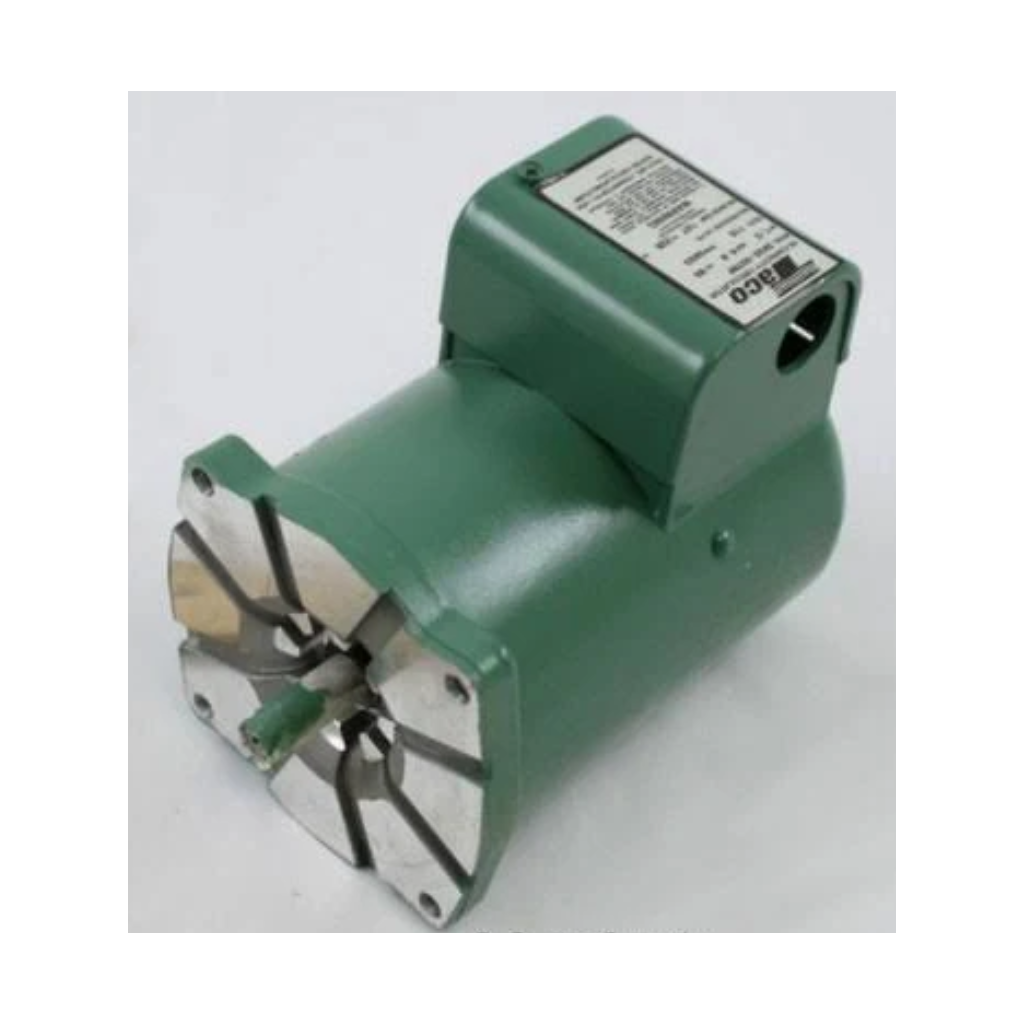

2400-006RP | 1/6 HP Motor for 2400 Series Pumps (115V) | Taco

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 2400-006RP

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco 2400-006RP Documents

Datasheet More Info

Overview

Details for 2400-006RP

1/6hp 115v 1ph Motor Taco NCO-2400-006RP The Taco NCO-2400-006RP is a reliable and efficient 1/6 horsepower, 115-volt, single-phase motor designed for industrial applications. This motor is built with a rugged cast iron frame and high-quality components to ensure durability and long-lasting performance. The NCO-2400-006RP features a 115-volt single-phase power supply, making it suitable for various industrial applications. This motor delivers a speed of 1725 RPM, providing ample power for driving pumps, fans, and other industrial equipment. Additionally, the motor is equipped with a capacitor start design, ensuring smooth and reliable operation. Shop now at our HVAC supply store for the best prices and fast shipping on Taco motors and other industrial products!

For Medium-to-High Flow/Head Application

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, stainless steel shaft, Noryl^®impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability. Available in Cast Iron or Stainless Steel construction.

Performance Data

Flow Range: 0 – 90 GPM
Head Range: 0′ – 46′
Max. Fluid Temp: 225°F (107°C)
Min. Fluid Temp: 40°F (4°C)
Max. Working Pressure: 150 PSI
HP: ½, 1/3, 1/6, 1/10
Connection Sizes : ¾” – 3″

Features

Compact, space saving design
Powerful close-coupled, maintenance free motor
Superior efficiency, high starting torque
Permanently lubricated, sealed for life bearings
Rugged ½ ” Stainless Steel Shaft
Carbon/Silicon-Carbide mechanical seal for long life
Universal flange to flange dimensions — Ideal for retrofits
Anti-Condensate design for chilled water
Dual electrical knock-outs
Dual pressure taps, suction/discharge

Applications

Hydronic heating
In-Floor Radiant
Snow Melt
High Pressure Drop Boilers
Outdoor Wood Boilers
Chilled Water Cooling
Geothermal Heat Pumps
Primary/Secondary Loops
Hydro Air Fan Coils
Domestic Water Recirculation Systems

For models 2400-20, 2400-30, 2400-40, and 2400-60
